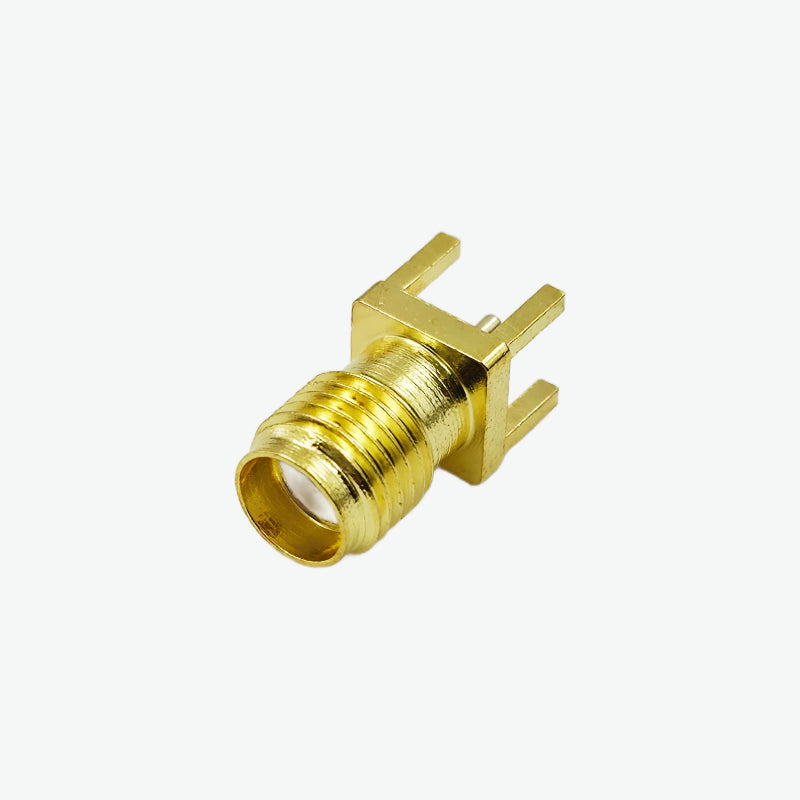

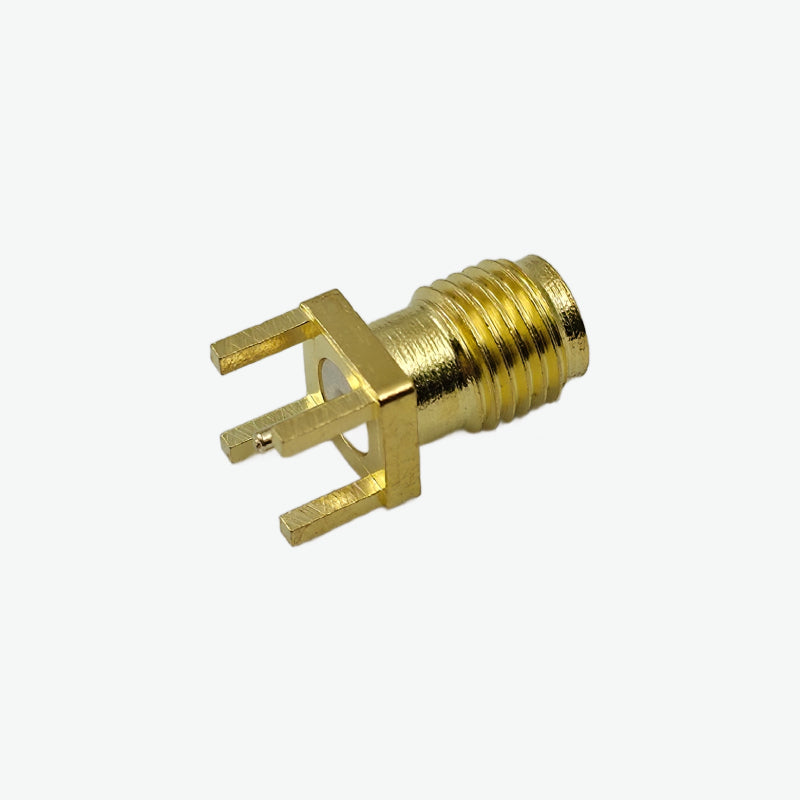

RF 6GHz Female SMA-K Q4 DIP Connector for Antenna
SKU:
CNX-QC3631
Availability:
90
In Stock
- Rs. 52.00
- Rs. 52.00
- Unit price
- per
Subtotal:
Rs. 52.00
Description
xThe RF 6GHz Female SMA-K Q4 DIP Connector provides precise and low-loss performance for RF transmit and receiver systems. Designed for high-frequency communication modules and embedded boards, this connector ensures stable impedance, minimal signal loss, and reliable integration in compact RF applications.
Features:
- Supports wide frequency range from DC to 6000 MHz
- Low insertion loss of 0.25 dB for high signal integrity
- Excellent impedance control with ≤1.3 VSWR
- Durable copper construction with stable mechanical strength
- DIP mounting design for firm and reliable PCB connection
Specifications:
- Model: AHCG.201
- Frequency: DC ~ 6000 MHz
- Impedance: 50 Ω
- VSWR: ≤ 1.3
- Insertion Loss: 0.25 dB
- Connector Type: SMA-K
- Material & Color: Copper
- Mounting Type: DIP
- Size: 6 × 13.5 mm
- Weight: 1.4 g
- Operating Temperature: −40 °C ~ +85 °C
Package Includes:
1 × RF 6GHz Female SMA-K Q4 DIP Connector for Antenna
