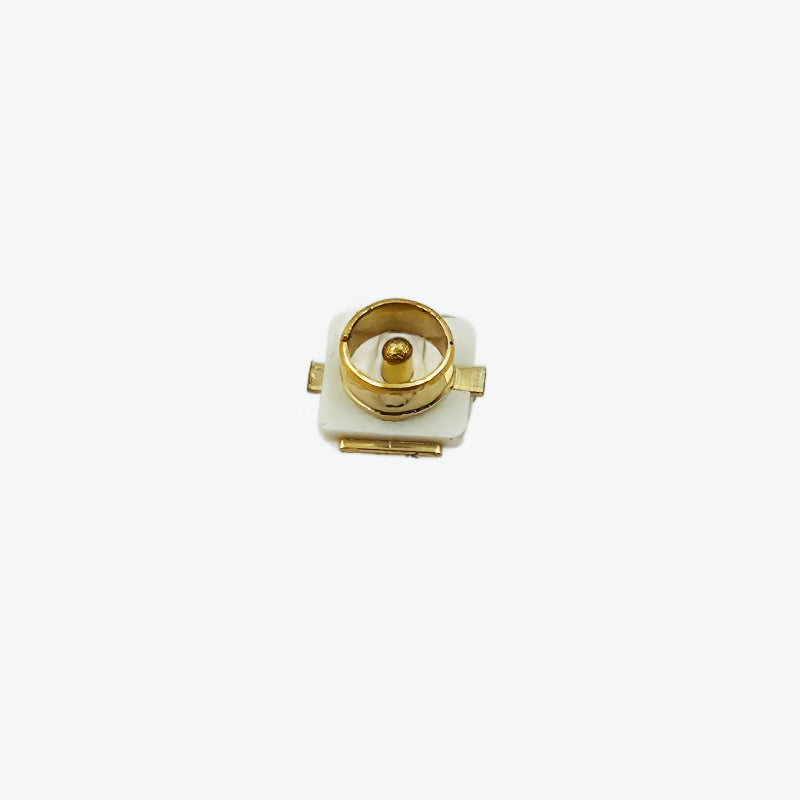

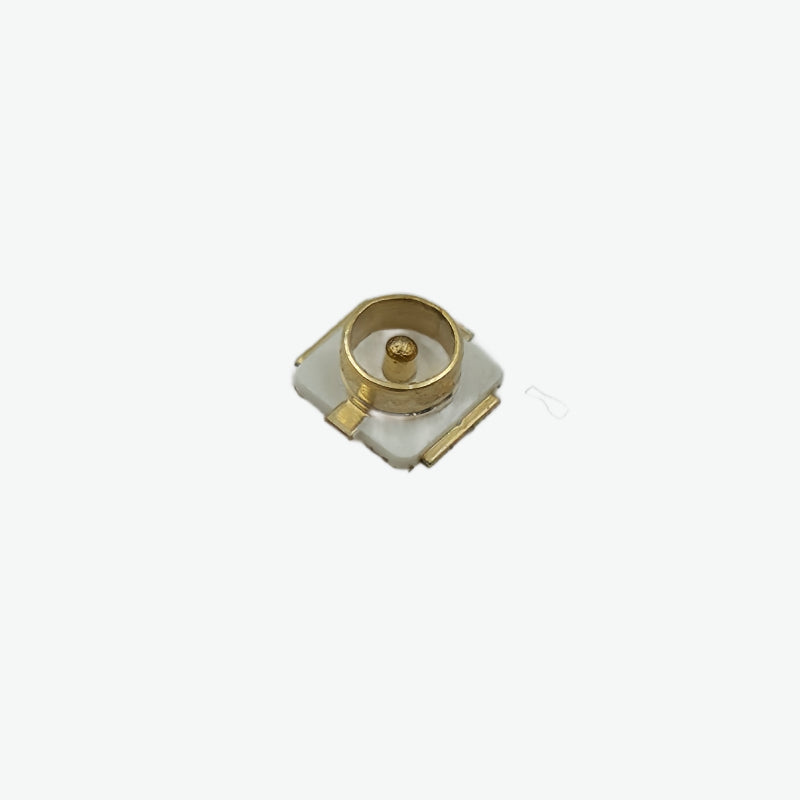

The RF 6GHz IPX G1 SMD Connector delivers reliable high-frequency performance for RF transmit and receiver systems. Designed for compact circuit integration, this connector ensures low-loss, stable connections, making it ideal for IoT devices, wireless modules, and communication boards requiring efficient RF signal transmission.
Features:
- Supports a wide frequency range from DC to 6000 MHz
- Low insertion loss of 0.15 dB for enhanced signal integrity
- Excellent VSWR ≤ 1.3 for stable impedance matching
- Durable copper construction ensures high conductivity and longevity
- Compact SMD design for seamless PCB mounting
Specifications:
- Model: AHCG.204
- Frequency: DC ~ 6000 MHz
- Impedance: 50 Ω
- VSWR: ≤ 1.3
- Insertion Loss: 0.15 dB
- Connector: IPX G1
- Material & Color: Copper
- Mounting Type: SMD
- Size: 2.6 × 1.25 mm
- Weight: 0.02 g
- Operating Temperature: −40 °C ~ +85 °C
Package Includes:
1 × RF 6GHz IPX G1 SMD Connector
