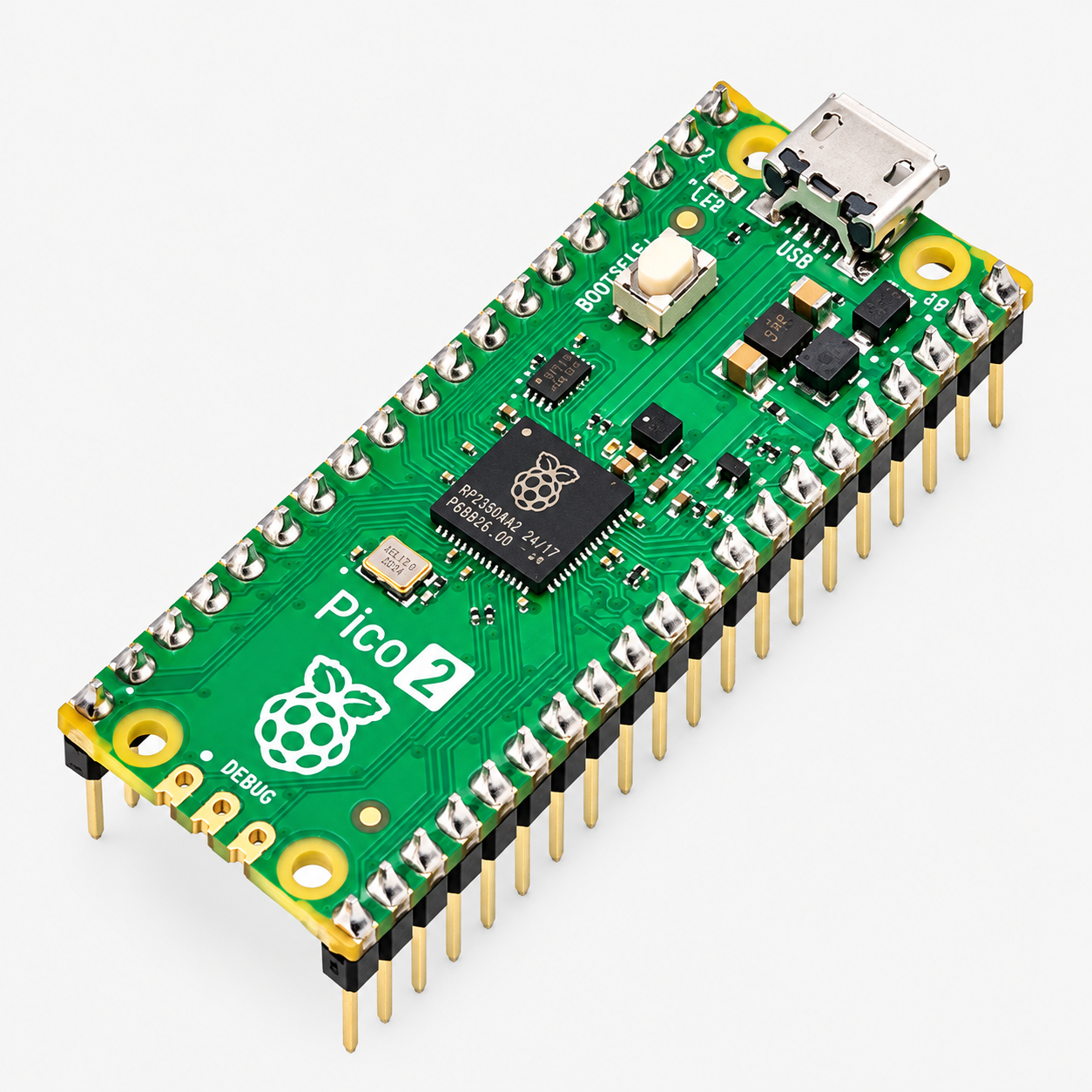

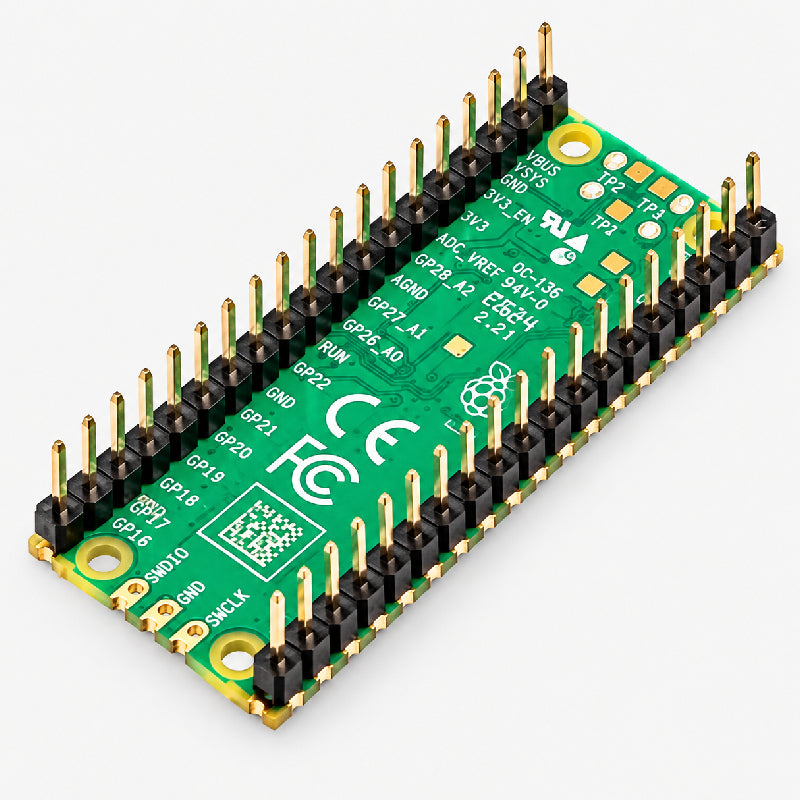

Raspberry Pi Pico 2 with Header Pins

Raspberry Pi Pico 2 with Header Pins is a high-performance microcontroller development board based on the Raspberry Pi RP2350 microcontroller. It features dual-core Arm Cortex-M33 or Hazard3 RISC-V processing at up to 150MHz, 520KB SRAM, 4MB onboard flash, 26 multifunction GPIO pins, USB 1.1, ADC, PWM, SPI, I2C, UART, and programmable I/O. This version comes with pre-soldered header pins, making it ready for breadboard use and easy connection to sensors, modules, displays, motors, and other electronic components.

Raspberry Pi Pico 2 with Header Pins Datasheet

Features:

1. Official Raspberry Pi Pico 2 with pre-soldered header pins.
2. Powered by the Raspberry Pi RP2350 microcontroller.
3. Dual-core Arm Cortex-M33 or dual-core Hazard3 RISC-V processor.
4. Up to 150MHz operating frequency.
5. 520KB high-performance SRAM.
6. 4MB onboard QSPI flash memory.
7. 26 multifunction GPIO pins.
8. 12-bit ADC with up to 500ksps conversion rate.
9. 24 PWM channels.
10. 2 × UART interfaces.
11. 2 × SPI interfaces.
12. 2 × I2C interfaces.
13. 3 PIO blocks with 12 programmable state machines.
14. USB 1.1 host and device support.
15. Built-in temperature sensor.
16. Low-power sleep and dormant modes.
17. Drag-and-drop programming through USB mass storage.
18. Pre-soldered headers for convenient breadboard and jumper-wire connections.
19. Compatible with Raspberry Pi Pico 1 hardware and software.
20. Suitable for robotics, IoT, automation, sensors, embedded systems, and DIY electronics.

Specifications:

Browse our full Raspberry Pi Collection including development boards, camera modules, displays, power supplies, HATs, and accessories designed for IoT, automation, robotics, and embedded systems.

Package Includes:

1 x Official Raspberry Pi Pico 2 with Pre-Soldered Header Pins (SC1632)
