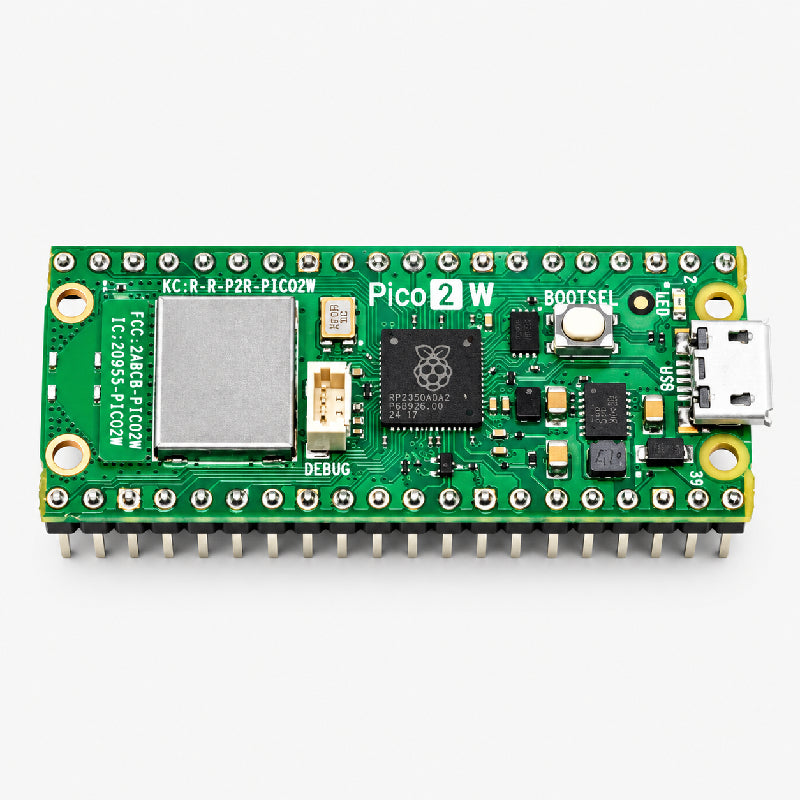

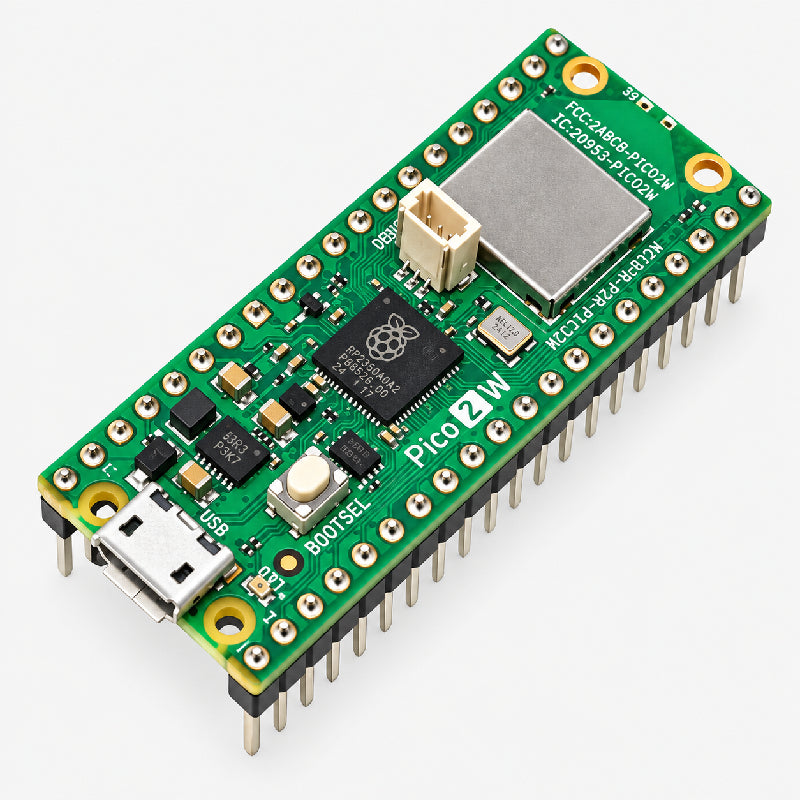

Raspberry Pi Pico 2 W with Header Pins

Raspberry Pi Pico 2 W with Header Pins is a wireless microcontroller development board based on the Raspberry Pi RP2350, combining high-performance microcontroller processing with 2.4GHz Wi-Fi and Bluetooth 5.2 connectivity. It features dual-core Arm Cortex-M33 or Hazard3 RISC-V processors running at up to 150MHz, 520KB SRAM, 4MB onboard flash, 26 multifunction GPIOs, USB 1.1, ADC, PWM, SPI, I2C, UART, and programmable I/O. The header-pin version comes with pre-soldered 2.54mm GPIO headers for convenient breadboard and jumper-wire connections, making it suitable for IoT, robotics, automation, wireless sensors, and embedded applications.

Raspberry Pi Pico 2 W with Header Pins Datasheet

Features:

1. Official Raspberry Pi Pico 2 W with pre-soldered header pins.
2. Powered by the Raspberry Pi RP2350 microcontroller.
3. Dual-core Arm Cortex-M33 or dual-core Hazard3 RISC-V processor.
4. Up to 150MHz operating frequency.
5. 520KB on-chip SRAM.
6. 4MB onboard QSPI flash memory.
7. 26 multifunction GPIO pins.
8. 12-bit, 500ksps ADC.
9. 2.4GHz single-band 802.11n Wi-Fi.
10. Bluetooth 5.2 with Bluetooth Low Energy support.
11. Onboard Infineon CYW43439 wireless chip.
12. Onboard antenna.
13. 2 × UART interfaces.
14. 2 × SPI interfaces.
15. 2 × I2C interfaces.
16. 24 × PWM channels.
17. 3 × PIO blocks with 12 programmable state machines.
18. USB 1.1 host and device support.
19. Built-in temperature sensor.
20. Programmable onboard LED.
21. Pre-soldered headers for easy breadboard and jumper-wire connection.
22. Supports C/C++ and MicroPython programming.
23. Suitable for IoT, robotics, automation, wireless sensors, smart devices, and DIY electronics.

Specifications:

Browse our full Raspberry Pi Collection including development boards, camera modules, displays, power supplies, HATs, and accessories designed for IoT, automation, robotics, and embedded systems.

Package Includes:

1 x Raspberry Pi Pico 2 W with Pre-Soldered Header Pins (SC1634)
