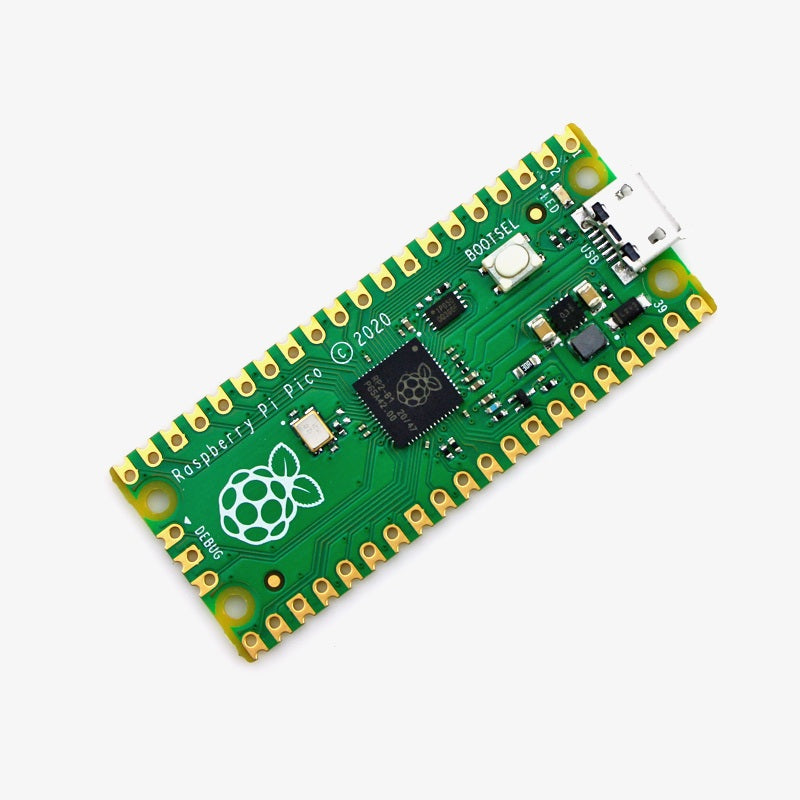

Raspberry Pi Pico

Raspberry Pi Pico Raspberry Pi Pico

SKU SKU QC0764

Availability Availability 22 In stock

The first microcontroller board of Raspberry Pi is Raspberry Pi Pico that specially designed for physical computing. Raspberry Pi Pico is built using RP2040 that features a dual-core Arm Cortex-M0+ processor with 264KB internal RAM and support for up to 16MB of off-chip Flash. It is a tiny, fast, and versatile board having a wide range of flexible I/O options including I2C, SPI, etc. It comes without header pins so, you have to purchase that separately. We can reprogram it easily over USB from a Raspberry Pi or other computer using the C/C++ SDK or the official MicroPython port.

Technical Specifications of PICO:

21 mm × 51 mm form factor
RP2040 microcontroller chip designed by Raspberry Pi in the UK
Dual-core Arm Cortex-M0+ processor, the flexible clock running up to 133 MHz
264KB on-chip SRAM
2MB onboard QSPI Flash
26 multifunction GPIO pins, including 3 analog inputs
2 × SPI controllers, 2 × UART, 16 × PWM channels, 2 × I2C controllers
1 × USB 1.1 controller and PHY, with host and device support
8 × Programmable I/O (PIO) state machines for custom peripheral support
Supported input power 1.8–5.5V DC
Operating temperature -20°C to +85°C
The castellated module allows soldering directly to carrier boards
Drag-and-drop programming using mass storage over USB
Low-power sleep and dormant modes
Accurate on-chip clock
Temperature sensor
Accelerated integer and floating-point libraries on-chip

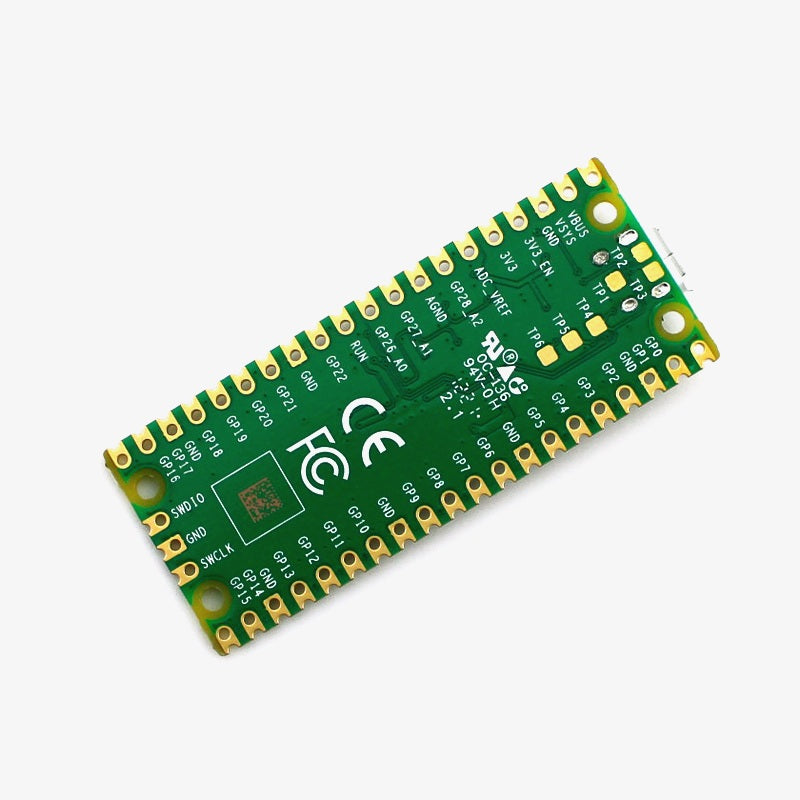

Raspberry Pi PICO Pinout:

Package Contains:

1 x Raspberry Pi Pico

Technical Specifications of PICO:

21 mm × 51 mm form factor
RP2040 microcontroller chip designed by Raspberry Pi in the UK
Dual-core Arm Cortex-M0+ processor, the flexible clock running up to 133 MHz
264KB on-chip SRAM
2MB onboard QSPI Flash
26 multifunction GPIO pins, including 3 analog inputs
2 × SPI controllers, 2 × UART, 16 × PWM channels, 2 × I2C controllers
1 × USB 1.1 controller and PHY, with host and device support
8 × Programmable I/O (PIO) state machines for custom peripheral support
Supported input power 1.8–5.5V DC
Operating temperature -20°C to +85°C
The castellated module allows soldering directly to carrier boards
Drag-and-drop programming using mass storage over USB
Low-power sleep and dormant modes
Accurate on-chip clock
Temperature sensor
Accelerated integer and floating-point libraries on-chip

Raspberry Pi PICO Pinout:

Package Contains:

1 x Raspberry Pi Pico
