Raspberry Pi Debug Probe

Brand: Raspberry Pi
SKU: DVB-QC2574
Availability: Out Of Stock
Rs. 1,008.00
Rs. 1,008.00
Subtotal: Rs. 1,008.00
Description
Description
x

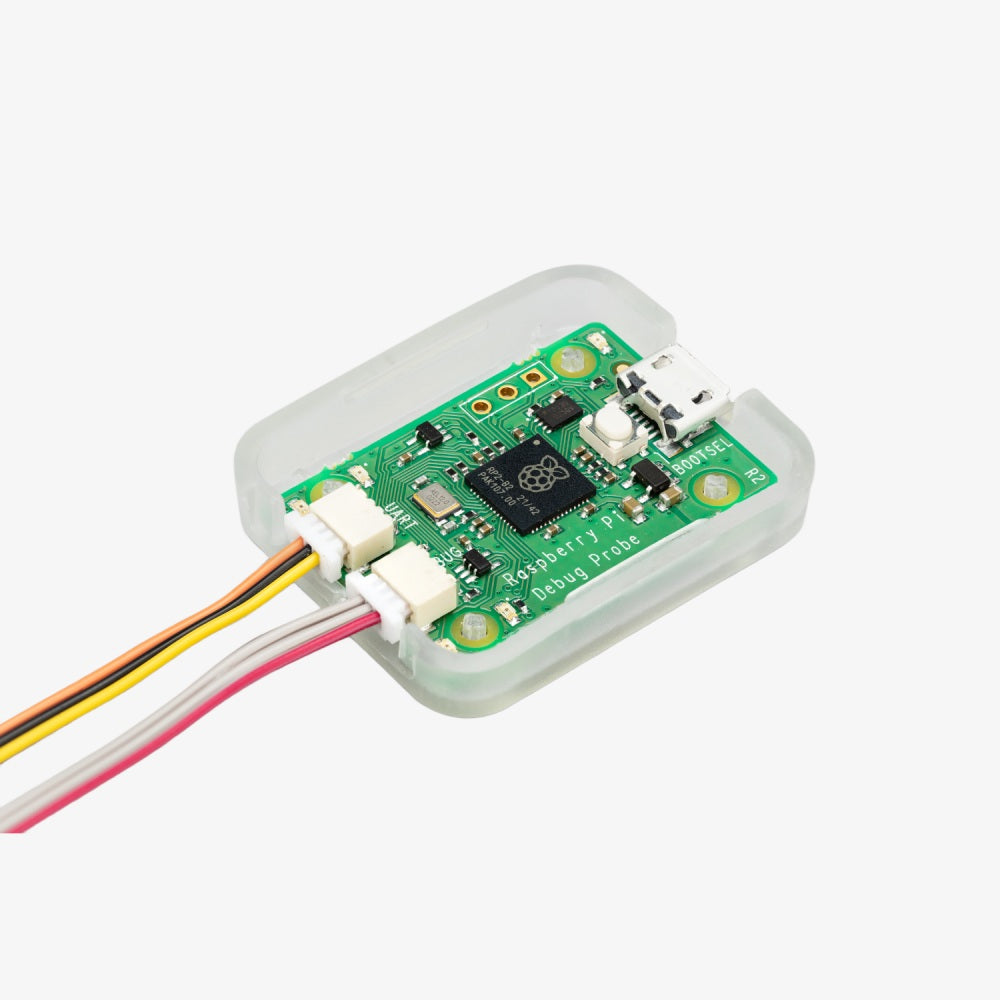

The Raspberry Pi Debug Probe is a USB device that provides both a UART serial port and a standard Arm Serial Wire Debug (SWD) interface. The probe is designed for easy, solderless, plug-and-play debugging.

While designed for use with Raspberry Pi products, the Debug Probe provides standard UART and CMSIS-DAP interfaces over USB, so it can also be used to debug any Arm-based microcontroller that provides an SWD port with 3V3 I/O, or even just as a USB-to-UART cable. It works with OpenOCD and other tools that support CMSIS-DAP. It has the following features:

  • USB to ARM Serial Wire Debug (SWD) port
  • USB to UART bridge
  • Compatible with the CMSIS-DAP standard
  • Works with OpenOCD and other tools supporting CMSIS-DAP
  • Open source, easily upgradeable firmware
  • The probe operates at 3.3V nominal I/O voltage.
