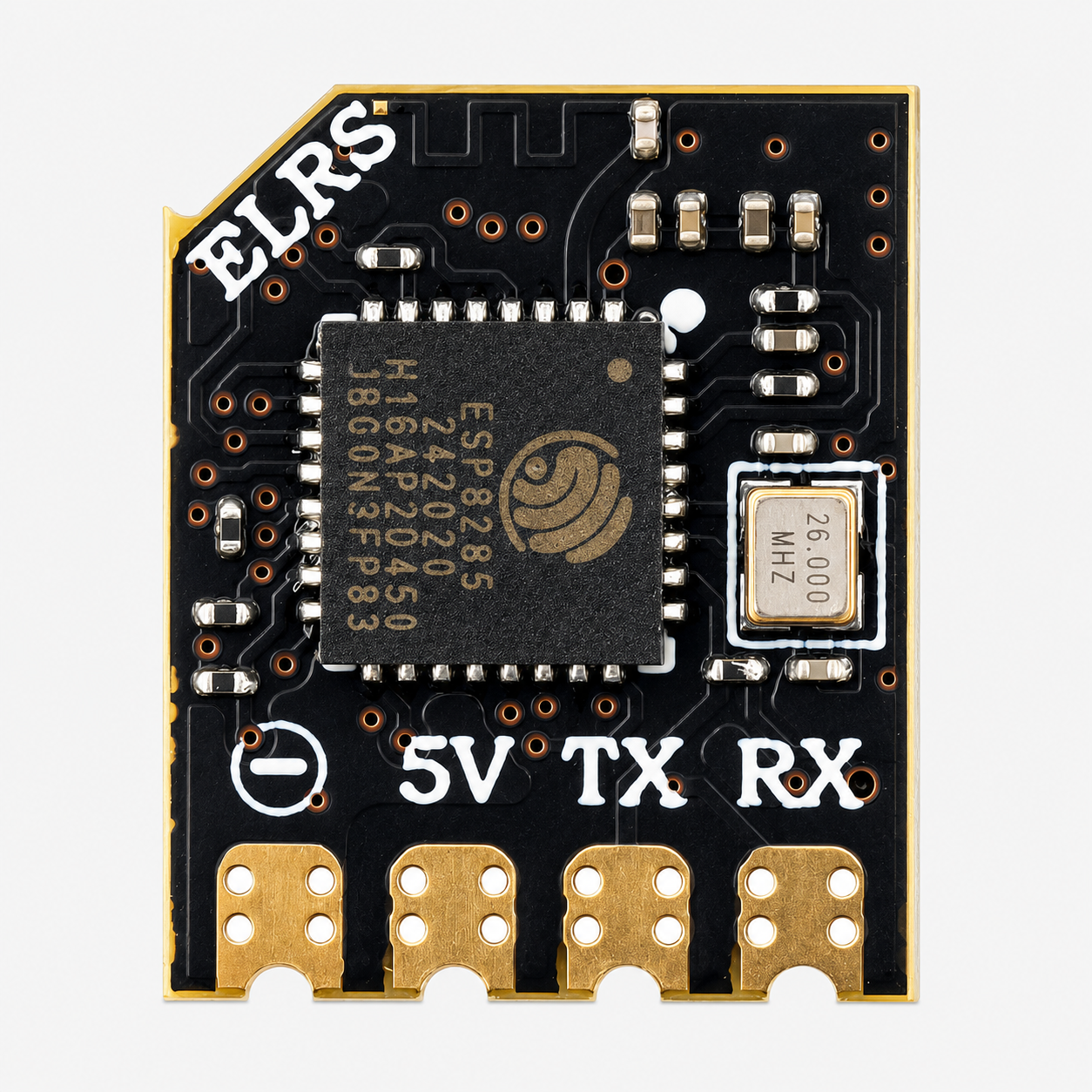

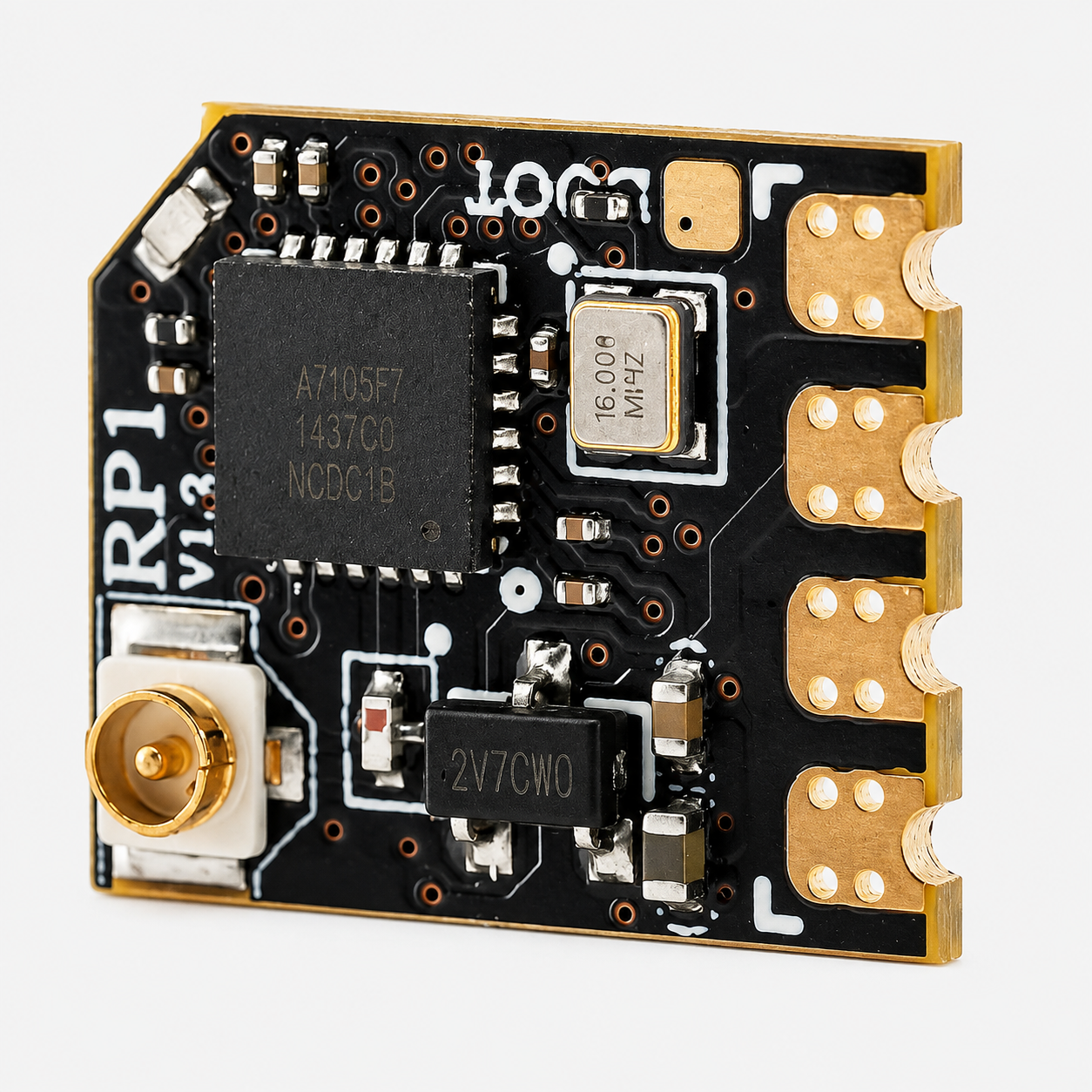

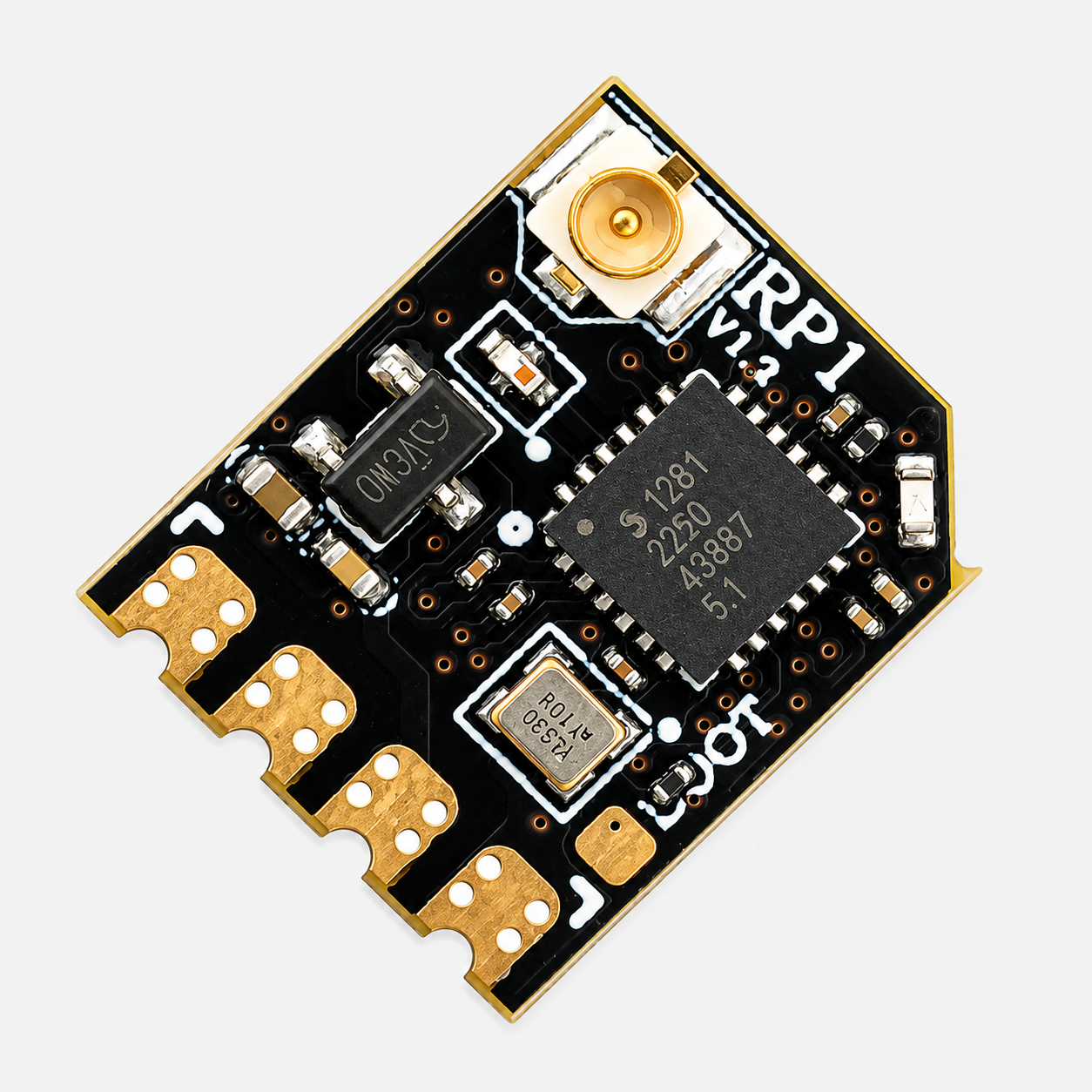

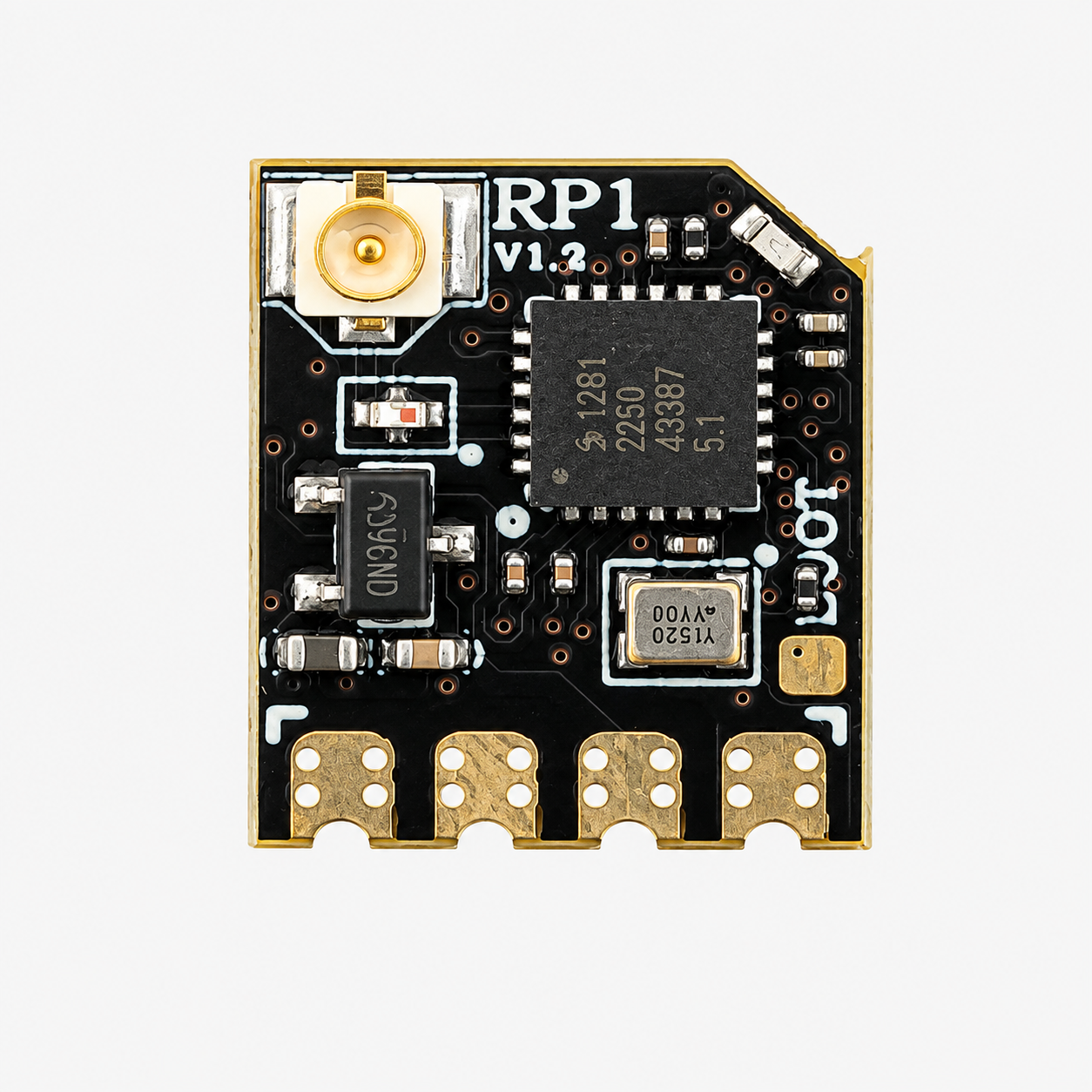

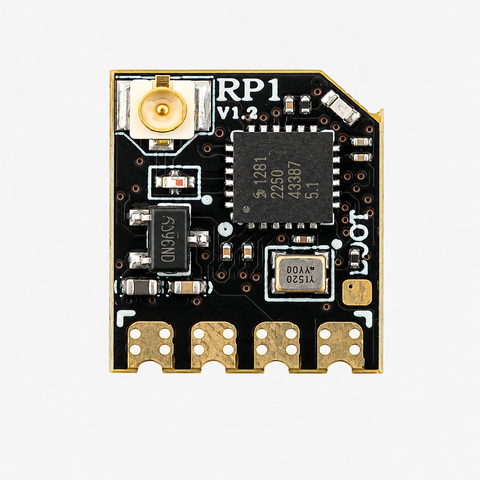

Radiomaster RP1 V2 ExpressLRS Nano Receiver
SKU:
MOD-QC6089
Availability:
5
In Stock
-
- Rs. 2,254.00
- Unit price
- per
Subtotal:
Rs. 2,254.00
Description
xRadioMaster RP1 V2 ExpressLRS Nano Receiver is a compact, high-performance 2.4GHz ExpressLRS receiver designed for FPV racing, freestyle, and long-range drone applications. Powered by the ESP8285 MCU and Semtech SX1281 RF chip, it features a built-in TCXO for superior frequency stability, integrated Wi-Fi for wireless firmware updates, and a U.FL connector with a 65mm T-antenna for reliable long-range signal reception. It is compatible with all 2.4GHz ExpressLRS transmitters and modules.
Radiomaster RP1 V2 ExpressLRS Nano Receiver Manual
Features:
- Built-in TCXO for highly stable and accurate signal reception.
- Compatible with all 2.4GHz ExpressLRS transmitters and modules.
- Integrated Wi-Fi for wireless firmware updates and WebUI configuration.
- High refresh rate for ultra-low latency control.
- ESP8285 MCU with Semtech SX1281 RF chip.
- U.FL connector with high-performance 65mm T-antenna.
- Compact nano-size design for easy installation.
- Improved PCB layout for better heat dissipation.
- Enhanced solder pads for easier wiring.
- Ideal for FPV racing, freestyle, long-range drones, and RC aircraft.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | ExpressLRS Nano Receiver |
| Model | RadioMaster RP1 V2 |
| Protocol | ExpressLRS (ELRS) 2.4GHz |
| MCU | ESP8285 |
| RF Chip | Semtech SX1281 |
| Frequency Range | 2.404 – 2.479GHz |
| Telemetry Power | 10mW |
| Antenna | 65mm 2.4GHz T-Antenna (U.FL) |
| Bus Interface | CRSF |
| Working Voltage | 5V DC |
| Maximum Refresh Rate | 500Hz / F1000Hz |
| Minimum Refresh Rate | 25Hz |
| Wireless Configuration | Wi-Fi WebUI |
| Firmware | ExpressLRS v2.4 (Pre-installed) |
| Dimensions | 13 × 11 × 3mm |
| Weight | 2.2g (Including Antenna) |
| Applications | FPV Racing Drones, Freestyle Drones, Long-Range UAVs, RC Aircraft, Multirotors |
Also Check These Out:
4CH 27MHZ Remote Transmitter & Receiver Board with Antenna
4CH 27MHZ Remote RF Transmitter & Receiver Board
Package Includes:
1 × RadioMaster RP1 V2 ExpressLRS Nano Receiver
1 × 65mm 2.4GHz T-Antenna
1 × CRSF Wire
