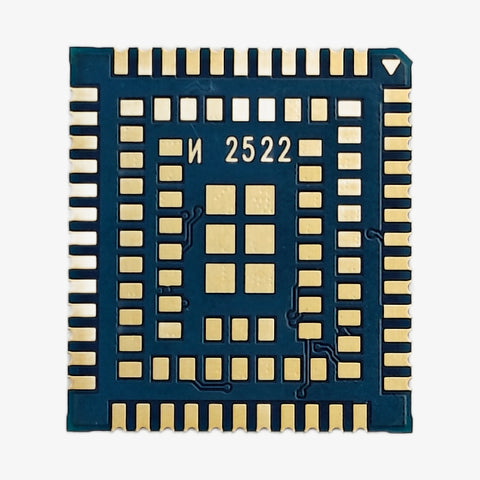

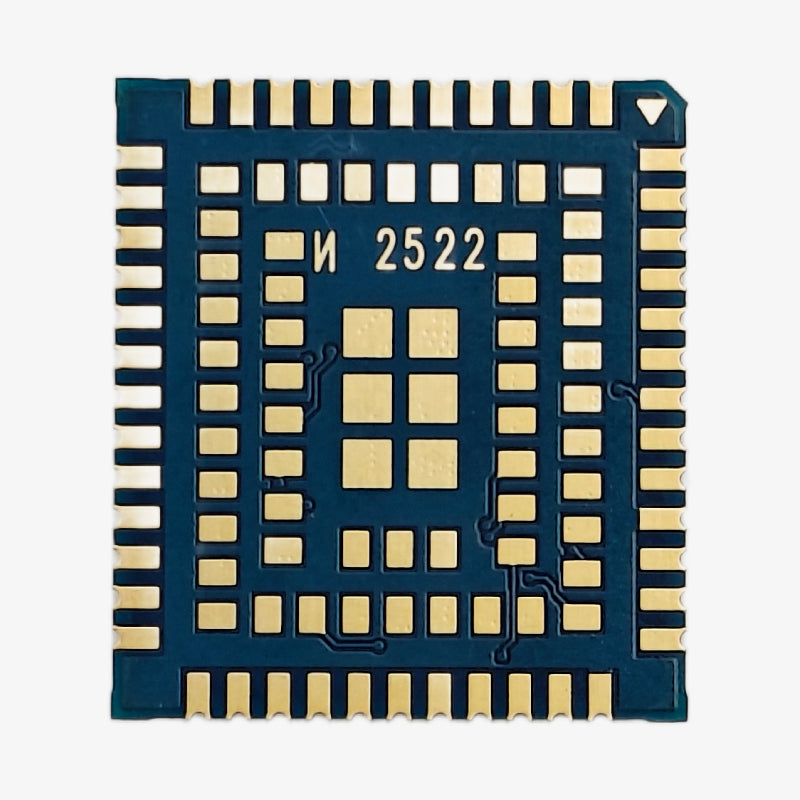

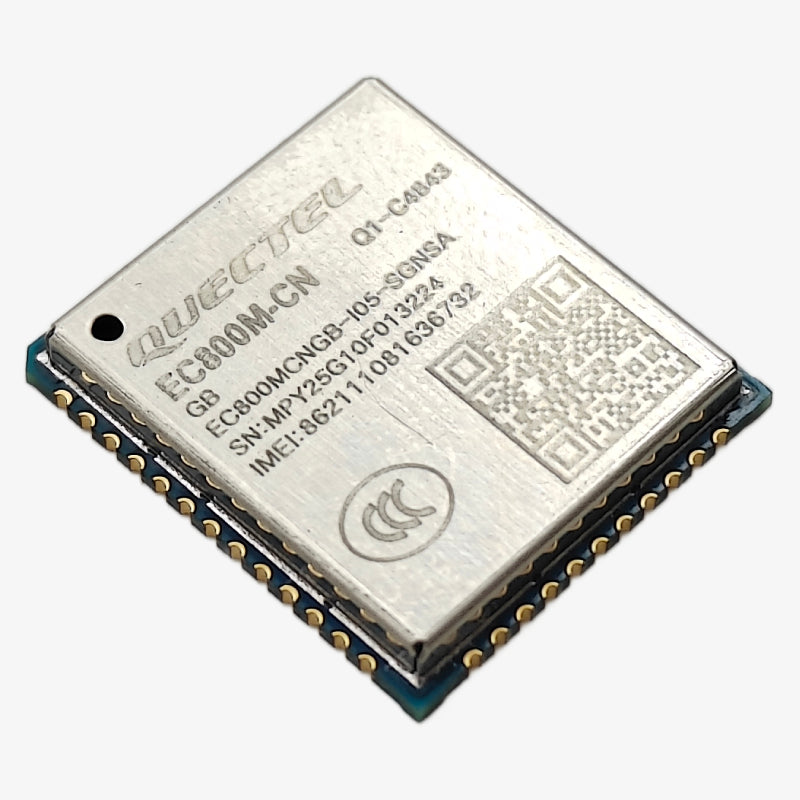

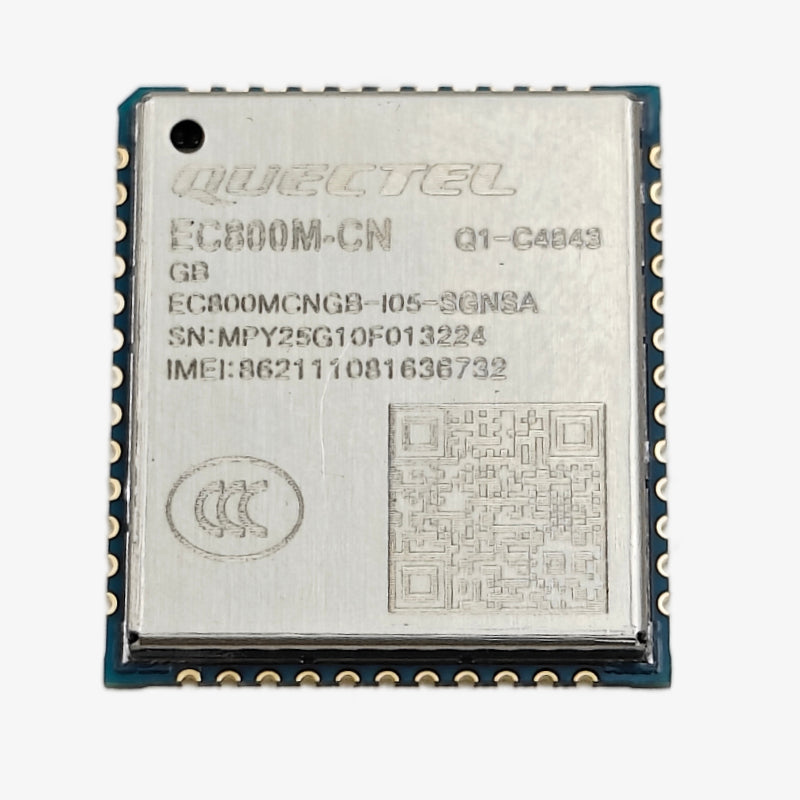

EC800M-CN GSM/GPRS Module (Quectel) - SMD Package

The Quectel EC800M-CN is a high-performance GSM/GPRS module specifically designed for machine-to-machine (M2M) and Internet of Things (IoT) applications that demand stable, long-range, and cost-effective cellular connectivity. Built in a compact LCC (Leadless Chip Carrier) form factor, this module is optimized for seamless integration into small, space-limited devices while maintaining strong performance and reliability. Its robust metal shielding not only improves resistance to electromagnetic interference (EMI) but also ensures long-term durability in industrial environments.The EC800M-CN supports quad-band GSM (850/900/1800/1900 MHz), allowing global deployment and operation across multiple network infrastructures. It enables reliable voice calls, SMS messaging, and GPRS data communication, making it suitable for various real-time and remote-control applications such as smart metering, GPS tracking, environmental monitoring, vending machines, and industrial automation systems.

Features of Quectel EC800M-CN:

1. Compact LCC package designed for easy PCB mounting in space-constrained devices.
2. Quad-band GSM connectivity for global communication compatibility.
3. Supports voice, SMS, and GPRS data transmission for versatile use cases.
4. Durable metal shielding to minimize EMI and protect the internal circuitry.
5. Integrated TCP/IP protocol stack for simplified application integration.
6. Low power consumption suitable for portable and solar-powered IoT devices.
7. Wide operating temperature range for use in demanding industrial and outdoor environments.
8. Multiple I/O interfaces including UART, SIM card interface, and GPIO for flexible connectivity.

Specifications of Quectel EC800M-CN:

• Communication Standard: GSM/GPRS
• Frequency Bands: Quad-band 850/900/1800/1900 MHz
• Data Transmission: GPRS multi-slot class 12, coding schemes CS-1 to CS-4
• Interfaces: UART, SIM card slot interface, GPIO
• Power Supply: 3.4V to 4.4V DC
• Operating Temperature: -40°C to +85°C
• Dimensions: 18.7 × 16.0 × 2.4 mm
• Mounting Type: SMD (LCC package)

Package Includes:

1 × Quectel EC800M-CN GSM/GPRS Module - SMD (LCC package)
