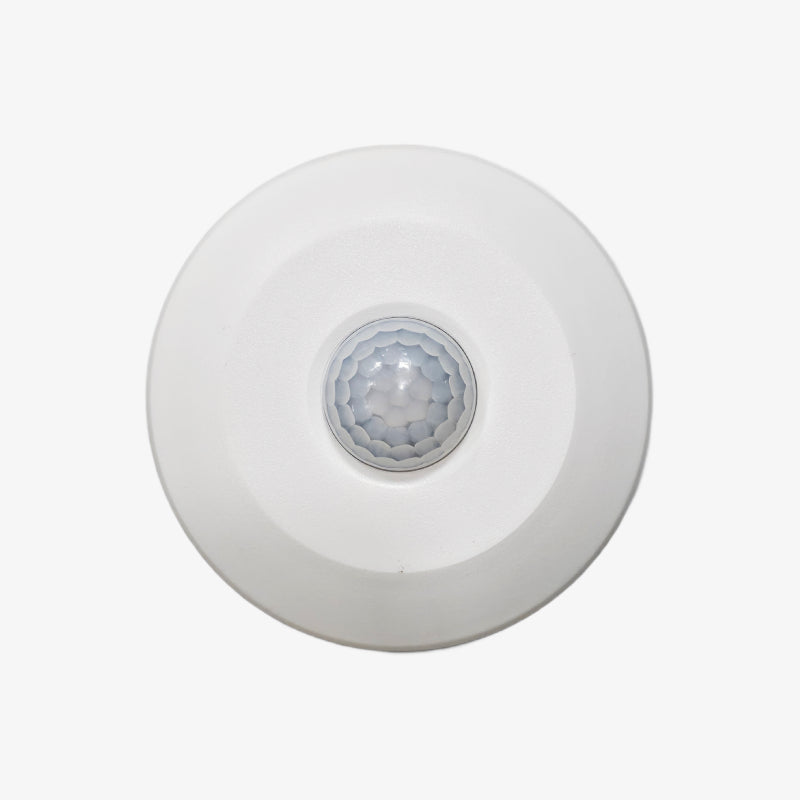

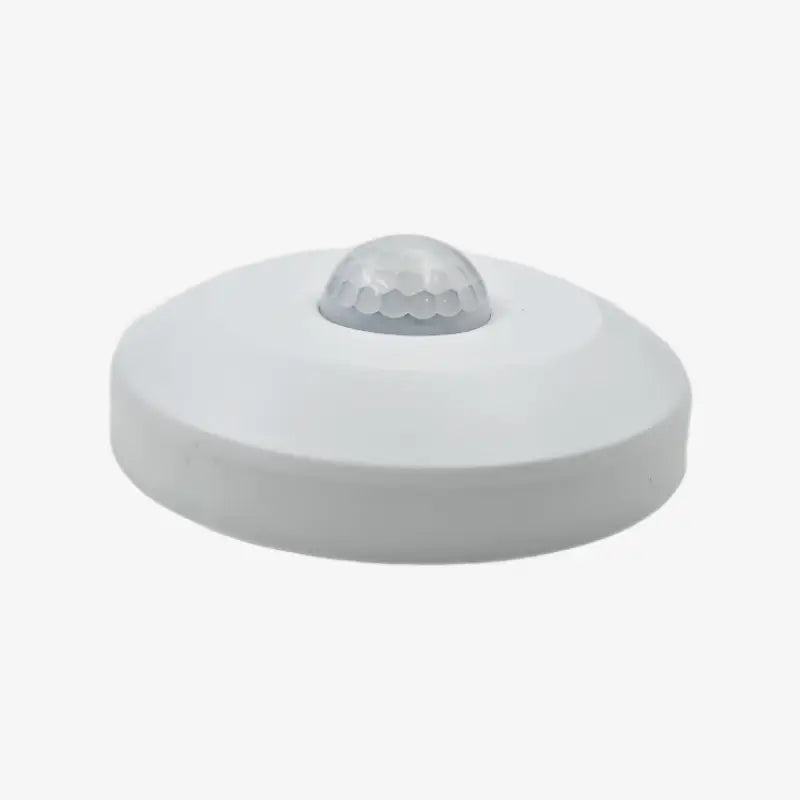

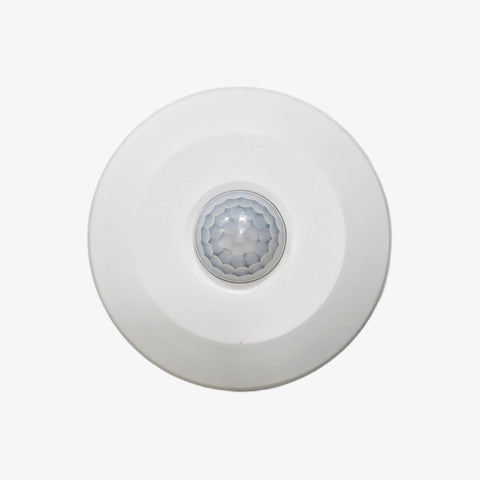

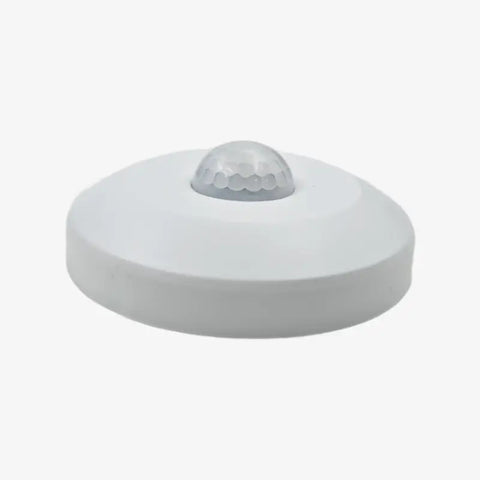

Human Infrared Ceiling Mount PIR Motion Sensor 220V - 240V AC 100W
SKU:
MOD-QC3707
Availability:
9
In Stock
- Rs. 355.00
- Rs. 355.00
- Unit price
- per
Subtotal:
Rs. 355.00
Description
xThe Human Infrared Ceiling Mount PIR Motion Sensor Module provides automatic motion-activated switching for lights and small appliances. Its infrared sensing detects human movement across a full 360° area with consistent accuracy. Adjustable delay and lux controls let you set exactly when the sensor should activate, keeping everyday use simple and efficient.
Features:
- Good sensitivity infrared detector with SMT IC.
- Automatically identifies day and night based on ambient light.
- Triggers load instantly when human motion is detected.
- Easy installation, wide usage and supports power indication and detection indication.
Specifications:
- Power Sourcing: 220V~240V AC
- Power Frequency: 50 Hz
- Ambient Light: <10~1000 LUX Adjustable
- Time Delay: Min 10sec±3 sec / Max 7 min±2min
- Rated Load: 100W Incandescent Lamp / 100W Energy-saving Lamp
- Detection Range: 360°
- Working Temperature: -20°C~+40°C
- Working Humidity: <93% RH
- Installing Height: 2.2~4 m
- Detection Motion Speed: 0.6~1.5 m/s
- Detection Distance: Max 6m (<24°C)
Package Includes:
1 × Human Infrared Ceiling Mount PIR Motion Sensor Module 220 - 240V AC 100W
