QFP/TQFP/LQFP/FQFP 32/44/64/80/100 LQF SMD to DIP Adapter PCB Board

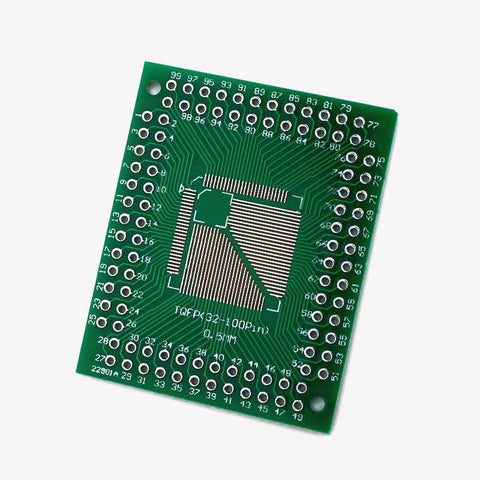

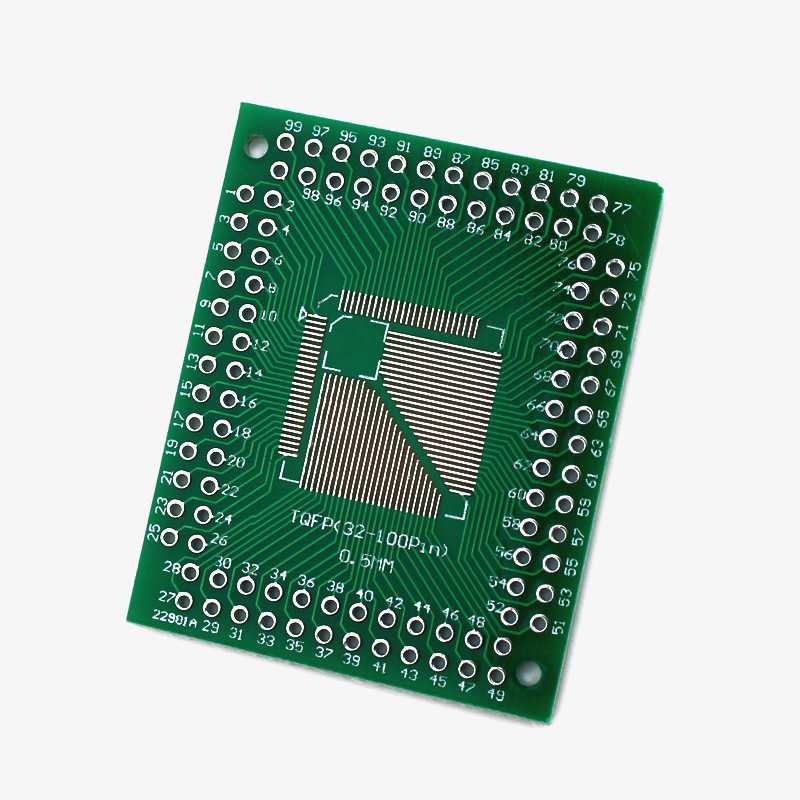

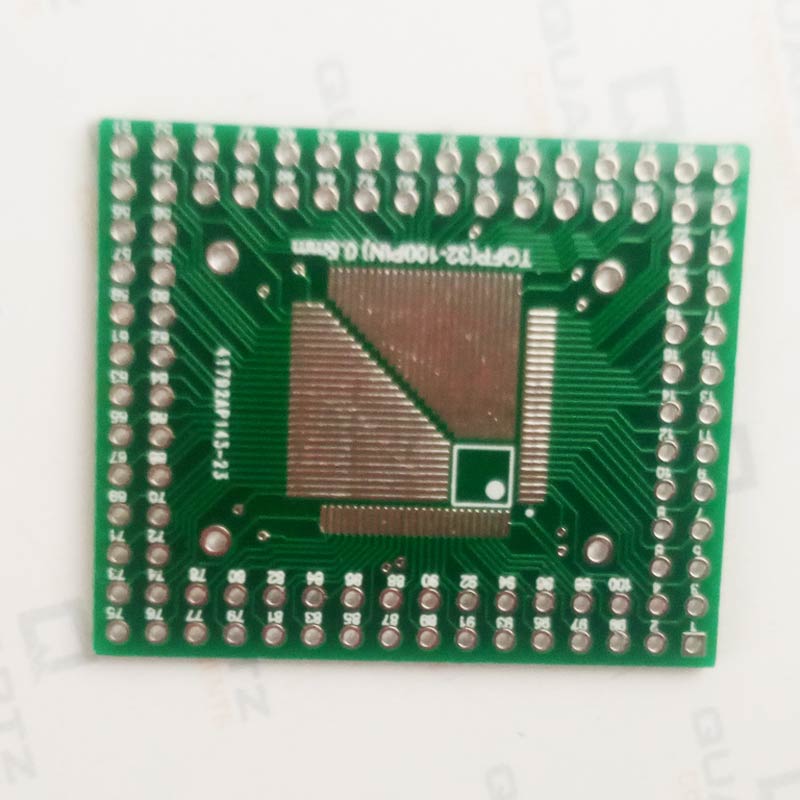

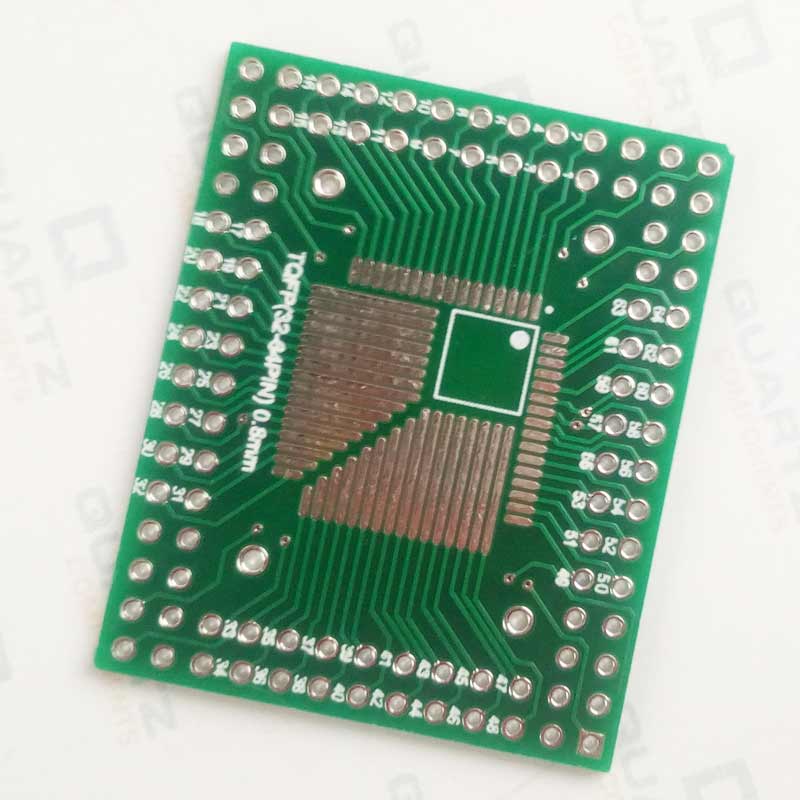

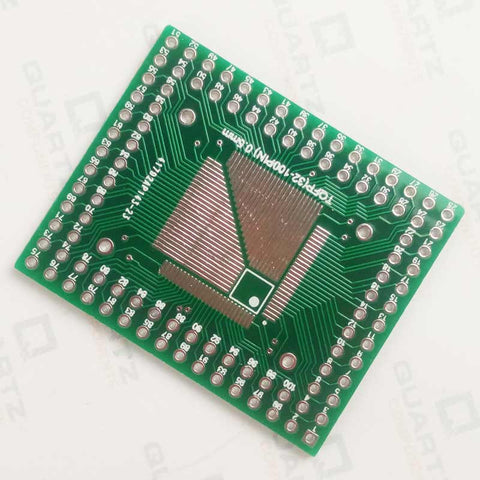

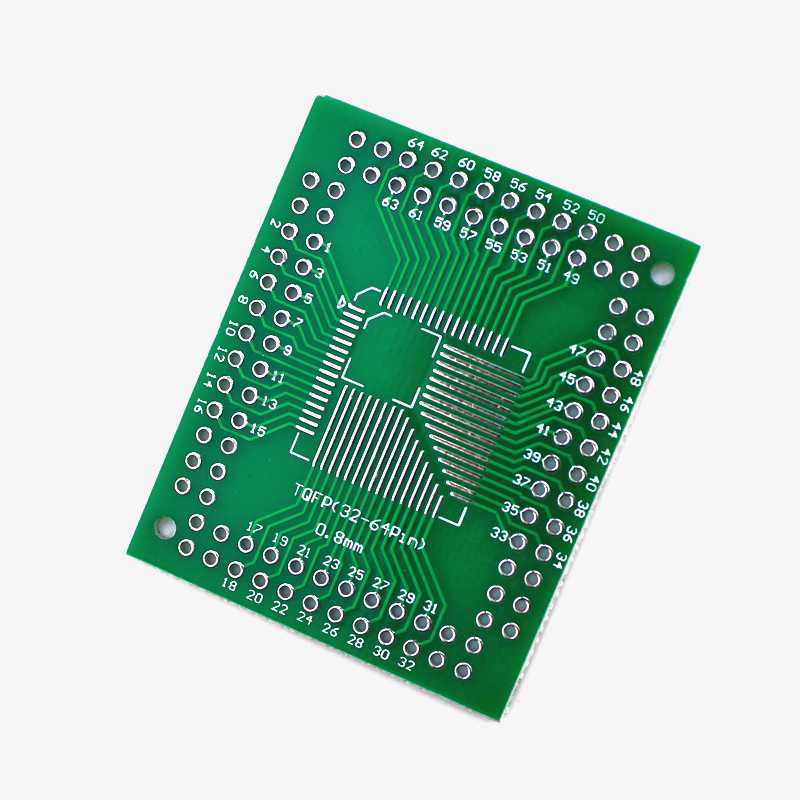

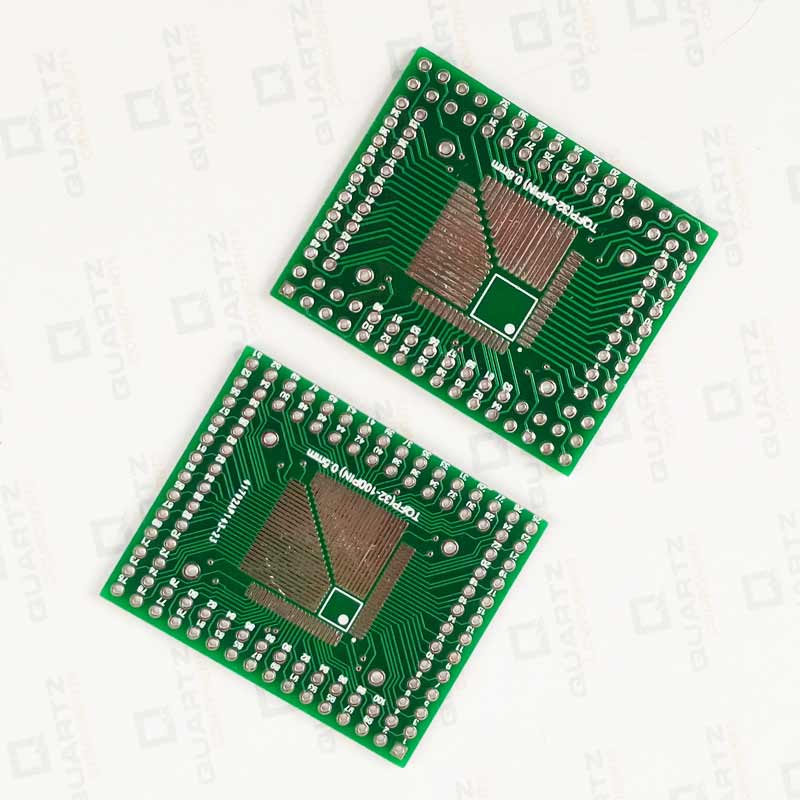

When we develop a system, we go from concept to design to prototype to testing and then final product and in all of these prototyping and testing is the most important step as it irons out any flaws in your concept and remove the bugs. We do not make PCBs for testing purpose instead we use breadboard and breakout boards for the same. If we use QFP/TQFP/LQFP/FQFP SMD package which require PCB soldering to work, it will be a problem while prototyping and testing as we do not design PCB in this stage. This Dual Side LQF SMD package to DIP Package Adapter will help you out in this case. A side for pin pitch size 0.8mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin to 64pin) to 2.54mm/0.1 inch DIP. B side for pin pitch size 0.5mm, it can be used for most of the QFP, TQFP, LQFP, FQFP (compatible with 32pin to 100pin) to 2.54mm/0.1 inch DIP. You can either use jumper wires or berg strips to make connections easily now.

Specifications

• Pin spacing of 0.8mm, suitable for the common QFP, TQFP package transfer into DIP8 upright
• Pin spacing of 0.5mm, suitable for common LQFP, FQFP encapsulation transfer into DIP8 upright
• Low cost and easy to use
• High-quality PCB FR4 Grade with FPT Certified.

Product Description

This PCB has two sides one for 0.8mm, suitable for the common QFP, TQFP package and other for 0.5mm for common LQFP, FQFP encapsulation transfer. You just need to solder the IC an the board itself and take out the DIP connections by either using a breadboard or using Jumper wires.

Package Contents

1× QFP/TQFP/LQFP/FQFP 32/44/64/80/100 LQF SMD Turn to DIP Adapter PCB Board
