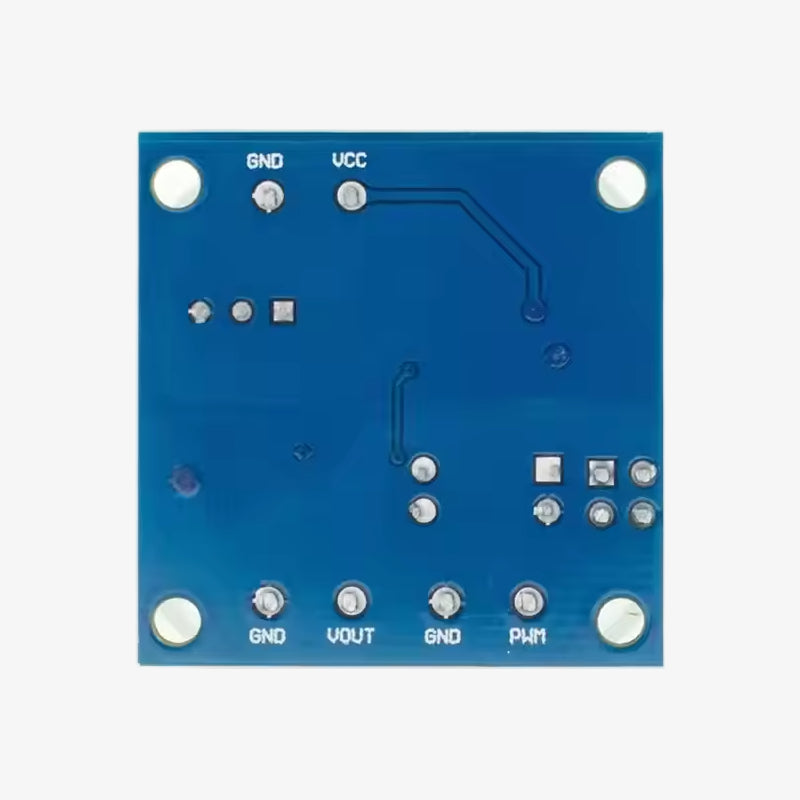

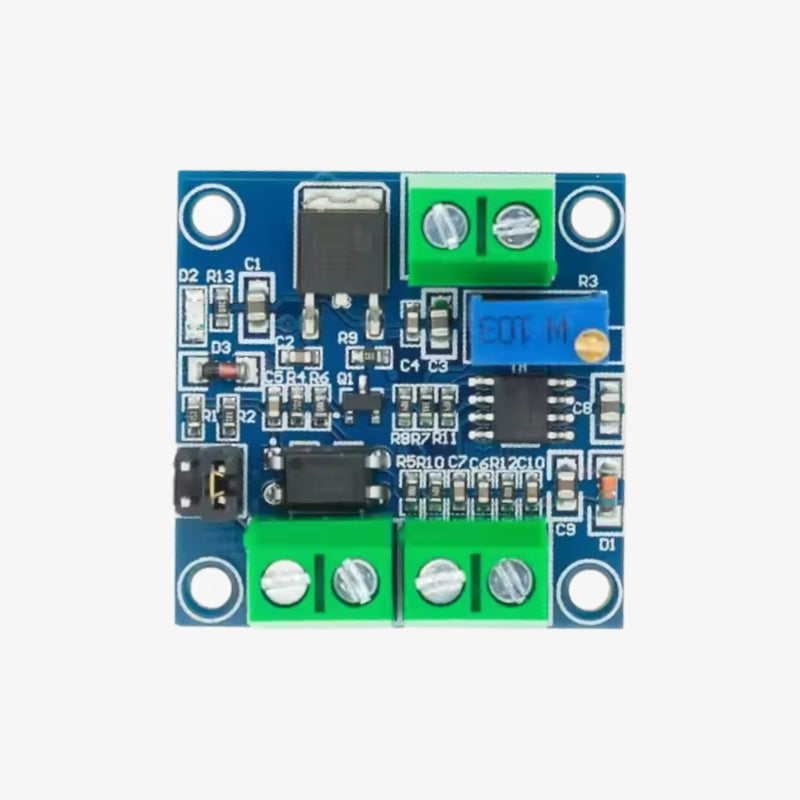

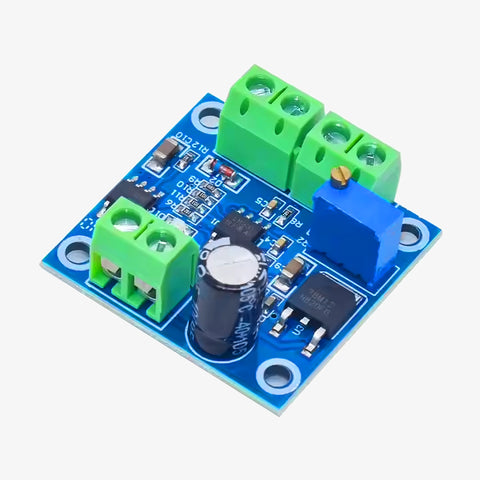

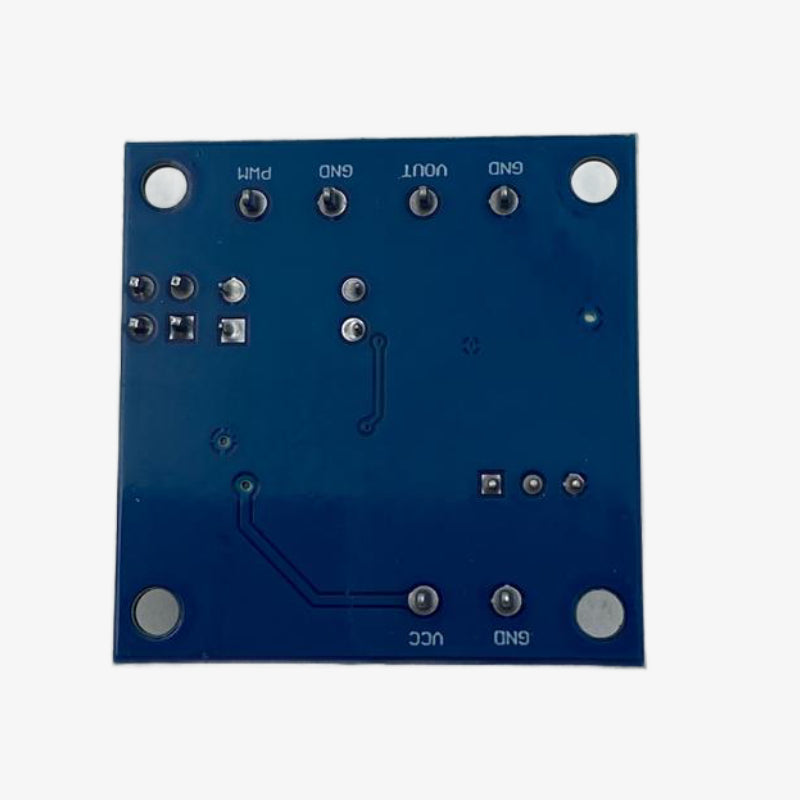

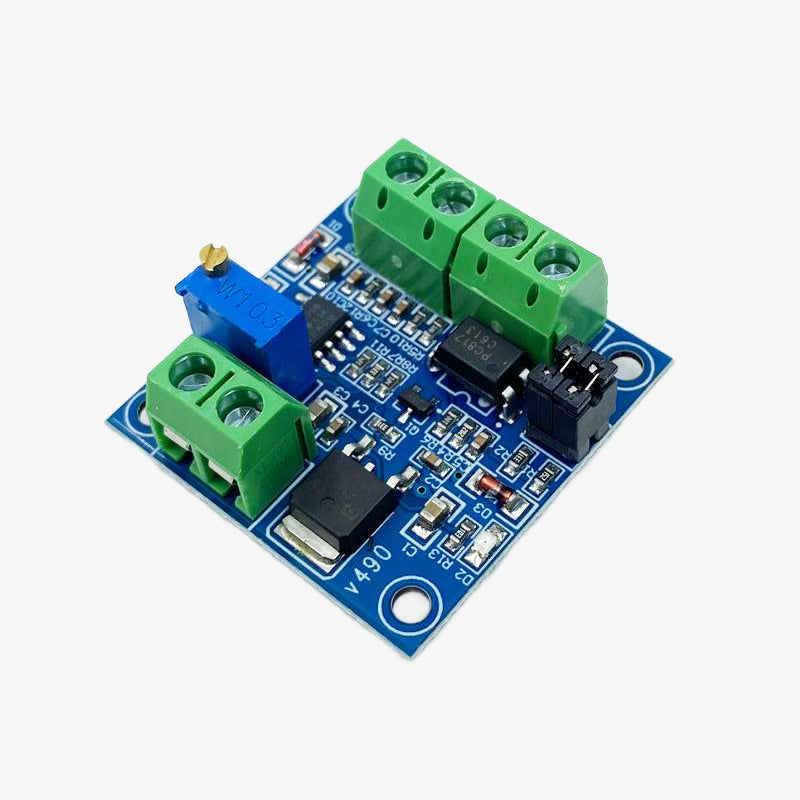

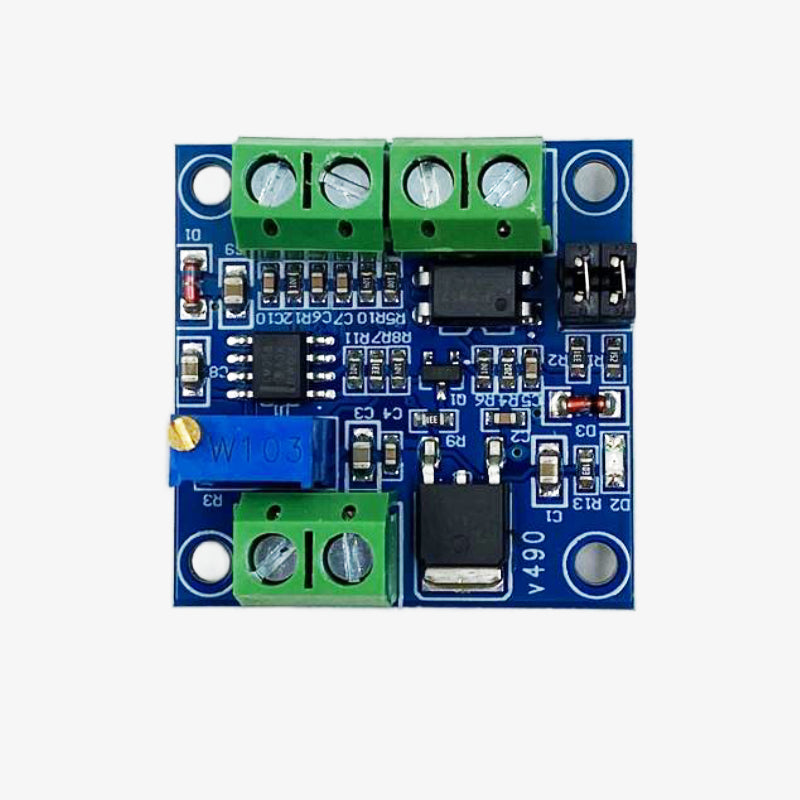

PWM to Voltage 0–100% to -10V Converter Module
SKU:
MOD-QC3031
Availability:
93
In Stock
- Rs. 65.00
- Rs. 65.00
- Unit price
- per
Subtotal:
Rs. 65.00
Description
xThe PWM to Voltage Converter Module is designed to convert a PWM signal (0–100% duty cycle) into a corresponding analog voltage output, specifically in the -10V range. This makes it ideal for applications where a microcontroller or PLC outputs a PWM signal that must be interfaced with analog input devices such as VFDs, DAC-controlled analog circuits, or industrial control systems. The module ensures accurate voltage conversion with stable performance and a compact design suited for embedded applications.
Features of PWM to Voltage 0–100% to -10V Converter Module:
- Converts 0–100% PWM signal to corresponding analog voltage output
- Supports negative voltage output up to 10V
- Wide compatibility with PLCs, microcontrollers, and signal generators
- Stable and linear output for precise analog control
- Built-in filtering for smooth voltage signal
- Easy to integrate with existing control systems
Specifications of PWM to Voltage 0–100% to -10V Converter Module:
- Input Signal: PWM (0–100% Duty Cycle)
- Output Voltage: 0V to -10V
- Input Voltage Range: 12V to 30V DC
- Output Accuracy: ±1%
- Frequency Range: 1KHz to 3KHz
- Operating Temperature: -20°C to +60°C
- Mounting: terminal block for input/output
Package Includes:
1 x PWM to Voltage 0–100% to -10V Converter Module
