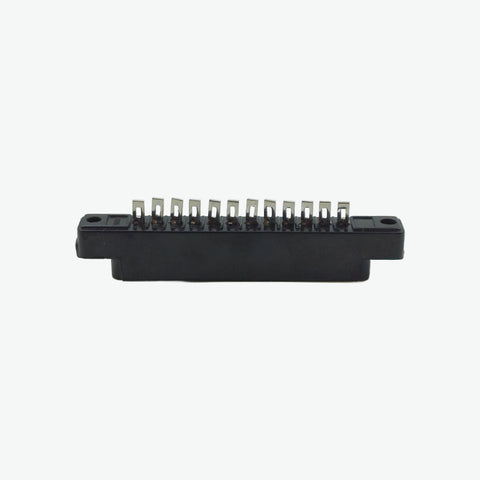

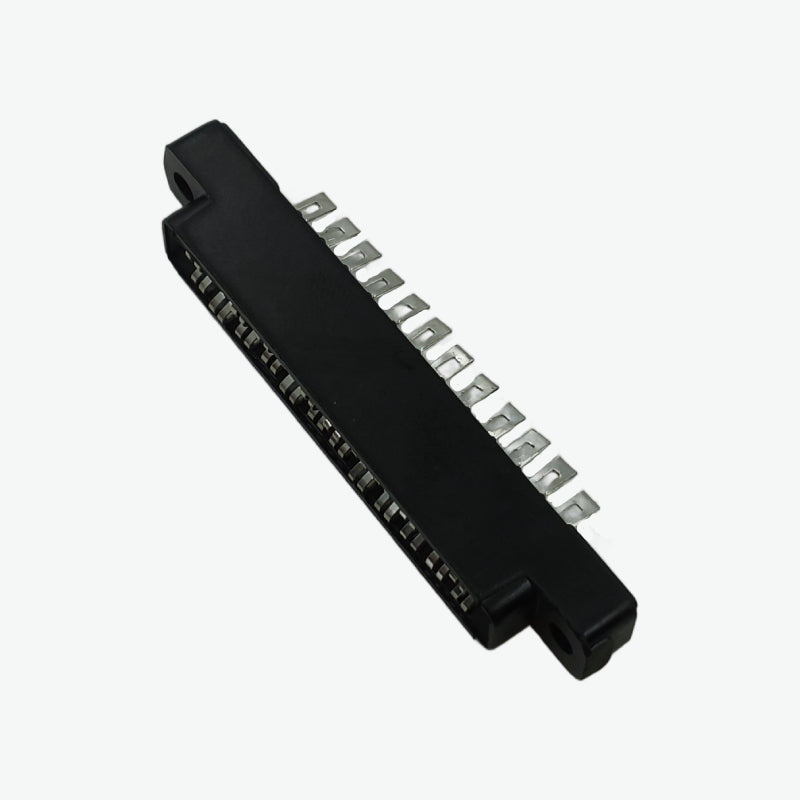

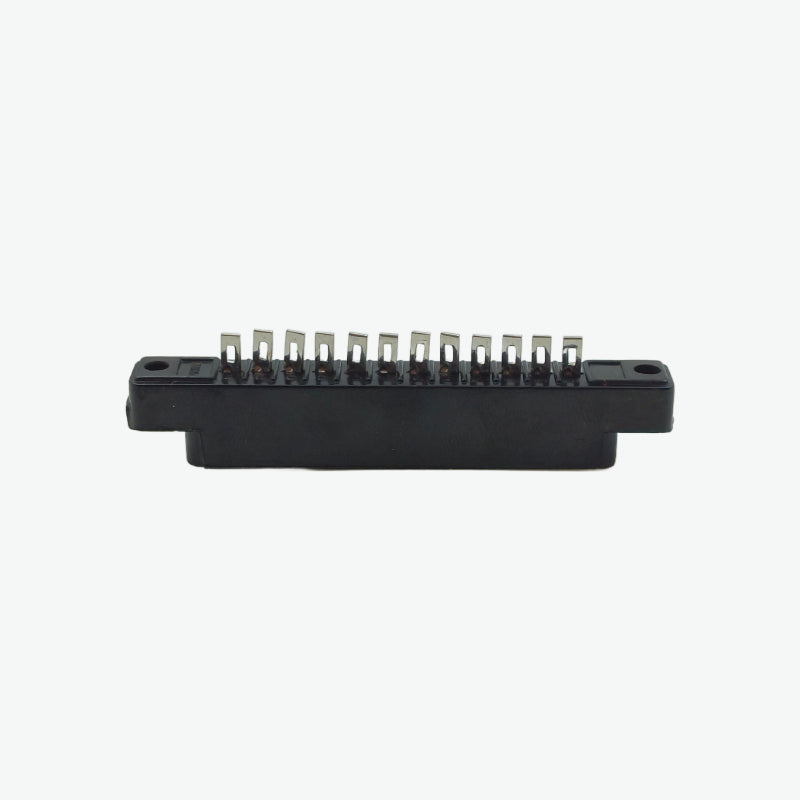

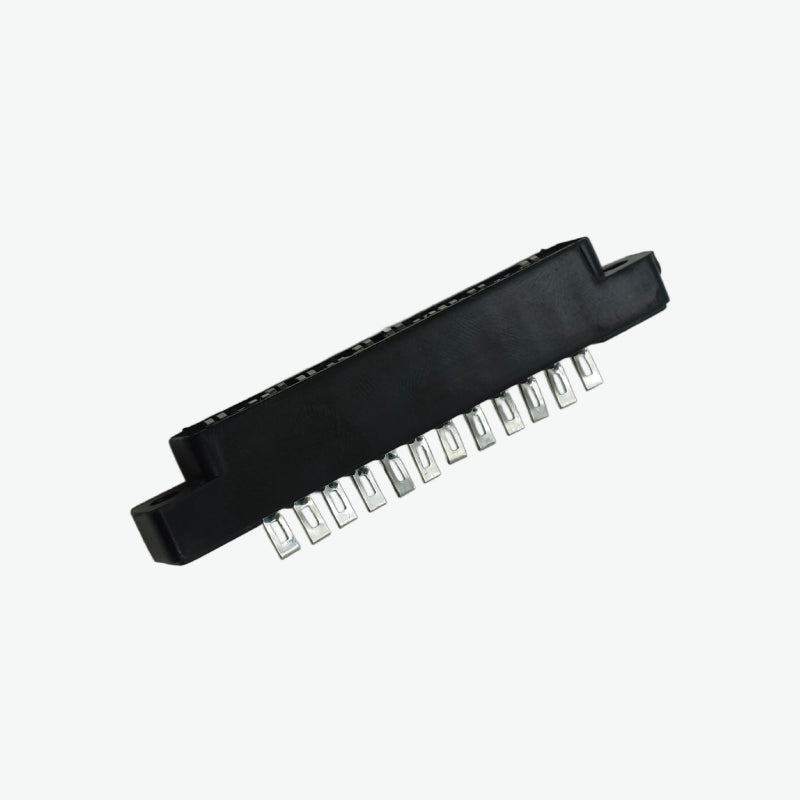

12 Contact Card Edge Connector (Black) - 3.96mm Pitch 5A 600V AC

The 12 Contact Card Edge Connector is a precision-engineered interface component designed for secure PCB-to-board connections. Built with durable materials and bifurcated bellows contacts, it ensures stable conductivity, long service life, and excellent performance across a wide temperature range. Ideal for industrial controls, instrumentation, and electronic assemblies requiring dependable electrical connections.

Features:

1. 12-contact configuration with bifurcated bellows design for reliable electrical connection
2. Solder/PMT type terminals for easy PCB integration
3. Gold/tin-plated phosphor bronze contacts for superior conductivity and corrosion resistance
4. Durable DAP/Bakelite insulator ensures high thermal and electrical strength
5. Rated for 500 mating cycles, ensuring long-term stability
6. RoHS compliant and UL-approved for safety and performance

Specifications:

• Model: 12 Contact Card Edge Connector

• Contact Type: Bifurcated Bellows

• Contact Terminal: Solder / PMT

• Contact Pitch: 3.96mm (0.156 inch)

• Durability: 500 Cycles

• Insulator Material: DAP / Bakelite

• Contact Material: Phosphor Bronze

• Contact Finish: Gold / Tin

• Operating Temperature Range: -65°C to +125°C

• Working Voltage: 600V RMS

• Voltage Proof: 1800V RMS

• Current Rating: 5A

• Contact Resistance: ≤10 mΩ (max)

• Insulation Resistance: ≥5000 MΩ (min)

• Compliance: RoHS Certified

• Approval: E302677

Package Includes:

1 × 12 Contact Card Edge Connector – 3.96mm Pitch
