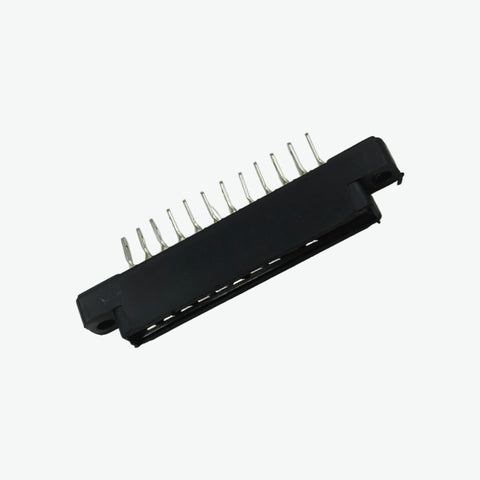

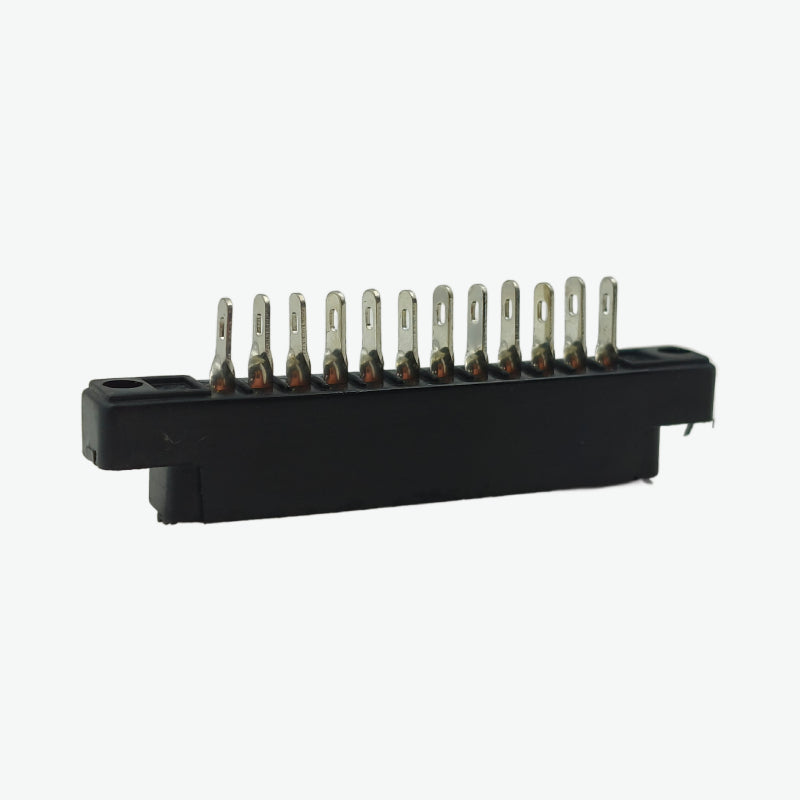

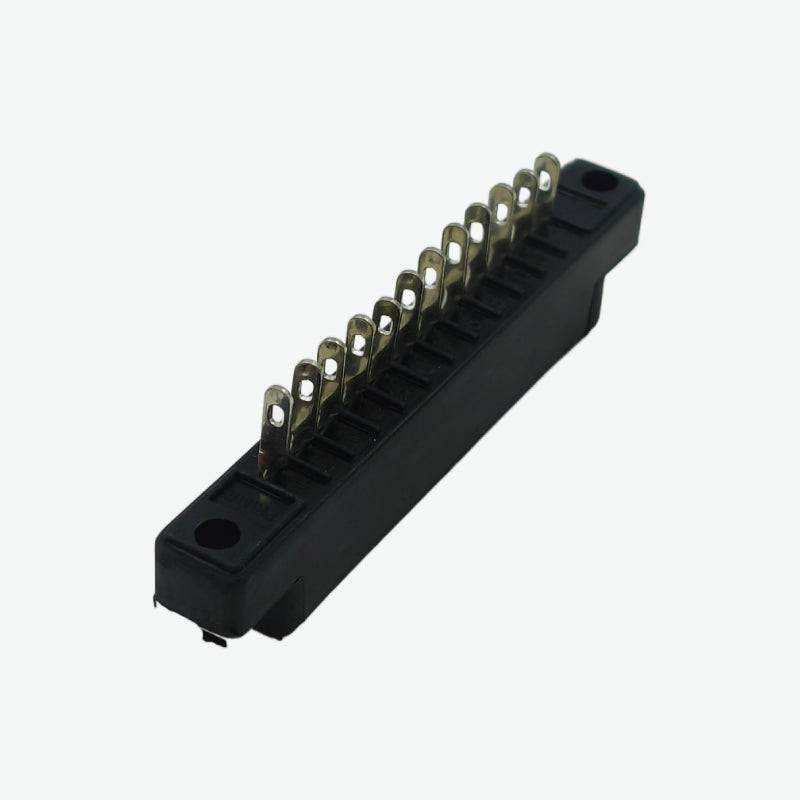

12 Contact Card Edge Connector (Black) - 3.96mm Pitch 5A 300V

The 12 Contact Card Edge Connector (PCx12 Series) features Bifurcated Double Bellows (BBT) contacts for secure and reliable PCB connections. Designed for high-density circuits, it combines robust mechanical durability with excellent electrical performance. Its PA66 insulator and gold- or tin-plated phosphor bronze contacts ensure long-lasting reliability, making it ideal for industrial electronics, communication modules, and control systems.

Features:

1. 12-contact card edge connector for multi-point PCB connections
2. Bifurcated Double Bellows (BBT) contact type for secure, stable connectivity
3. Solder or PMT terminals for flexible PCB mounting options
4. 3.96mm (0.156 inch) pitch for precise alignment and compact layouts
5. Durable design rated for 500 mating cycles
6. Ideal for industrial electronics, communication modules, and PCB assemblies

Specifications:

• Number of Contacts: 12
• Contact Type: Bifurcated Double Bellows (BBT)
• Colour: Black
• Contact Terminal: Solder / PMT
• Contact Pitch: 3.96mm (0.156 inch)
• Durability: 500 cycles
• Insulator Material: PA66
• Contact Material: Phosphor Bronze (PB)
• Contact Finish: Gold / Tin
• Temperature Range: -40°C to +125°C
• Working Voltage: 300V rms
• Current Rating: 5A
• Contact Resistance: ≤10 mΩ
• Insulation Resistance: ≥1000 MΩ
• Voltage Proof: 1800V rms

Package Includes:

12 Contact Card Edge Connector(Black) - 3.96mm Pitch
