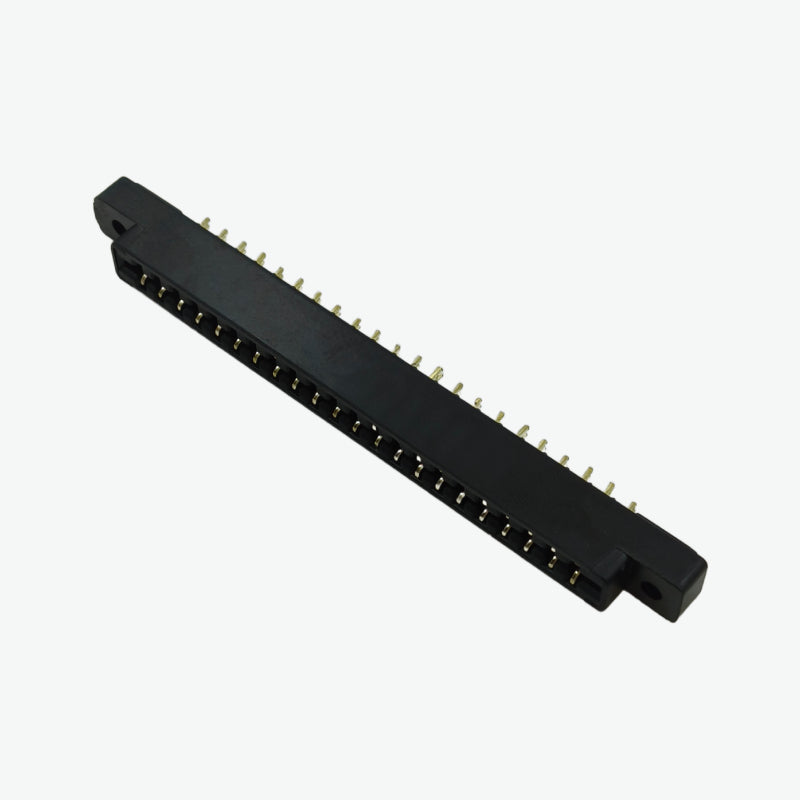

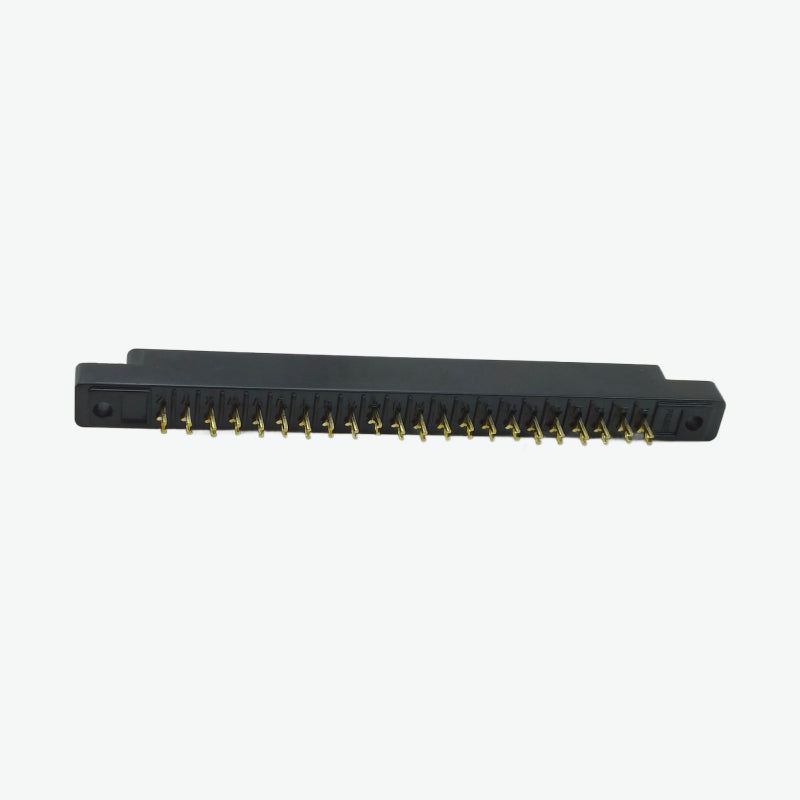

22 Contact Card Edge Connector - 3.96mm Pitch 5A 600V

The Card Edge Connector with Tuning Fork (TF) contacts is a high-performance connector designed for reliable PCB connections in industrial and electronic applications. Featuring a robust DAP/phenolic (Bakelite) insulator and gold- or tin-plated phosphor bronze contacts, it delivers excellent electrical performance and mechanical durability. With up to 22 contacts, it supports multiple configurations for versatile PCB designs and ensures stable signal and power transmission.

Features:

1. Tuning Fork (TF) contact type for secure and reliable connections
2. Solder terminal (open/close eyelet) or PMT options for flexible PCB mounting
3. 3.96mm (0.156 inch) pitch for precise board alignment
4. High mechanical durability rated for 500 mating cycles
5. Robust DAP/Phenolic (Bakelite) insulator ensures electrical insulation and mechanical strength
6. Gold or tin-plated phosphor bronze contacts for excellent conductivity and corrosion resistance
7. Compact and reliable design ideal for industrial electronics, control boards, and communication modules

Specifications:

• Number of Contacts: 22
• Contact Type: Tuning Fork (TF)
• Contact Terminal: Solder (Open/Close Eyelet) / PMT
• Contact Pitch: 3.96mm (0.156 inch)
• Durability: 500 cycles
• Insulator: DAP / Phenolic (Bakelite)
• Contact Material: Phosphor Bronze
• Contact Finish: Gold / Tin
• Temperature Range: -65°C to +125°C
• Working Voltage: 600V rms
• Current Rating: 5A
• Contact Resistance: ≤6 mΩ
• Insulation Resistance: ≥5000 MΩ
• Voltage Proof: 1800V rms

Package Includes:

1 x 22 Contact Card Edge Connector - 3.96mm Pitch
