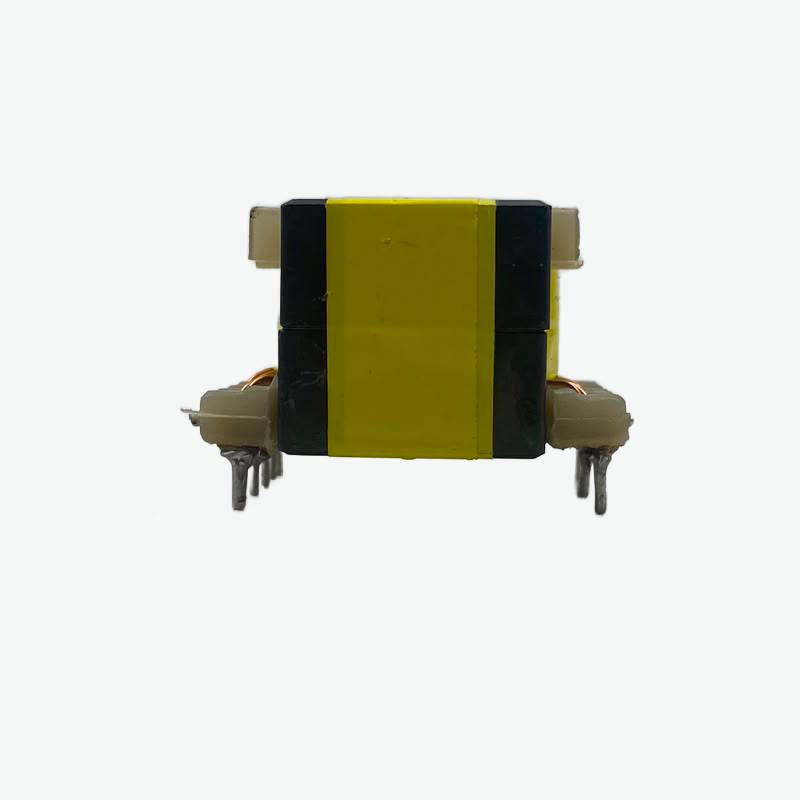

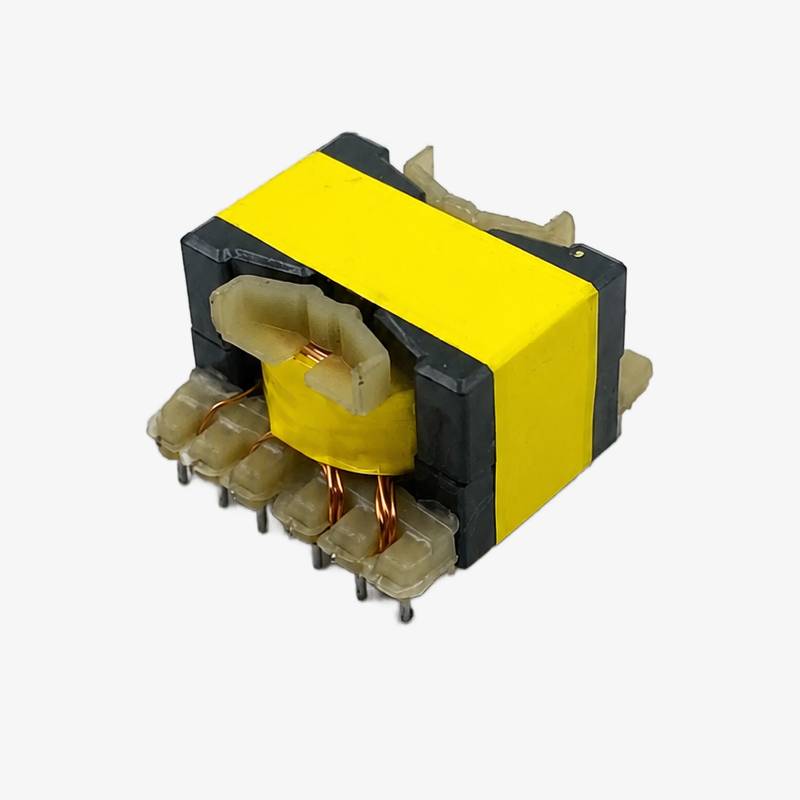

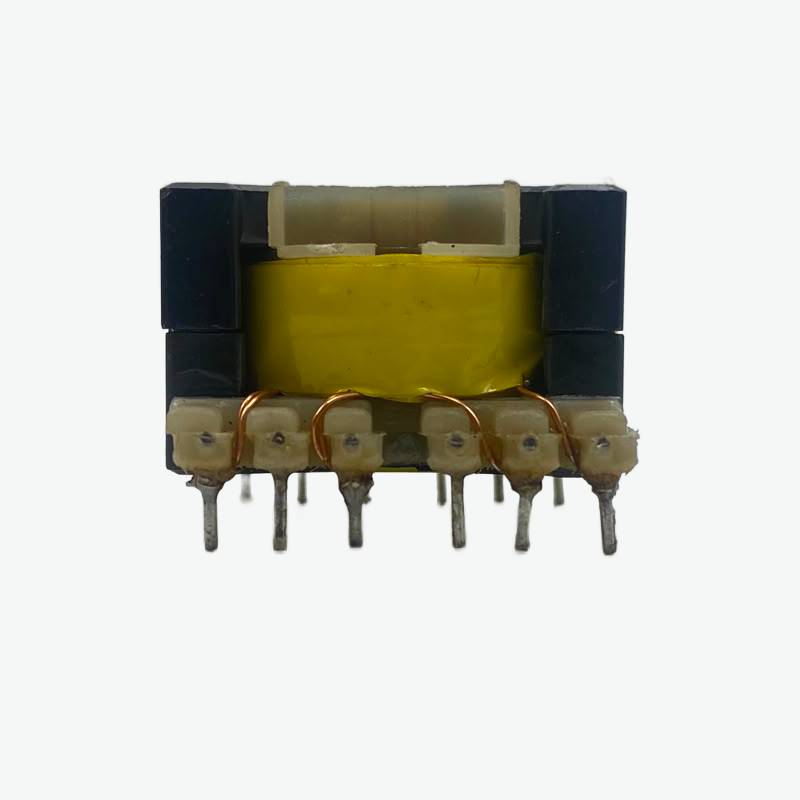

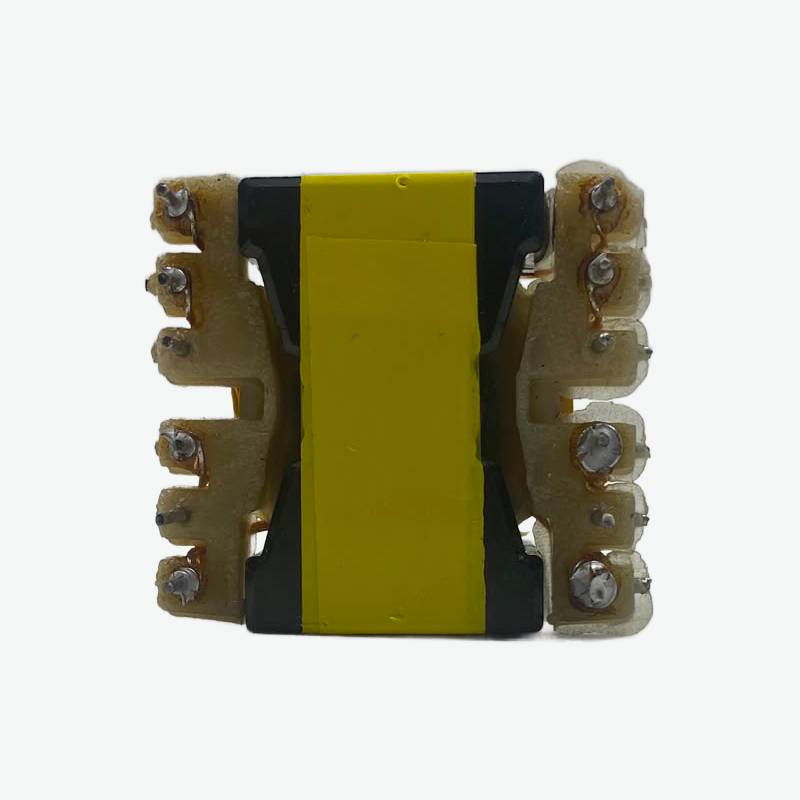

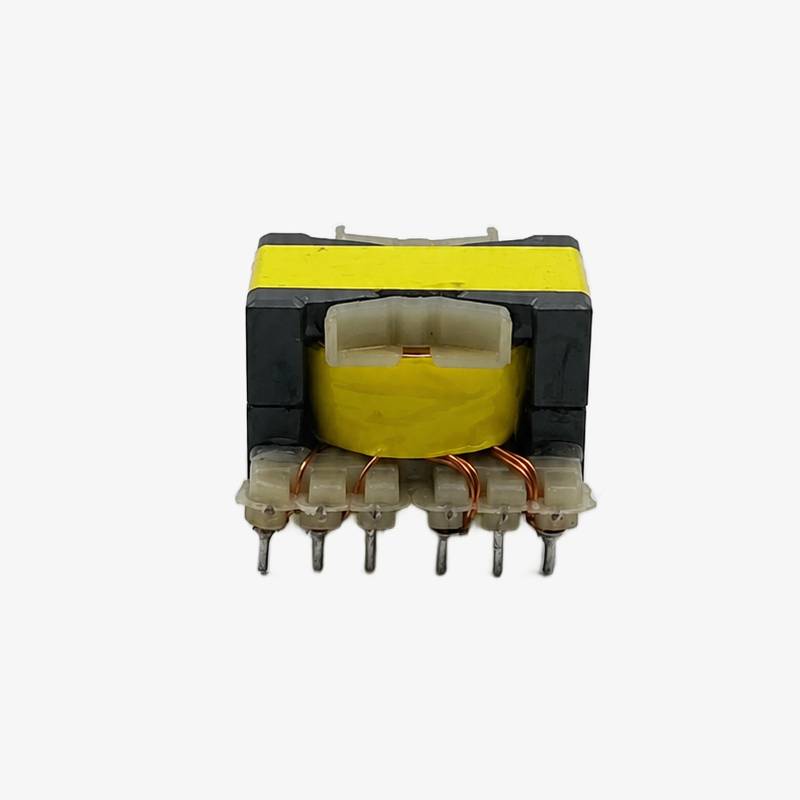

PQ3220 75W High-Frequency SMPS Transformer - 12.6V Output (OB2269CP IC Compatible)
SKU:
MTR-QC5842
Availability:
51
In Stock
-
- Rs. 108.00
- Unit price
- per
Subtotal:
Rs. 108.00
Description
xPQ3220 75W High-Frequency SMPS Transformer - 12.6V Output (OB2269CP IC Compatible) is a high-frequency ferrite transformer designed for switch-mode power supply (SMPS) applications. Built on a PQ3220 MnZn ferrite core, it delivers up to 75W output power and is optimized for use with OB2269CP-based power supply circuits. Featuring high-grade copper windings, low losses, and reliable performance across a wide frequency range, it is suitable for battery chargers, power adapters, industrial power supplies, and embedded power conversion systems.
Features:
- PQ3220 Ferrite Core Design
- 12.6V Output Configuration
- Compatible with OB2269CP SMPS Controller IC
- Up to 75W Power Handling Capability
- High-Frequency Operation
- Low Core Loss MnZn Ferrite Material
- High-Grade Copper Windings
- Through-Hole PCB Mounting
- Compact and Robust Construction
- Suitable for Flyback SMPS Applications
- Wide Operating Temperature Range
- Reliable Electrical Isolation
Specifications:
| Parameter | Value |
|---|---|
| Product Type | High-Frequency SMPS Transformer |
| Model Number | PQ3220 |
| Output Voltage | 12.6V |
| Core Material | MnZn (Manganese-Zinc) Ferrite |
| Phase | Single |
| Power Rating | 75W Max |
| Maximum Secondary Current | 6A |
| Primary Inductance | ~750µH |
| Primary Winding | 40 Turns, 2 × 0.4mm Wire |
| Primary Bias Winding | 9 Turns, 1 × 0.4mm Wire |
| Secondary Winding | 6 Turns, 5 × 0.5mm Wire |
| Secondary Bias Winding | 6 Turns, 1 × 0.4mm Wire |
| Working Frequency | 20kHz – 500kHz |
| Winding Material | High-Grade Copper |
| Number of Pins | 8 Pin |
| Mounting Type | Through Hole |
| Operating Temperature | -15°C to +105°C |
| Length | 32 mm |
| Width | 35 mm |
| Height | 20 mm |
| Weight | 200 g |
Also Check These Out :-
PQ3230 150W High-Frequency SMPS Transformer - 14.6V Output
PQ3230 150W High-Frequency SMPS Transformer - 12.6V Output
PQ3230 150W High-Frequency SMPS Transformer - 42V Output
PQ3230 150W High-Frequency SMPS Transformer - 25V Output
PQ3230 150W High-Frequency SMPS Transformer - 21V Output
Package Includes:
1 x PQ3220 75W High-Frequency SMPS Transformer - 12.6V Output (OB2269CP IC Compatible)
