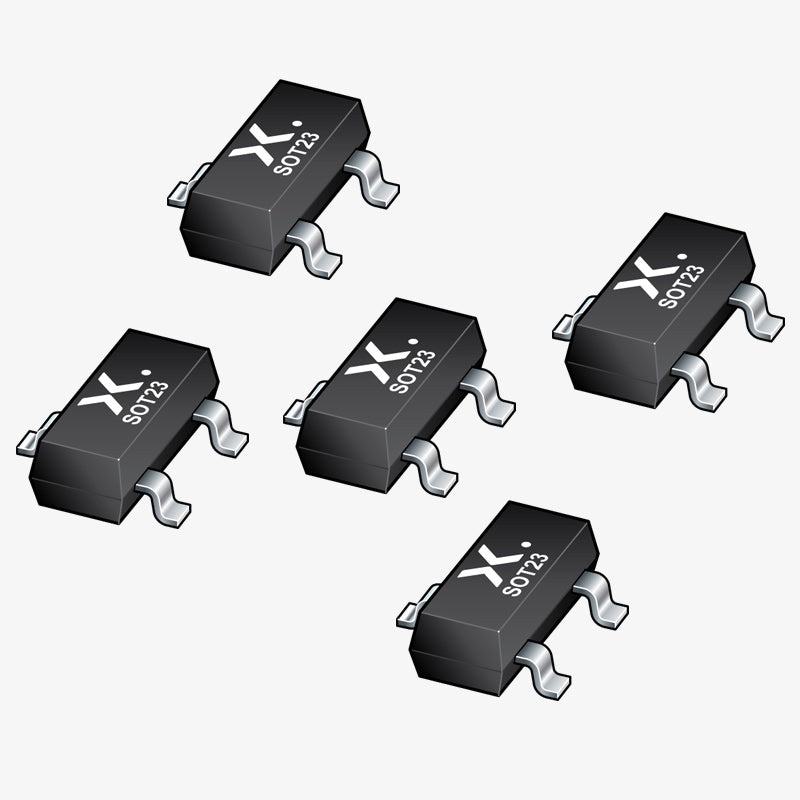

SMD SOT-23 Package

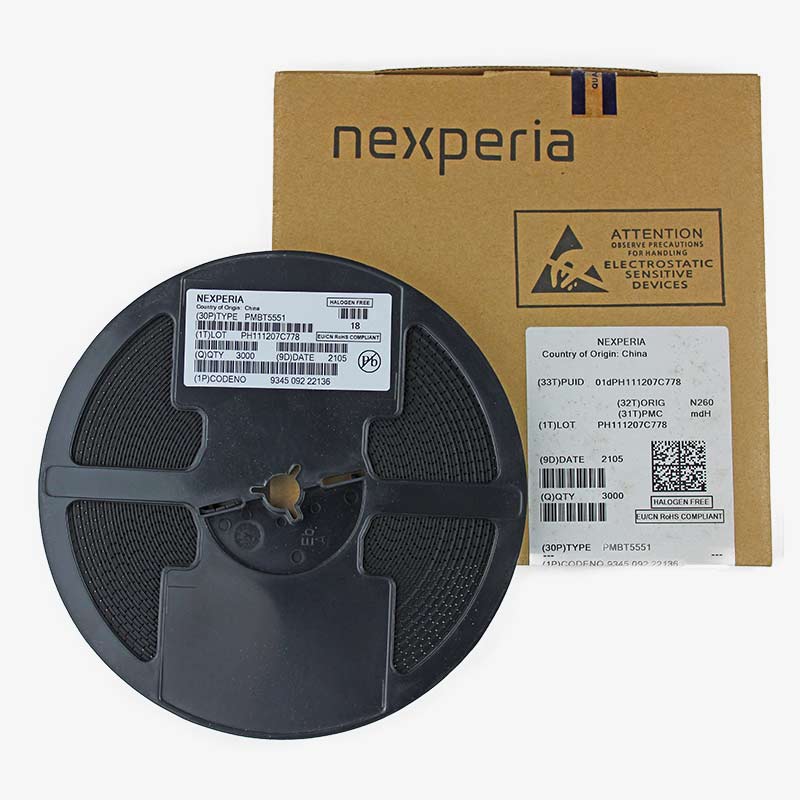

PMBT5551 NPN high-voltage transistors
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

PMBT5551 (SMD SOT-23 Package) NPN high-voltage transistor - Pack Of 5 Pieces

QC1452
597 In stock
Rs. 22.00 (Exc. GST)
Rs. 22.00

NPN high-voltage transistor in a SOT23 plastic package.

Features and benefits :

  • Low current (max. 300 mA)
  • High voltage (max. 160 V)
  • AEC-Q101 qualified

Applications :

  • General purpose

Specifications :

Type number Package version Size (mm) Polarity Ptot (mW) VCEO [max] (V) IC [max] (mA) hFE [min] fT [min] (MHz) Automotive qualified
PMBT5551 SOT23 2.9 x 1.3 x 1 NPN 250 160 300 80 100 Y

    Datasheet :

    PMBT5551 (SMD SOT-23 Package) NPN high-voltage transistor Datasheet

    Package Includes :

    1 x 5 Piece of PMBT5551 (SMD SOT-23 Package) NPN high-voltage transistor
