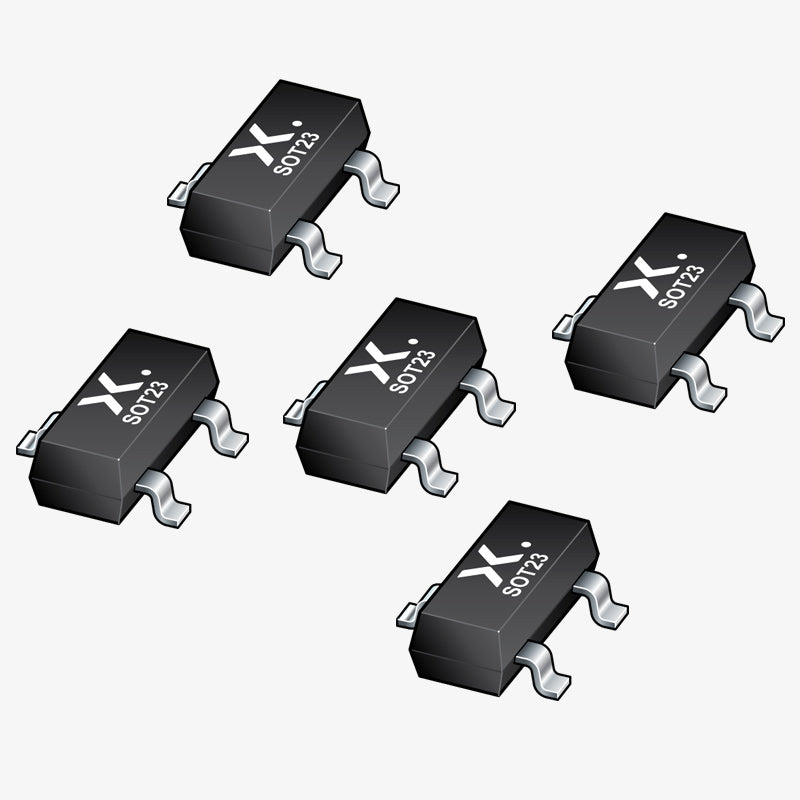

SMD SOT-23 Package

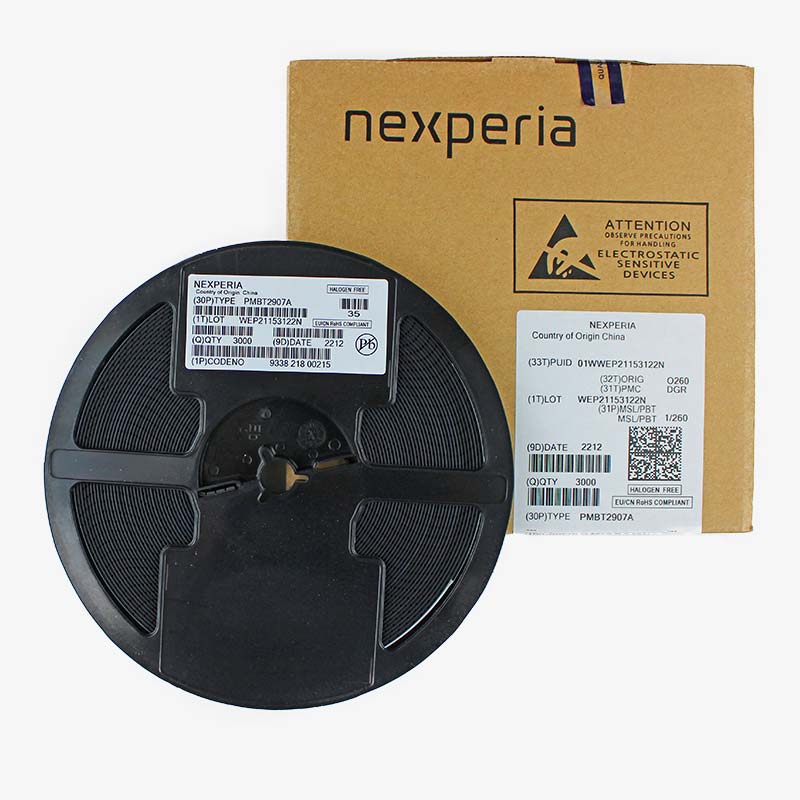

PMBT2907A PNP switching transistor
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

PMBT2907A 60V, 600 mA, (SMD SOT-23 Package) PNP switching transistor - Pack Of 5 Pieces

QC1449
284 In stock
Rs. 9.00 (Exc. GST)
Rs. 9.00

PNP switching transistor in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

NPN complement: PMBT2222A

40V variant: PMBT2907

Features and benefits :

  • Single general-purpose switching transistor
  • AEC-Q101 qualified

Applications :

  • Switching and linear amplification

Specifications :

Type number Package version Size (mm) Polarity Ptot (mW) VCEO [max] (V) IC [max] (mA) hFE [min] hFE [max] fT [min] (MHz) Automotive qualified
PMBT2907A SOT23 2.9 x 1.3 x 1 PNP 250 -60 -600 75 300 200 Y

Datasheet :

PMBT2907A 60V, 600 mA, (SMD SOT-23 Package) Datasheet

Package Includes :

1 x 5 Piece of PMBT2907A (SMD SOT-23 Package) PNP switching transistor
