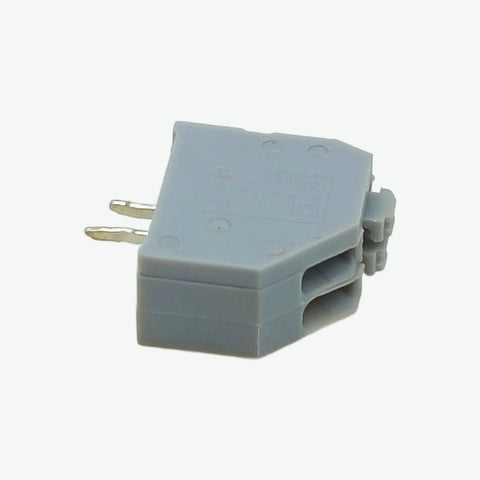

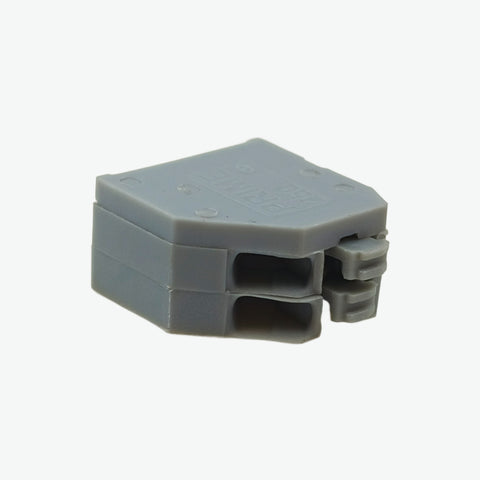

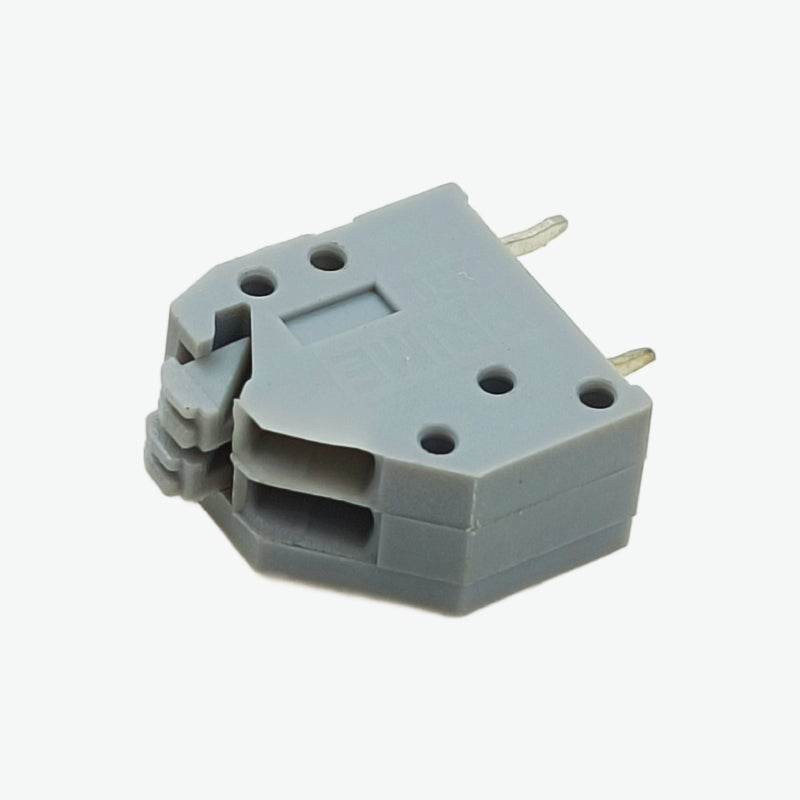

2 Way Push Type PCB Connector Terminal Block - 2.54mm Pitch

The 2 Way Push Type PCB Connector is a compact and reliable solution for secure wire-to-board connections. Featuring push-in terminals, it allows tool-free insertion and removal of solid or stranded wires, providing fast and maintenance-friendly assembly. Its high-quality engineering thermoplastic housing and copper alloy contacts ensure long-lasting performance, low voltage drop, and stable electrical conductivity, making it ideal for control boards, automation modules, and industrial electronics.

Features:

1. Dual-terminal push-in connector for quick, secure, and screwless wire connections
2. 2.54mm pitch suitable for compact, high-density PCB layouts
3. Recommended PCB hole diameter: 1.20mm for precise mounting
4. Engineering thermoplastic housing ensures durability and high insulation
5. Minimal voltage drop of 20mV for efficient power transmission
6. Supports wire sizes from 0.2–1.5mm²
7. Copper alloy contacts with wire protector for reliable termination
8. Solder pin size: 0.40 × 0.80mm for easy PCB assembly
9. Compliant with IEC 60947-7-1 standard; dielectric strength >2.5KV

Specifications:

• Type: Push Type PCB Connector (Screwless)
• Number of Terminals: 2
• Rated Current: 2A
• Rated Voltage: 160V AC
• Test Class: IEC 60947-7-1
• Pitch: 2.54mm
• Wire Size: 0.2–1.5mm²
• Wire Strip Size: 8.50–9.50mm
• Contact Material: Copper Alloy
• Wire Protector: Yes
• Solder Pin Size: 0.40 × 0.80mm
• Dielectric Strength: >2.5KV
• Voltage Drop: 20mV
• Housing Material: Engineering Thermoplastic

Package Includes:

1 × 2 Way Push Type PCB Connector - 2.54mm Pitch
