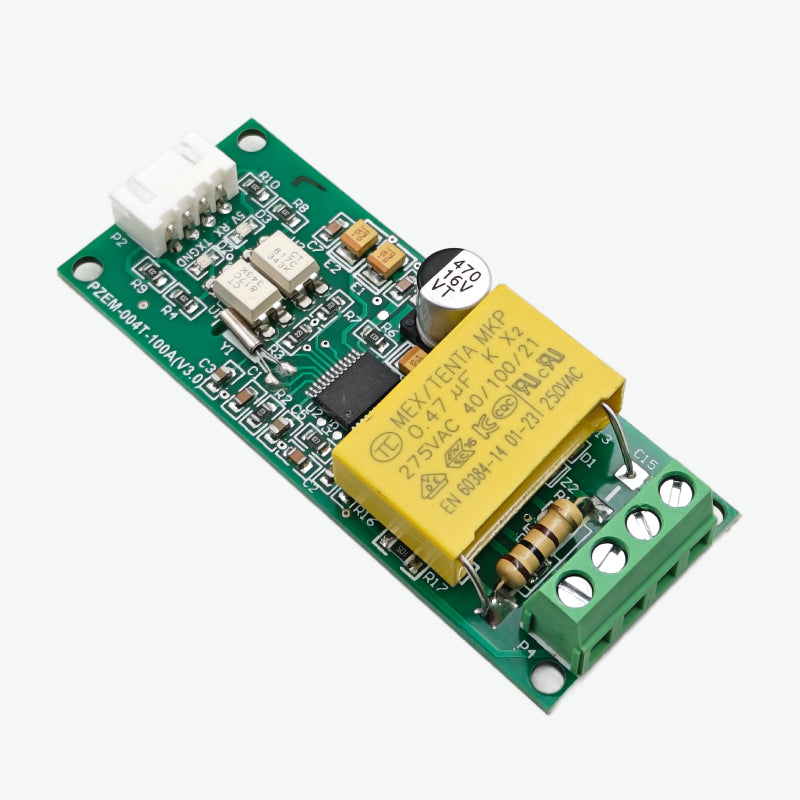

Peacefair PZEM-004T AC Multi-function Electric Energy Metering Power Monitor

Peacefair PZEM-004T AC Multi-Function Electric Energy Metering Power Monitor is a compact and accurate AC power monitoring module designed to measure voltage, current, power, energy consumption, frequency, and power factor in single-phase AC systems, operating across a wide voltage range of 80–260VAC with up to 100A current capacity, making it ideal for energy monitoring, smart meters, industrial control panels, and DIY power measurement projects.

Features:

1. Multi-function AC power and energy monitoring module.
2. Measures voltage, current, power, energy, frequency, and power factor.
3. Wide operating voltage range from 80–260VAC.
4. Supports high current measurement up to 100A using CT.
5. High measurement accuracy suitable for energy monitoring.
6. Compact design for easy panel or enclosure integration.
7. Reliable performance for continuous monitoring applications.

Specifications:

• Product Type: AC Energy Meter / Power Monitor
• Model: PZEM-004T
• Operating Voltage: 80–260 VAC
• Test Voltage: 80–260 VAC
• Rated Current: 100 A
• Rated Power: 22,000 W (100A @ 220V)
• Operating Frequency: 45–65 Hz
• Measurement Accuracy: Class 1.0
• Phase Type: Single Phase AC
• Current Measurement: External Current Transformer (CT)
• Applications: Energy monitoring, smart meters, industrial panels, home automation, DIY electronics

Package Includes:

1 × Peacefair PZEM-004T AC Multi-Function Electric Energy Metering Power Monitor
