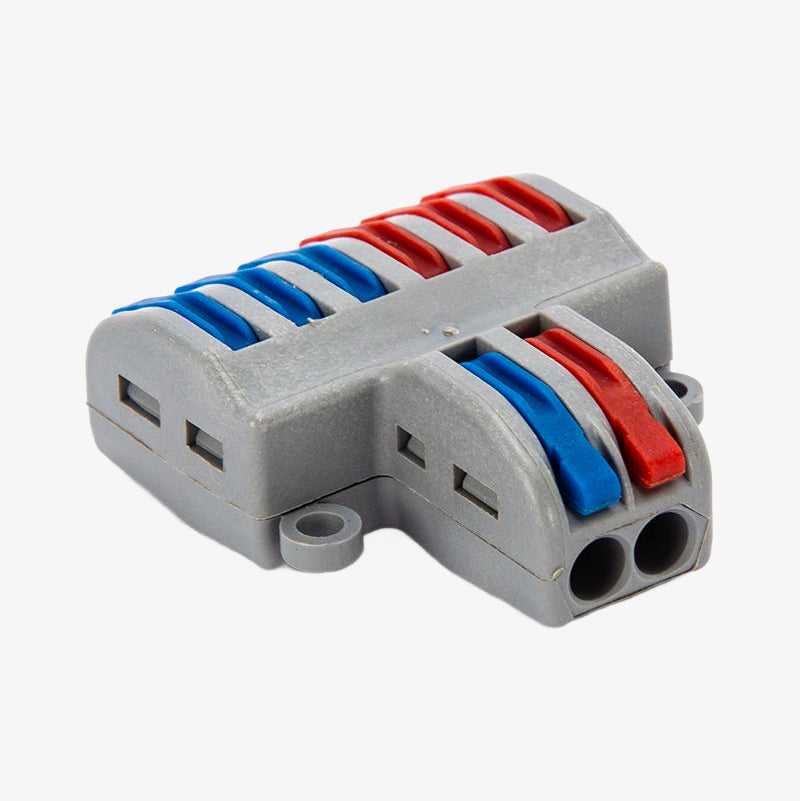

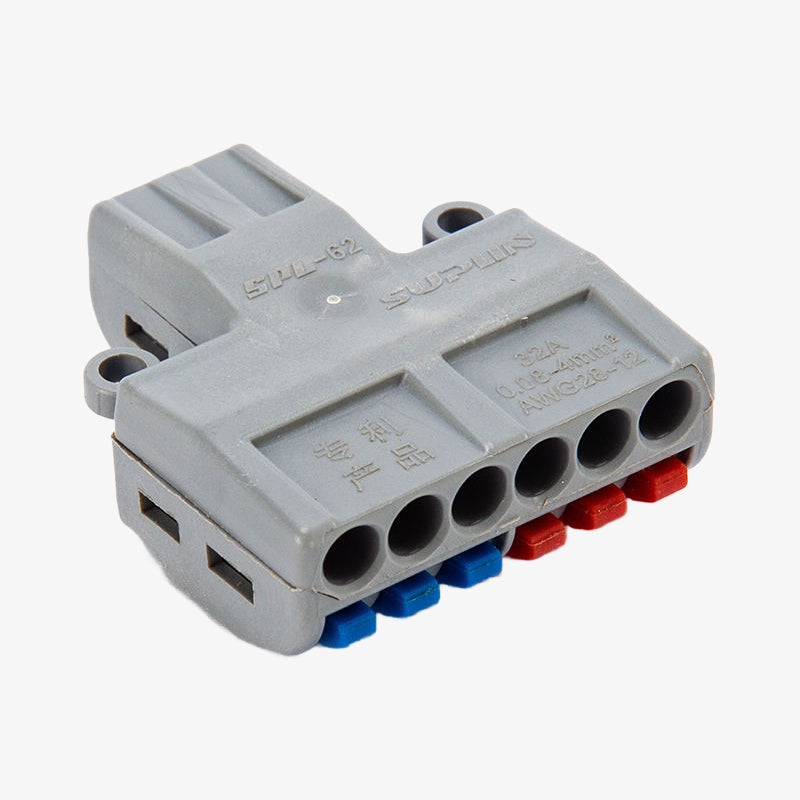

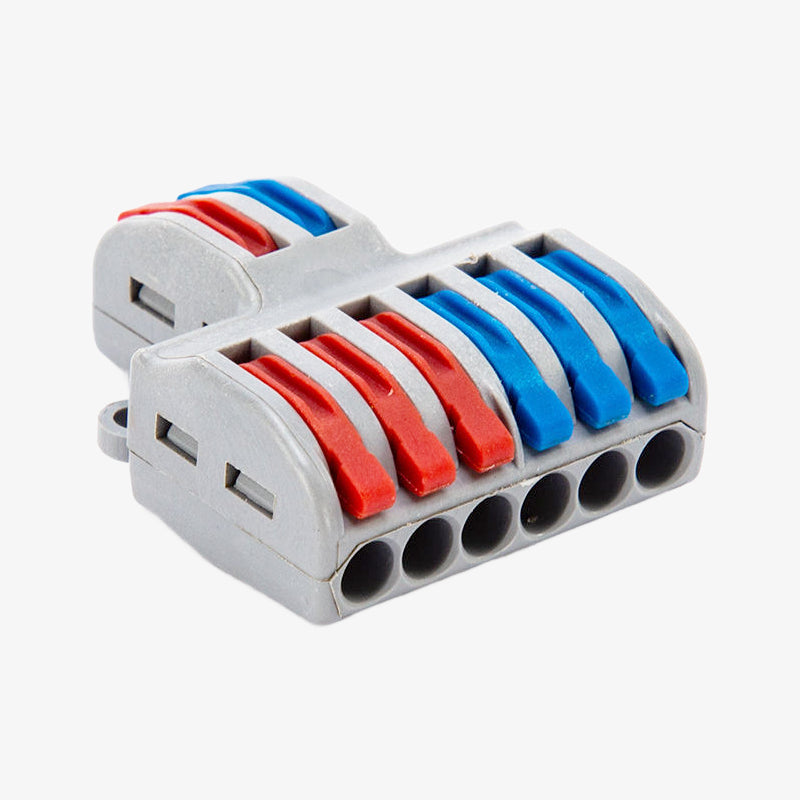

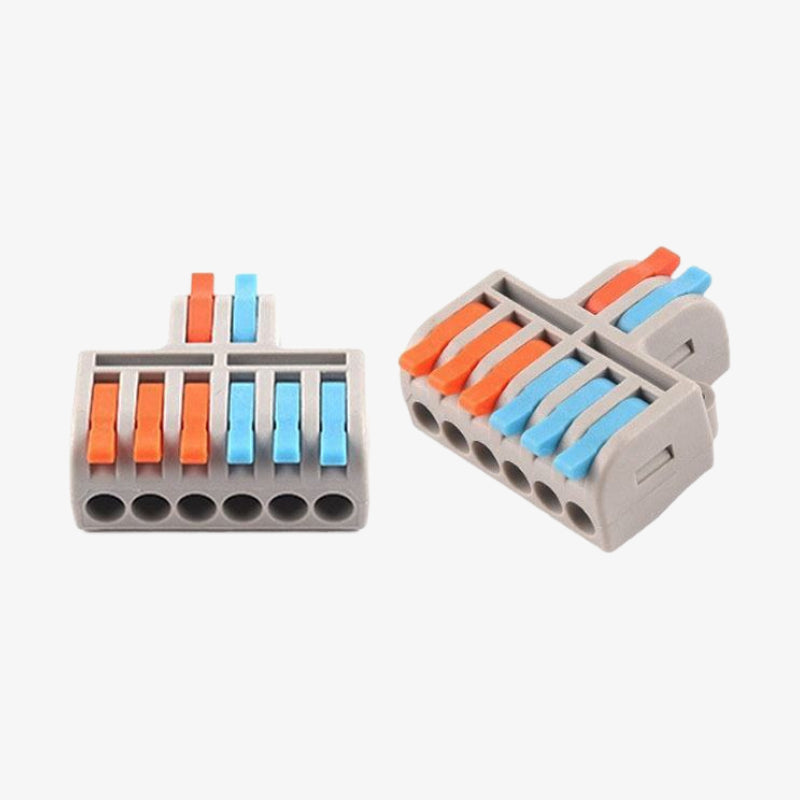

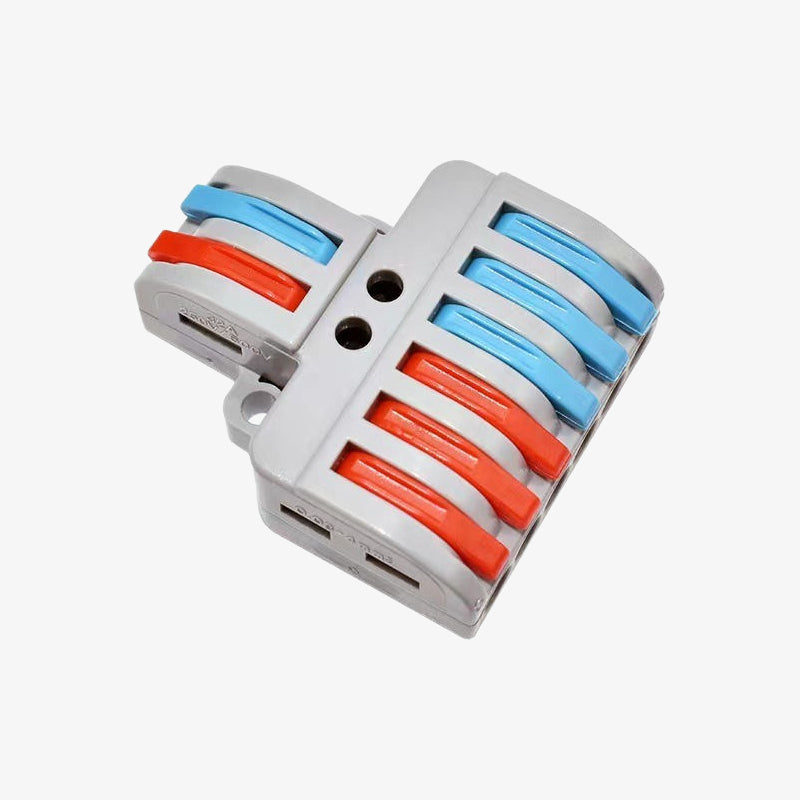

PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection

The PCT-SPL-62 is a high-quality 6:2 pole quick connection terminal block designed for fast, safe, and efficient wiring solutions. Featuring a spring lock lever system, it allows easy tool-free wire insertion and removal, ideal for both solid and stranded wires. With six input ports and two output ports, it enables parallel or branching connections, commonly used in lighting circuits, distribution boxes, and control cabinets.

Features of PCT-SPL-62 6:2 Pole Quick Connection Terminal:

1. 6 input ports and 2 output ports for versatile wiring configurations
2. Spring lock lever mechanism for fast, tool-free connection and disconnection
3. Supports a wide wire range from 0.08mm² to 2.5mm² (28–14 AWG)
4. Secure grip on solid and stranded cables with strong copper contacts
5. Durable flame-retardant polycarbonate housing ensures electrical safety
6. Terminals can be reused and spliced conveniently for modular wiring systems
7. Ideal for junction boxes, lighting installations, electrical panels, and DIY electrical projects

Specifications of PCT-SPL-62:

• Model: PCT-SPL-62
• Pole Configuration: 6:2
• Wire Size Range: 0.08–2.5mm² (28–14 AWG)
• Rated Voltage: 450V
• Rated Current: 32A
• Contact Material: Copper Alloy
• Insulation Material: Flame-retardant PC
• Operating Temperature: -40°C to +85°C

Package Includes:

1 × PCT-SPL-62 0.08-2.5mm 6:2 Pole Wire Connector Terminal Block with Spring Lock Lever for Cable Connection
