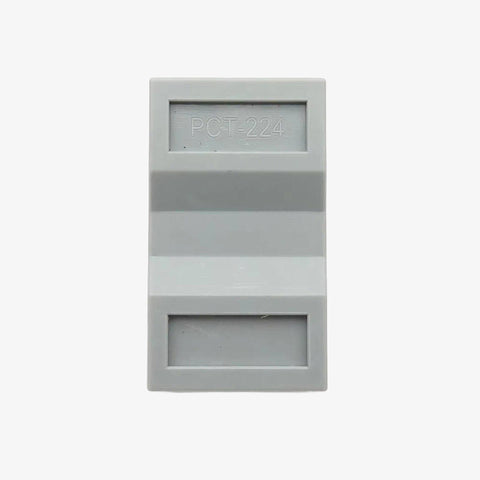

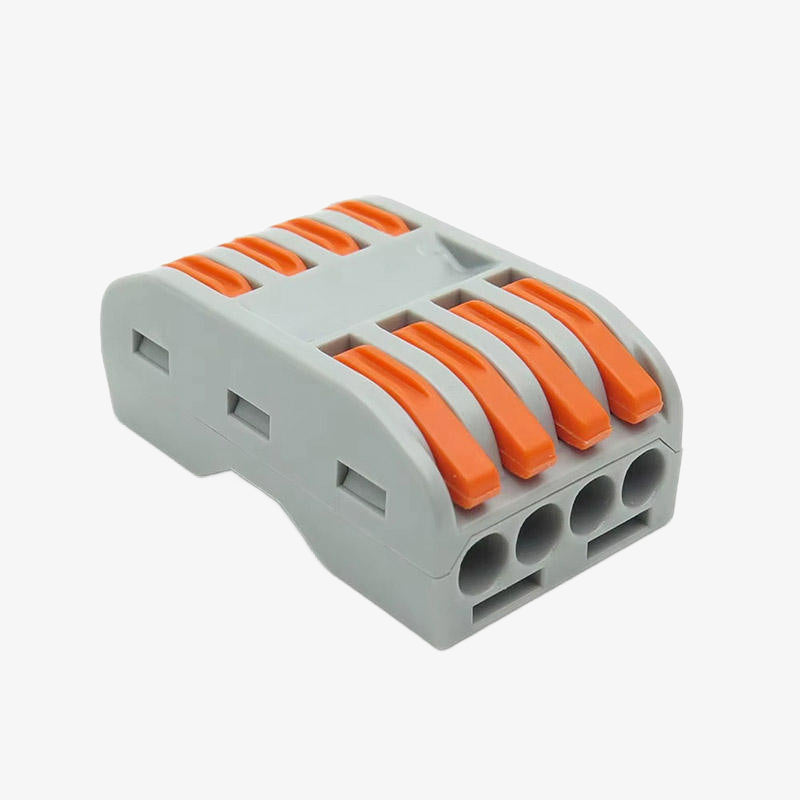

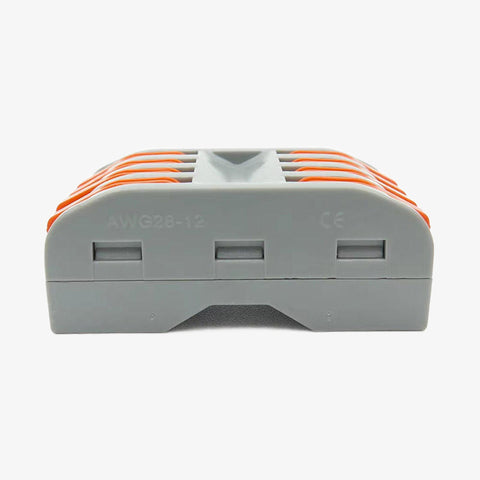

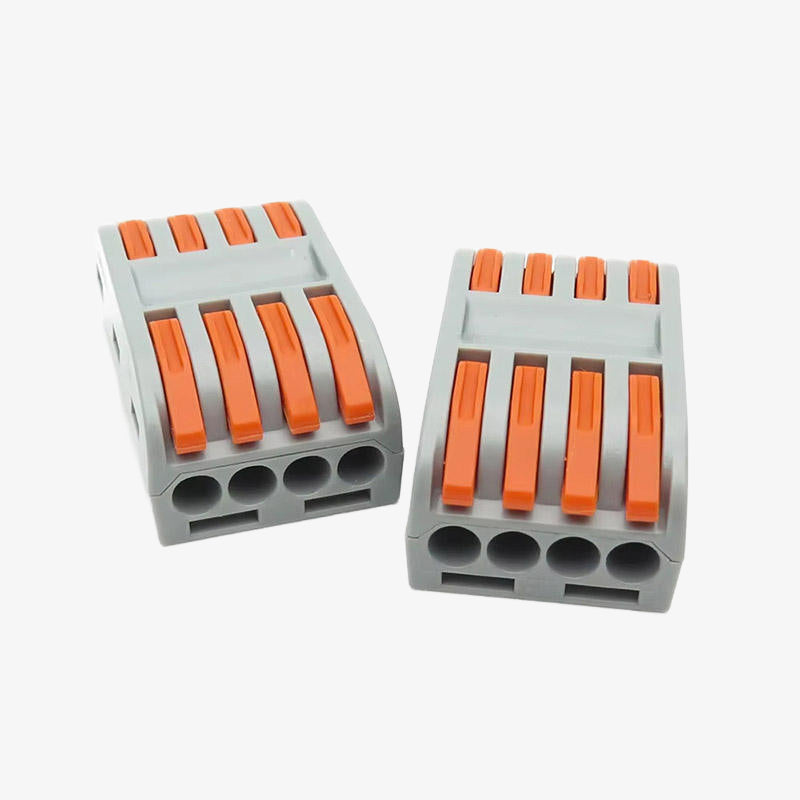

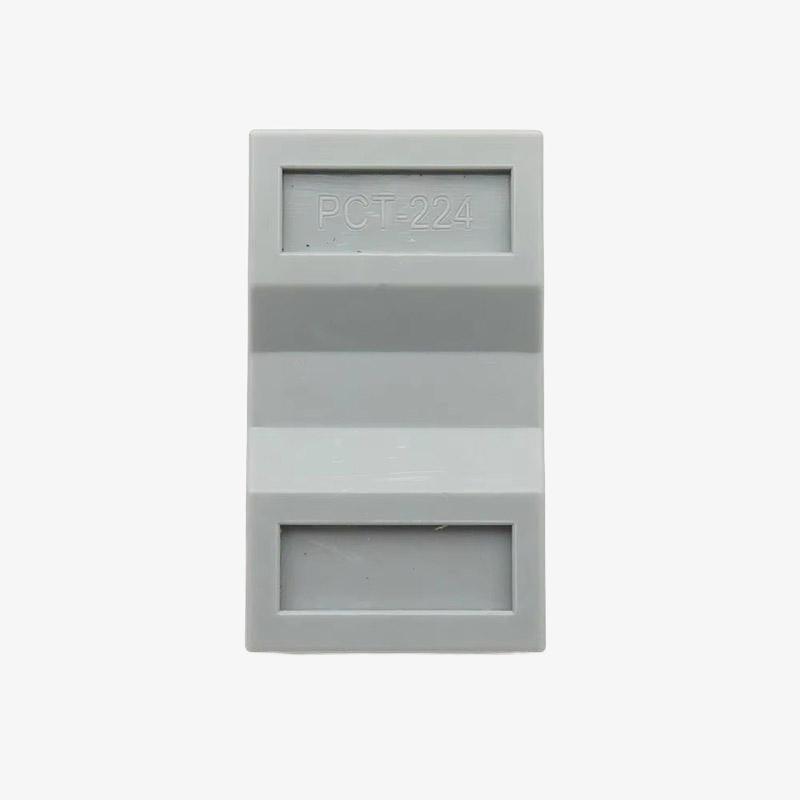

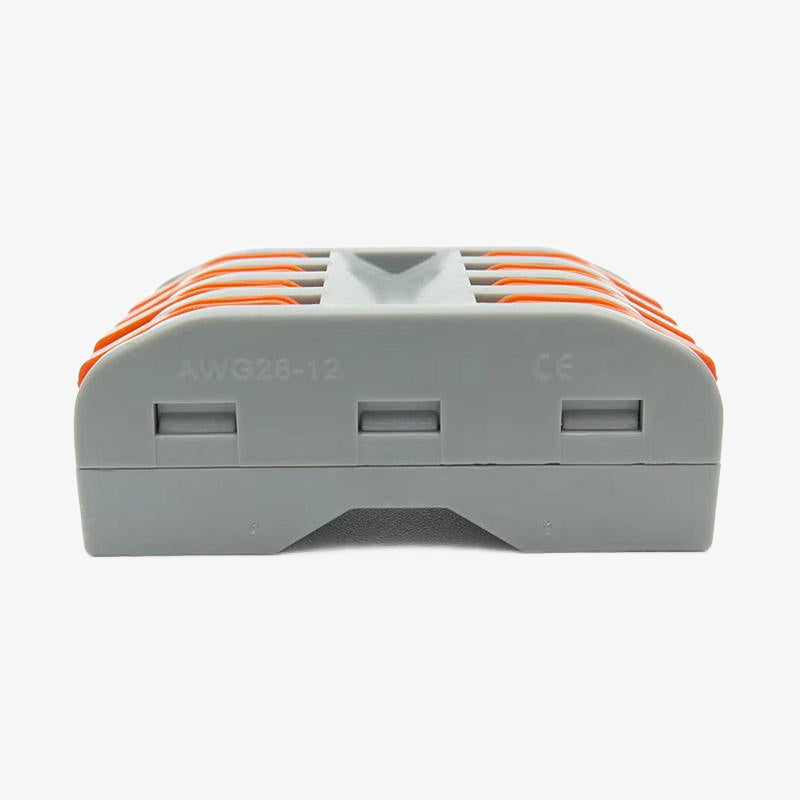

PCT-224 (SPL-4) Quick Connection Terminal 4 Pole Wire Connector with Spring Lock Lever - 450V, 32A

The PCT-224 (SPL-4) Quick Connection Terminal is a 4-pole spring lever wire connector designed for fast, tool-free wiring of up to four individual conductors. Engineered for safety and ease of use, this connector supports solid, stranded, and flexible wires ranging from 0.08mm² to 2.5mm², making it suitable for a wide variety of residential, industrial, and lighting installations.

Its spring-lock lever mechanism offers a secure and reliable connection without the need for twisting, taping, or soldering. The transparent flame-retardant body allows for visual inspection of the wiring, ensuring correct placement and connection. Rated for 450V and 32A, it’s ideal for junction boxes, switchboards, and quick power distribution.

Features of PCT-224 (SPL-4) Quick Connection Terminal:

1. Tool-free spring lever locking system for easy and secure wiring
2. Supports solid and stranded wires from 0.08mm² to 2.5mm²
3. Accommodates up to 4 conductors simultaneously
4. Reusable design – ideal for prototyping or temporary connections
5. Flame-retardant housing with high mechanical strength
6. Transparent shell for clear wire visibility and troubleshooting
7. Vibration-resistant and corrosion-free contact points

Specifications of PCT-224 (SPL-4) Wire Connector:

• Model: PCT-224 / SPL-4
• Type: 4-Pole Wire Connector
• Connection Mechanism: Spring Lock Lever
• Rated Voltage: 450V AC
• Rated Current: 32A
• Wire Range: 0.08mm² – 2.5mm² (28–14 AWG)
• Housing Material: Flame-retardant Polycarbonate (PC)
• Operating Temperature: -40°C to +85°C

• Suitable Applications: Electrical circuits, lighting fixtures, junction boxes, etc.

Package Includes:

1 × PCT-224 (SPL-4) Quick Connection Terminal – 4 Pole Wire Connector with Spring Lock Lever – 450V, 32A
