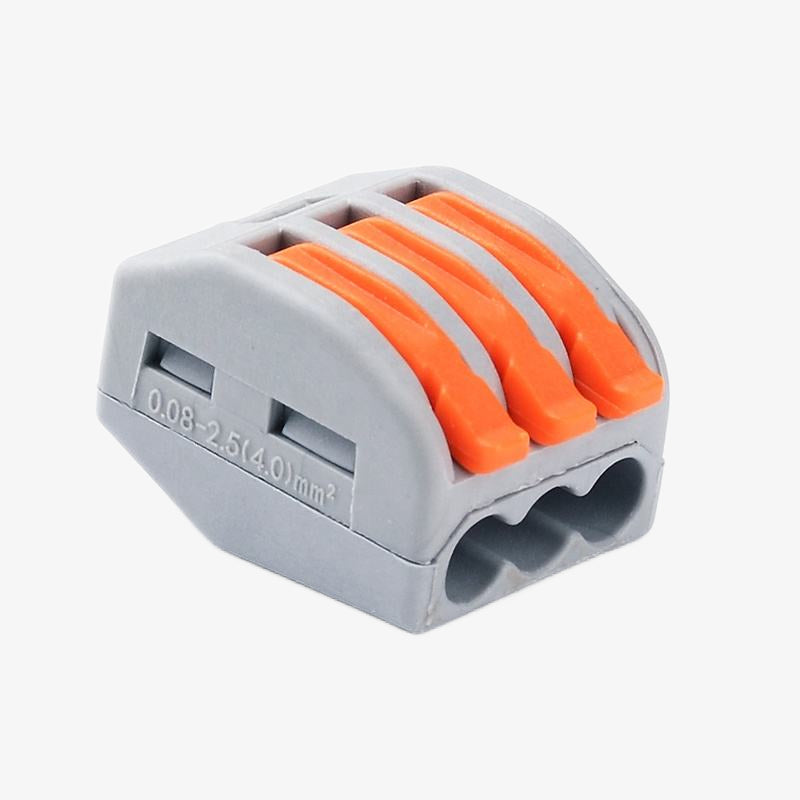

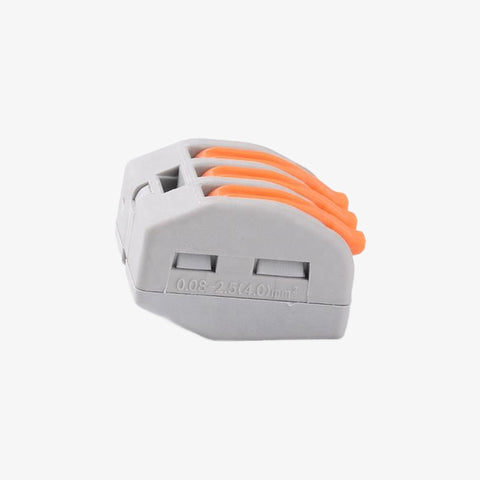

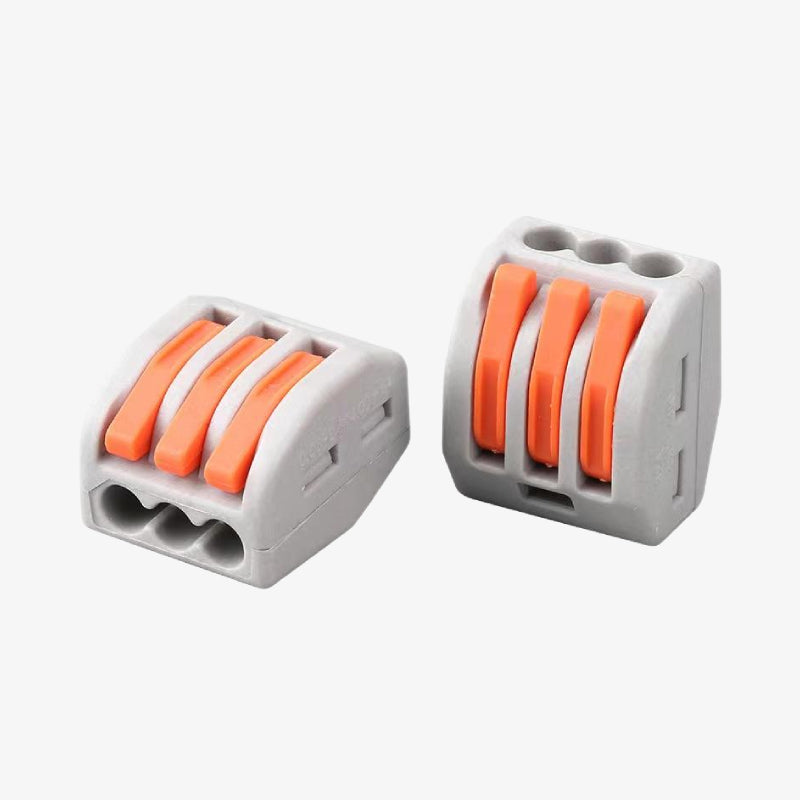

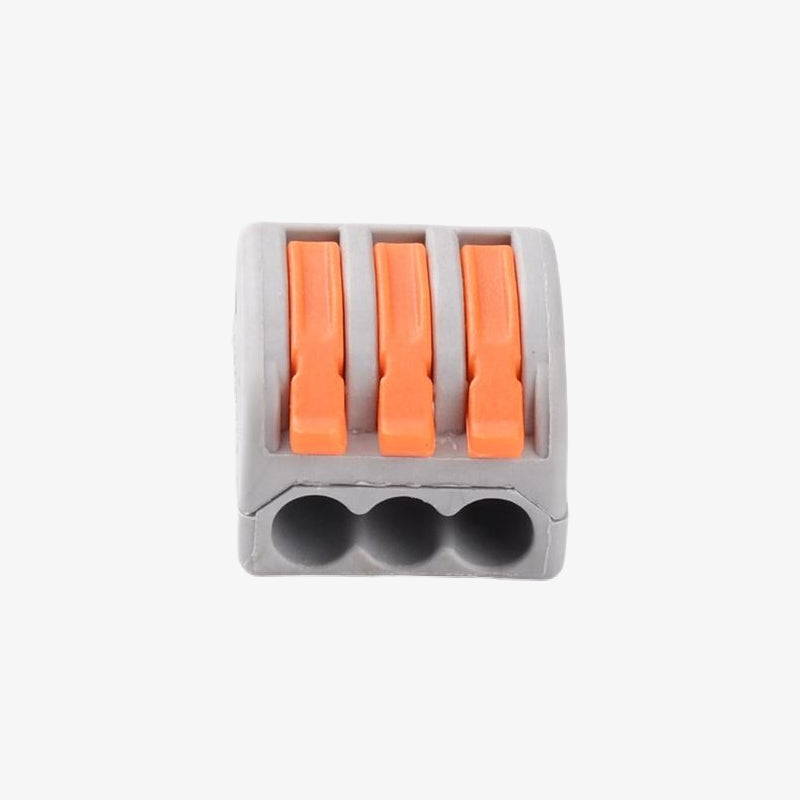

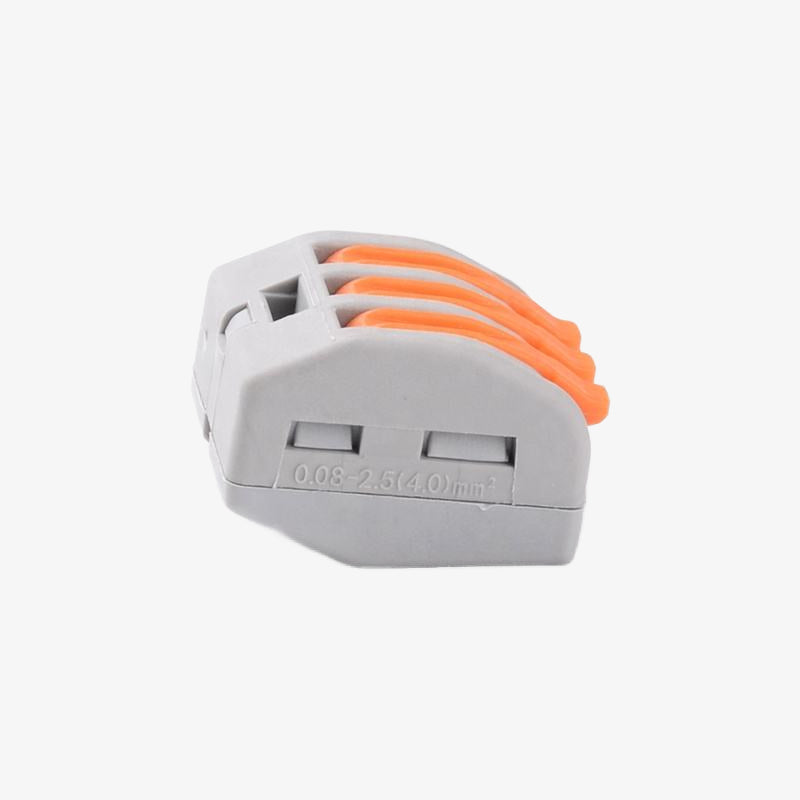

PCT-213 0.08–2.5mm² 3 Pole Wire Connector Terminal Block with Spring Lock Lever - 450V, 32A

The PCT-213 3-Pole Wire Connector Terminal Block offers a compact and efficient solution for quick, tool-free wiring of up to three individual wires. This terminal block is designed with a spring lock lever mechanism, enabling secure and reliable connections for solid, stranded, or flexible wires ranging from 0.08mm² to 2.5mm² (28–14 AWG).

Ideal for residential, industrial, and DIY wiring applications, the PCT-213 ensures safe operation under 450V and 32A. Its transparent flame-retardant housing allows easy visual inspection of the wiring, while the compact form factor makes it perfect for tight installation spaces like junction boxes and distribution boards.

Features of PCT-213 3 Pole Wire Connector Terminal Block:

1. Tool-free spring lever locking mechanism for fast and secure wiring
2. Accommodates solid, stranded, and flexible wires (0.08mm²–2.5mm²)
3. Suitable for 3-conductor connections
4. Flame-retardant and transparent PC housing
5. High mechanical strength with reusable design
6. Strong resistance to vibrations and corrosion
7. Ideal for quick wire connections in switchboards and lighting systems

Specifications of PCT-213 Wire Connector:

• Model: PCT-213
• Type: 3-Pole Wire Connector
• Connection Mechanism: Spring Lock Lever
• Rated Voltage: 450V AC
• Rated Current: 32A
• Supported Wire Size: 0.08mm² – 2.5mm² (28–14 AWG)
• Housing Material: Flame-retardant Polycarbonate
• Operating Temperature: -40°C to +85°C
• Color: Transparent body with orange levers
• Applications: Electrical panels, lighting fixtures, junction boxes, DIY wiring

Package Includes:

1 × PCT-213 0.08–2.5mm² 3 Pole Wire Connector Terminal Block with Spring Lock Lever – 450V, 32A
