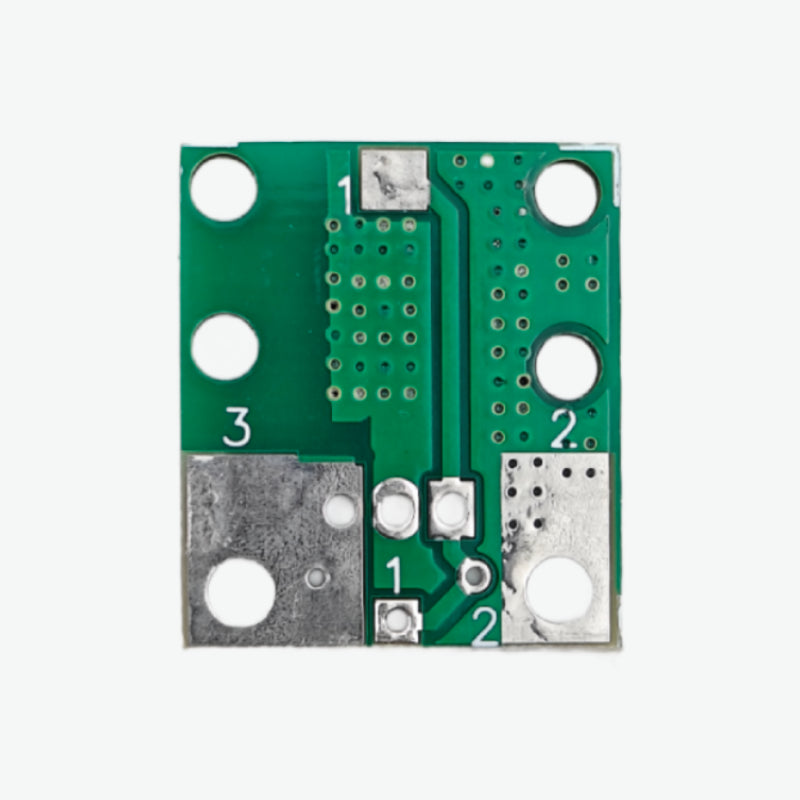

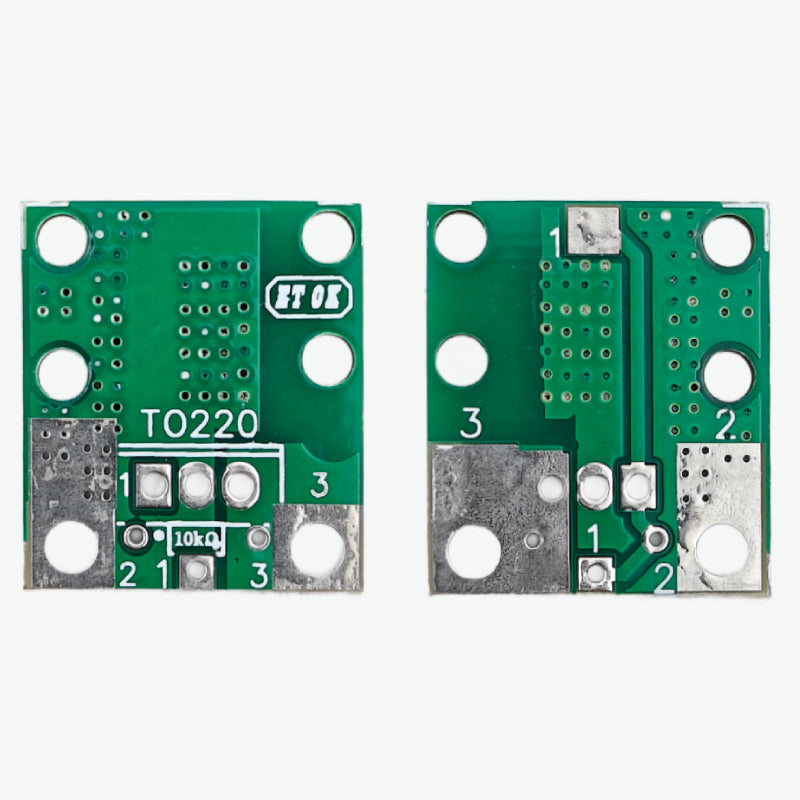

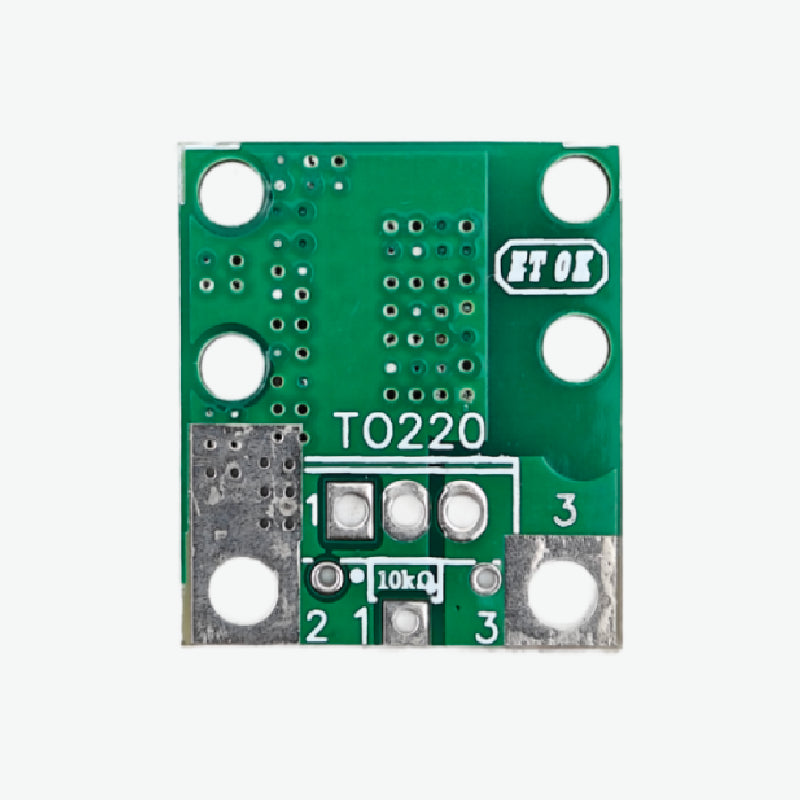

PCB for TO220 MOSFET Breakout Board
SKU:
MOD-QC3004
Availability:
17
In Stock
- Rs. 7.00
- Rs. 7.00
- Unit price
- per
Subtotal:
Rs. 7.00
Description
xThe PCB for TO220 MOSFET Breakout Board is a practical and easy-to-use adapter designed for mounting TO-220 package transistors or MOSFETs. It allows for clean and reliable wiring by converting the standard TO-220 pinout into a more accessible layout for breadboards or other prototyping systems. Ideal for power switching, motor control, and DIY electronics projects, this breakout board ensures better heat dissipation and easier component integration.
Features of PCB for TO220 MOSFET Breakout Board:
- Designed to fit TO-220 package components such as MOSFETs or transistors.
- Breaks out pins to a breadboard-friendly layout for easy prototyping.
- Wide pad spacing for secure soldering and stable mounting.
- Compact design suitable for power electronics and switching circuits.
- Ideal for motor drivers, LED drivers, and power management projects.
Specifications of PCB for TO220 MOSFET Breakout Board:
- Supported Package: TO-220 (e.g., IRF540N, TIP122, etc.)
- Pin Configuration: Standard 3-pin MOSFET/Transistor layout
- Board Type: Breakout adapter
- Material: High-quality FR4 PCB
- Application: Power electronics, switching, DIY circuit design
Package Includes:
1 × PCB for TO220 MOSFET Breakout Board
