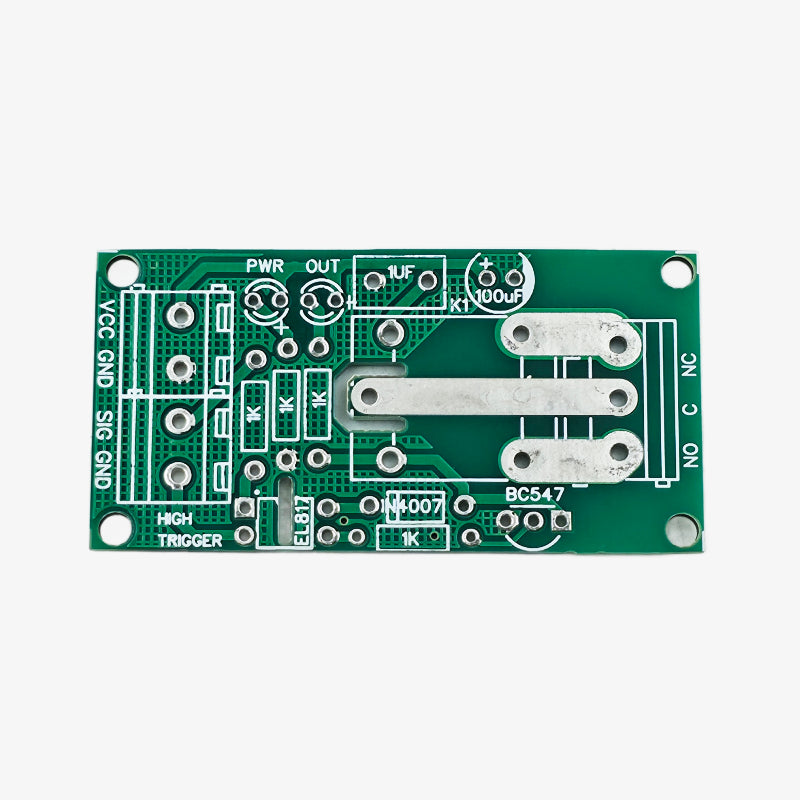

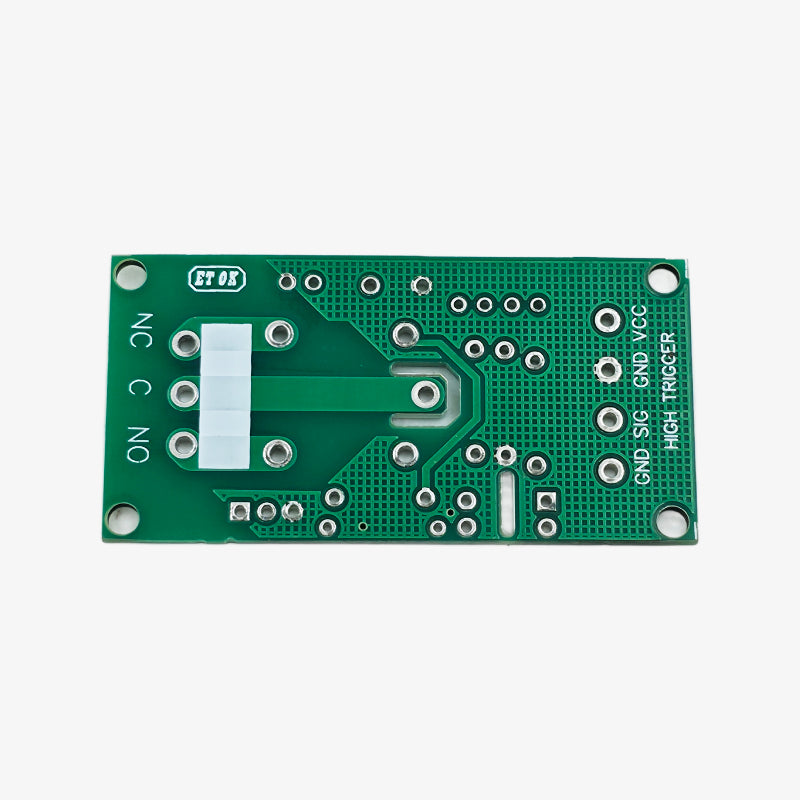

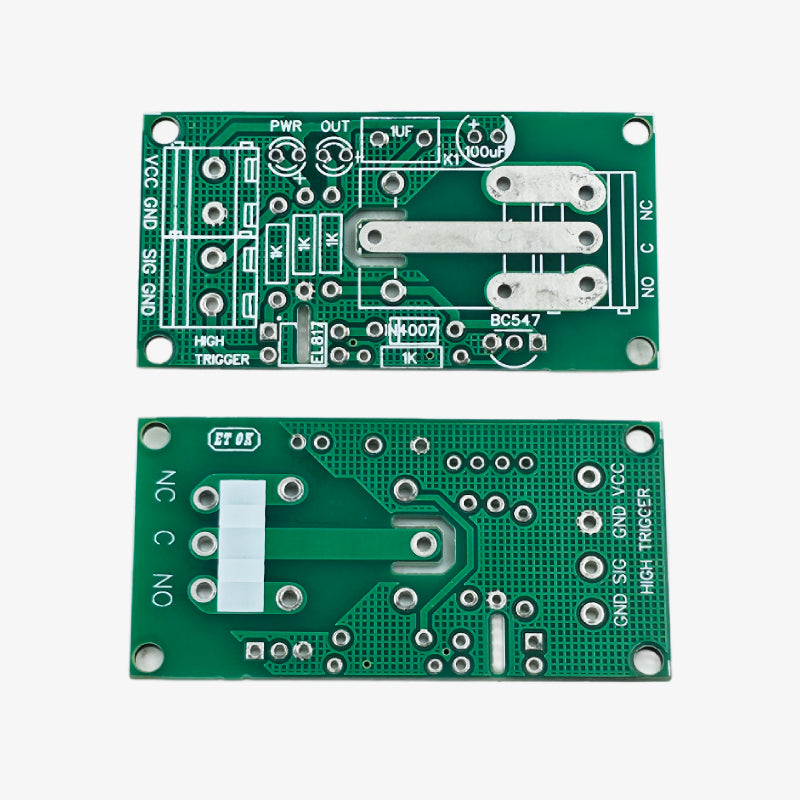

5V Relay Module with Optocoupler - Unsoldered Kit with PCB
SKU:
MOD-QC3703
Availability:
Out Of Stock
- Rs. 72.00
- Rs. 72.00
- Unit price
- per
Subtotal:
Rs. 72.00
Description
xThis 5V Relay Module with Optocoupler Unsoldered Kit is designed as a reliable switching platform using a 5V relay and optocoupler isolation. It offers a clean layout for safe low-voltage to high-voltage interfacing and makes prototyping smoother across automation and control applications.
Features:
- Supports 5V relay and optocoupler-based isolation
- Provides organized routing for safe switching control
- Includes full set of unsoldered components for DIY assembly
- Compact layout suitable for embedded and automation projects
Specifications:
- Compatibility: 5V relay + optocoupler-based input
- Board Type: Relay switching and isolation module
- PCB Material: High-quality FR4
- PCB Thickness: 1.6mm
- Component Type: Fully unsoldered DIY kit

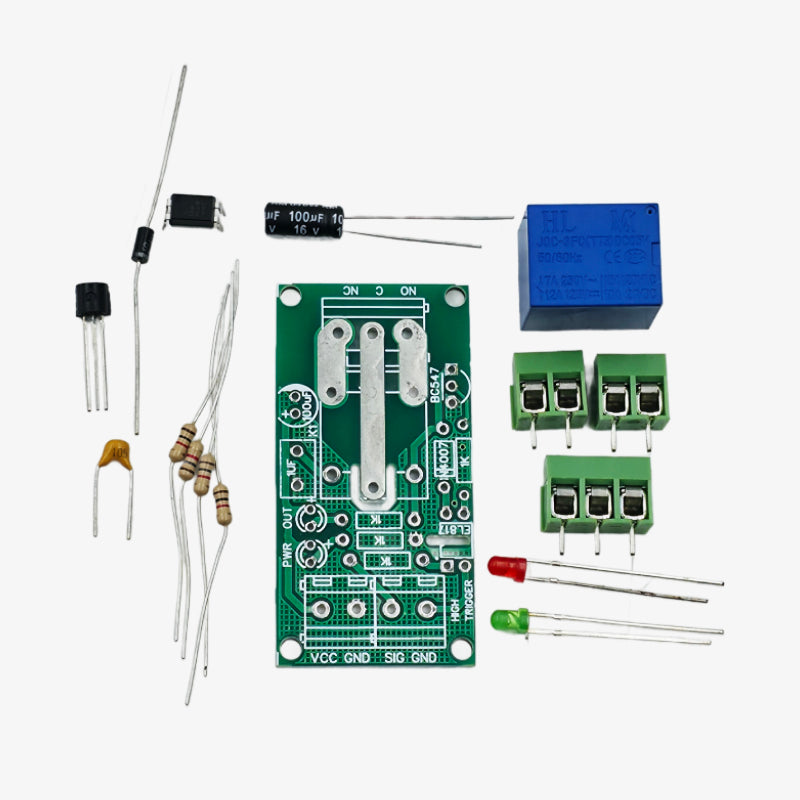

Package Includes:
1 × PCB For 5V Relay Module
1 × 3 pin screw terminal block
1 × JQC-3F(T73) 5V relay
1 × 1N4007 diode
1 × red LED
1 × green LED
1 × 105 ceramic capacitor
1 × BC547 transistor
1 × 100uF 16V electrolytic capacitor
1 × EL817 optocoupler
2 × 2 pin screw terminal block
4 × 1kΩ resistor
