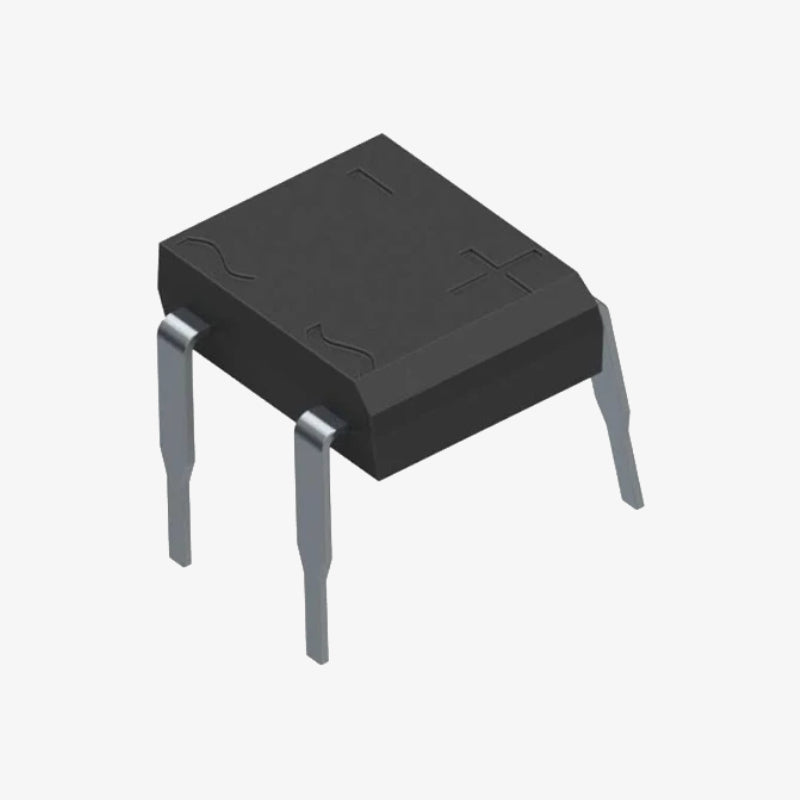

DB207 2A 1000V Single Phase Bridge Rectifier Module - 4-Pin DIP Package
DB207 2A 1000V Single Phase Bridge Rectifier Module - 4-Pin DIP Package

Free Shipping

Free standard shipping on all orders over INR 500

COD Available

On all the orders above INR 500

Free Returns

*Terms & Conditions Applied

Customer Assistance

Contact Us : 0141-4946677 or support@quartzcomponents.com

PC817 Transistor Output Optocoupler IC - DIP-4 Package

Brand: GENERIC
SKU: CMP-QC6270
Availability: 100 In Stock
Rs. 6.00
Subtotal: Rs. 6.00
Description
Description
x

PC817 Transistor Output Optocoupler IC - DIP-4 Package is a general-purpose optocoupler containing an infrared emitting diode optically coupled to a phototransistor output. It provides electrical isolation between the input and output circuits and is housed in a compact 4-pin DIP package. The PC817 series offers high isolation voltage, transistor output, and a current transfer ratio specified at an LED forward current of 5 mA.

PC817 Transistor Output Optocoupler IC - DIP-4 Package Datasheet

Features:

  1. General-purpose phototransistor optocoupler
  2. Infrared LED input with phototransistor output
  3. Single-channel configuration
  4. 4-pin DIP package
  5. High input-to-output isolation
  6. 5 kVrms isolation voltage
  7. Collector-emitter voltage up to 80V
  8. Collector current up to 50mA
  9. CTR of 50% to 600%
  10. Low collector-emitter saturation voltage
  11. RoHS compliant
  12. Through-hole mounting

Specifications:

Specification Value
Product Type Phototransistor Optocoupler
Number of Channels 1
Input Type Infrared LED
Output Type Phototransistor
Package DIP-4
Number of Pins 4
Mounting Type Through Hole
Isolation Voltage 5 kVrms
Collector-Emitter Voltage 80V
Collector Current 50mA
Forward Current 50mA
Input Reverse Voltage 6V
Forward Voltage 1.2V typical, 1.4V maximum
Current Transfer Ratio (CTR) 50% to 600%
CTR Test Condition IF = 5mA, VCE = 5V
Collector-Emitter Saturation Voltage 0.1V typical, 0.2V maximum
Isolation Resistance 5 × 10¹⁰Ω minimum
Floating Capacitance 0.6pF typical
Cut-Off Frequency 80kHz typical
Rise Time 4µs typical
Fall Time 3µs typical
Operating Temperature -30°C to +100°C
Storage Temperature -55°C to +125°C
RoHS Yes

Pin Diagram:-

Also Check These Products:-

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 × PC817 Transistor Output Optocoupler IC - DIP-4 Package
