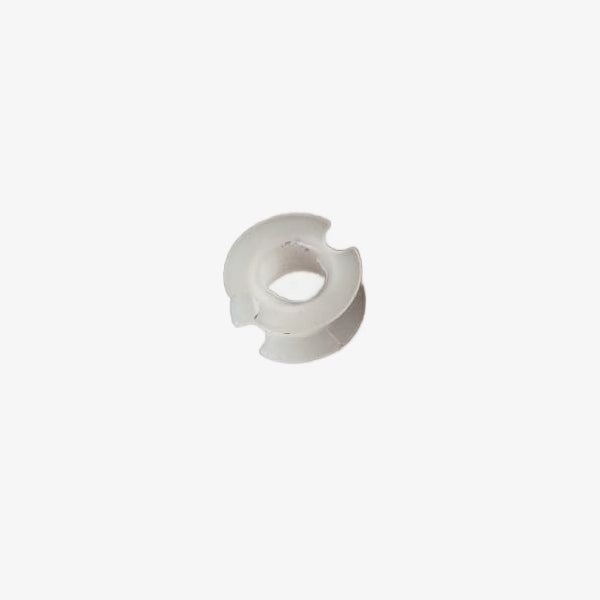

A P9 coil bobbin is a component designed to hold wire windings in inductors and transformers, specifically tailored for use with P9/5 ferrite pot cores. These bobbins facilitate efficient winding and provide structural support, ensuring consistent electrical performance.
Key Features:
- Compatibility: Designed for P9/5 ferrite pot cores, commonly used in applications requiring low leakage inductance and high Q factors.
- Material: Typically made from thermoplastic or thermosetting materials, offering high thermal stability and electrical insulation.
- Design: Features flanges to prevent wire slippage and may include slots or guides to assist in uniform winding.
Applications:
- Transformers: Used in power and signal transformers to maintain winding integrity and insulation.
- Inductors: Employed in various inductor designs, including power inductors and filter inductors, to ensure consistent inductance values.
- Telecommunication Equipment: Integral in components requiring precise inductance and minimal electromagnetic interference.
