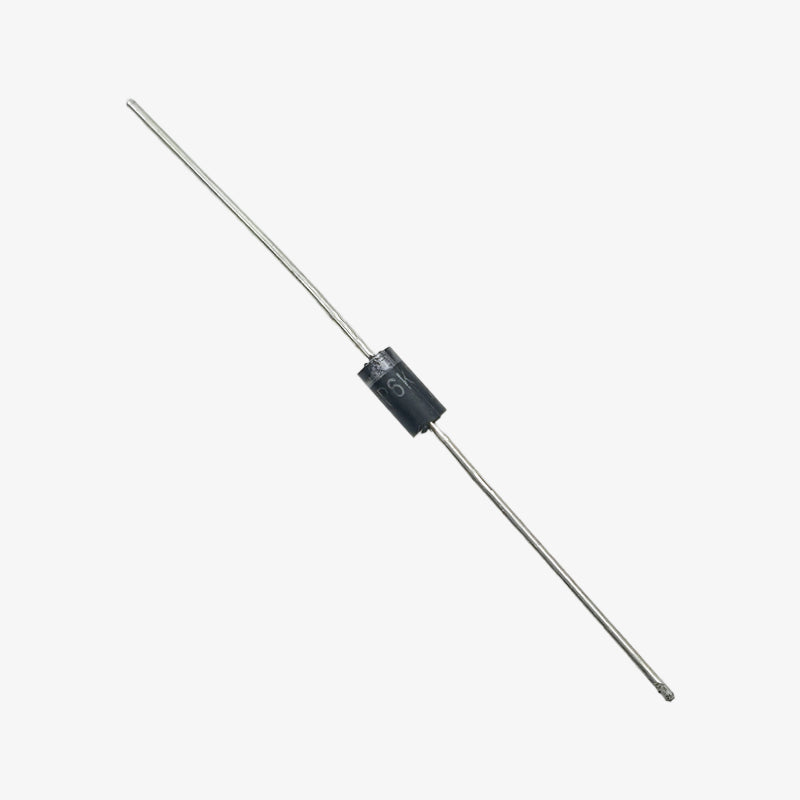

P6KE540A Transient Voltage Suppressor Diode - DO-15
SKU:
CMP-QC3747
Availability:
2995
In Stock
- Rs. 32.00
- Rs. 32.00
- Unit price
- per
Subtotal:
Rs. 32.00
Description
xThe P6KE540A Transient Voltage Suppressor Diode - DO-15 is designed to protect sensitive electronic equipment from voltage surges caused by lightning, inductive switching, and other transient events. With its robust glass-passivated junction and rapid clamping action, it ensures reliable protection for industrial, automotive, and telecommunication systems. Ideal for safeguarding ICs, MOSFETs, and signal lines in high-voltage applications.
Features:
- 600 W peak pulse power capability with 10/1000 μs waveform
- Glass passivated chip junction for superior stability
- Fast response time and excellent clamping performance
- Low incremental surge resistance for consistent operation
- Halogen-free, RoHS compliant, and AEC-Q101 qualified
Specifications:
- Reverse Stand-off Voltage (VR): 459.0 V
- Breakdown Voltage (VBR): 513.0 V to 567.0 V
- Test Current (IT): 1 mA
- Maximum Clamping Voltage (VC): 740.0 V
- Maximum Peak Pulse Current (Ipp): 0.81 A
- Maximum Reverse Leakage (IR): 1 µA
- Peak Pulse Power Dissipation (PPPM): 600 W
- Operating Junction Temperature (TJ): -55°C to +175°C
- Storage Temperature (TSTG): -55°C to +175°C
Package Includes:
1 × P6KE540A Transient Voltage Suppressor Diode - DO-15
