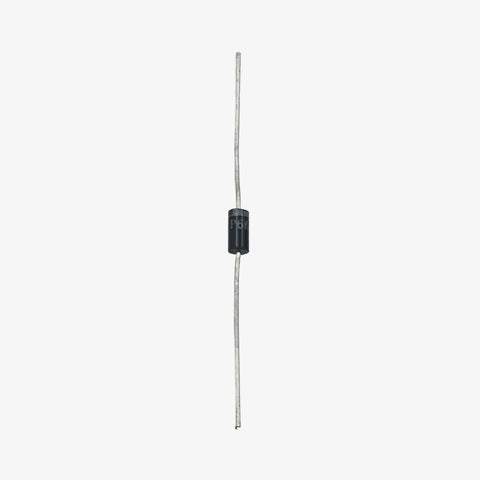

P6KE170A Transient Voltage Suppressor Diode - DO-15 Package
SKU:
CMP-QC3746
Availability:
2984
In Stock
- Rs. 5.00
- Rs. 5.00
- Unit price
- per
Subtotal:
Rs. 5.00
Description
xThe P6KE170A Transient Voltage Suppressor Diode is designed to protect sensitive electronics from high-energy voltage spikes generated by lightning strikes, inductive switching, and surge events. Its rugged DO-15 package and fast clamping action ensure stable and reliable protection for industrial, automotive, and general-purpose power systems. Ideal for safeguarding power rails, data interfaces, and surge-prone circuits.
Features:
- 600 W peak pulse capability with 10/1000 μs waveform
- Glass passivated die construction for enhanced reliability
- Fast response time for effective transient suppression
- Excellent clamping performance with low incremental resistance
- Halogen free and RoHS compliant construction
Specifications:
- Reverse Stand-off Voltage (VR): 145.0 V
- Breakdown Voltage (VBR): 162.0 V to 179.0 V
- Test Current (IT): 1 mA
- Maximum Clamping Voltage (VC): 234.0 V
- Maximum Peak Pulse Current (Ipp): 2.6 A
- Maximum Reverse Leakage (IR): 5 µA
- Peak Pulse Power Dissipation (PPPM): 600 W
- Operating Junction Temperature (TJ): -65°C to +175°C
- Storage Temperature (TSTG): -65°C to +175°C
Package Includes:
1 × P6KE170A Transient Voltage Suppressor Diode - DO-15
