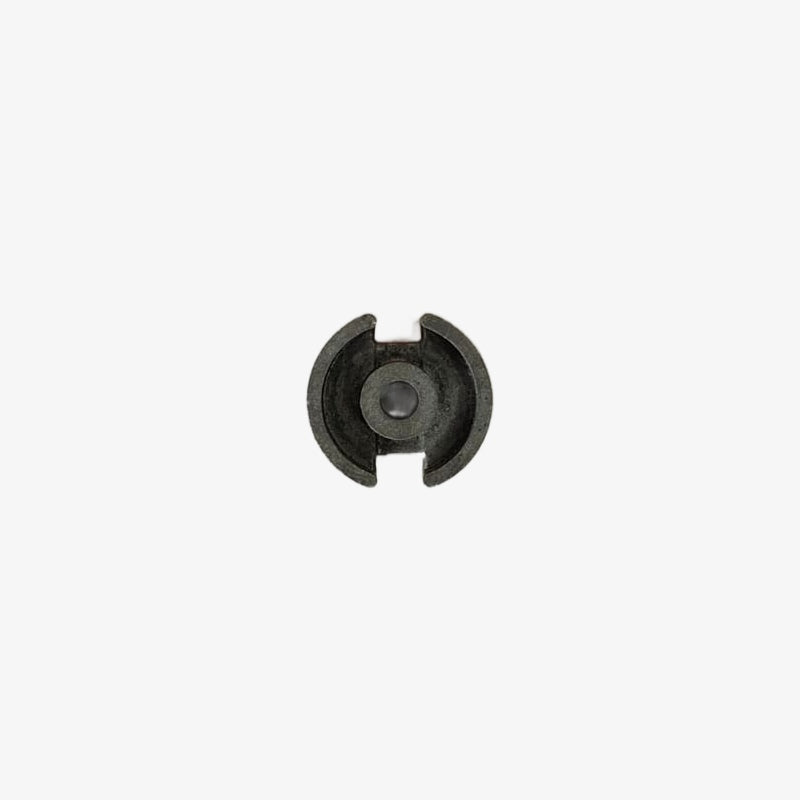

The P14/8 pot ferrite core is a magnetic component commonly used in inductors and transformers, offering low leakage inductance and high Q factors. Its enclosed design minimizes electromagnetic interference, making it suitable for applications such as broadband and narrowband transformers, telecom inductors, power transformers, power inductors, and inductive switches.
Key Specifications:
-
Dimensions:
- Outer Diameter (D): 14.3 mm
- Inner Diameter (d): 4.2 mm
- Height (H): 8.0 mm
-
Material: Typically made from Mn-Zn ferrite materials like 3C91, which offer high permeability and low core losses.
-
Inductance Factor (A_L): Varies based on material and air gap; for instance, a P14/8 core made from 3C91 material has an A_L value of approximately 2800 nH.
Applications:
- Transformers: Utilized in power and signal transformers to maintain winding integrity and insulation.
- Inductors: Employed in various inductor designs, including power inductors and filter inductors, to ensure consistent inductance values.
- Telecommunication Equipment: Integral in components requiring precise inductance and minimal electromagnetic interference.
