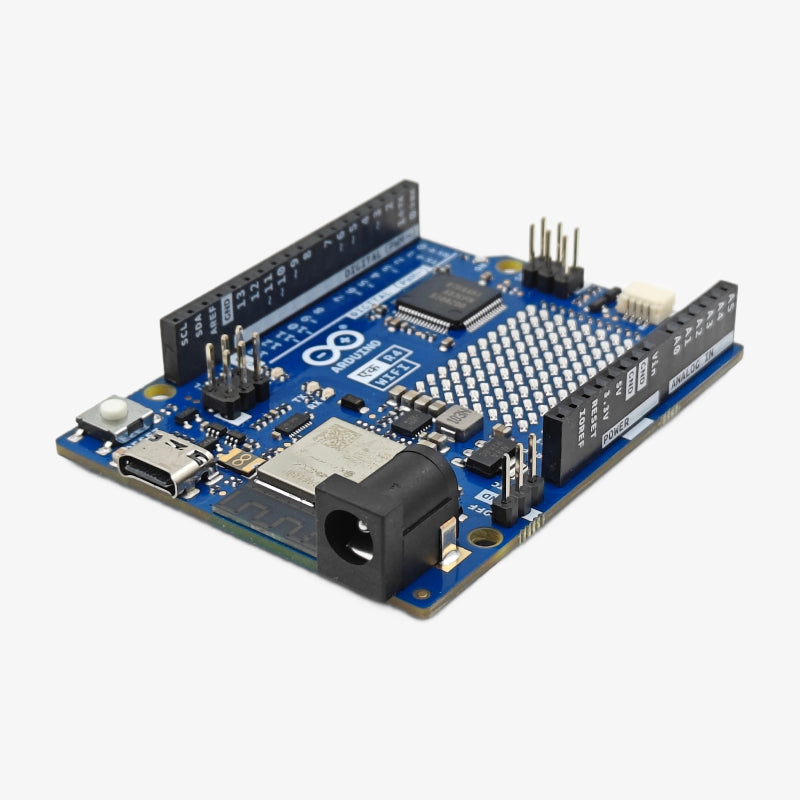

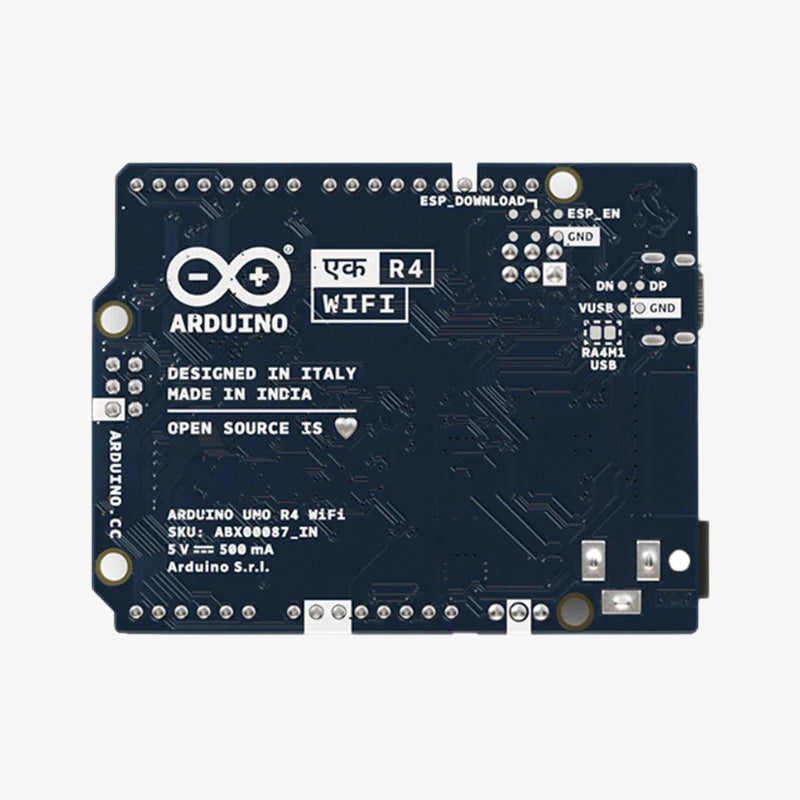

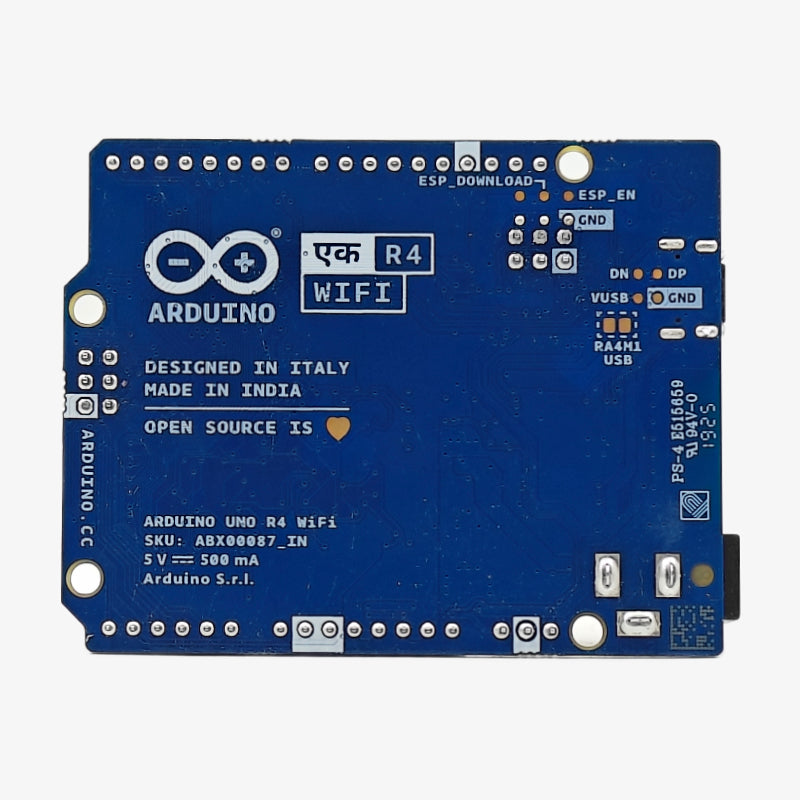

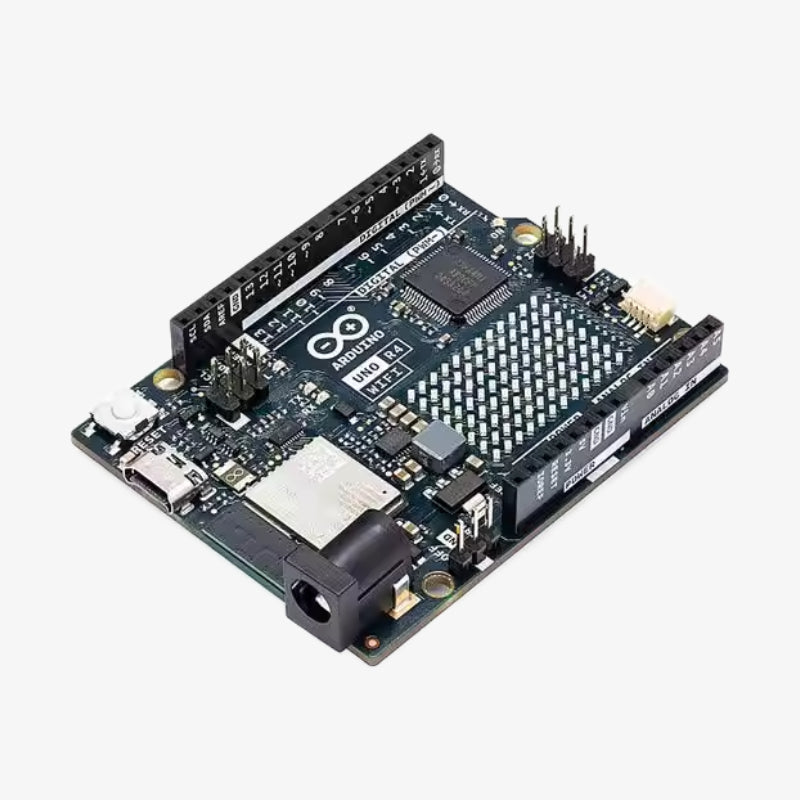

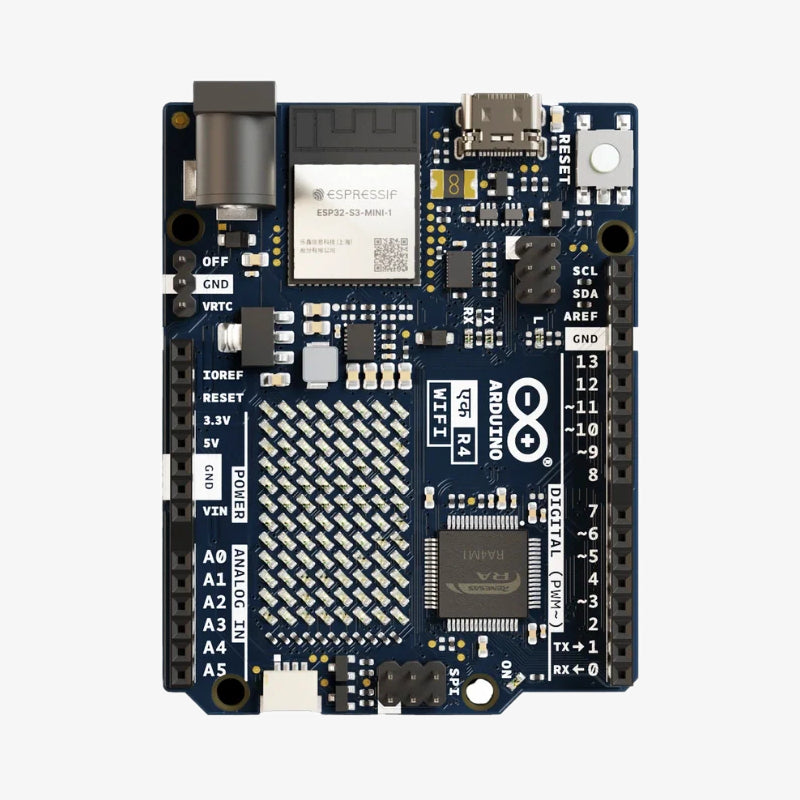

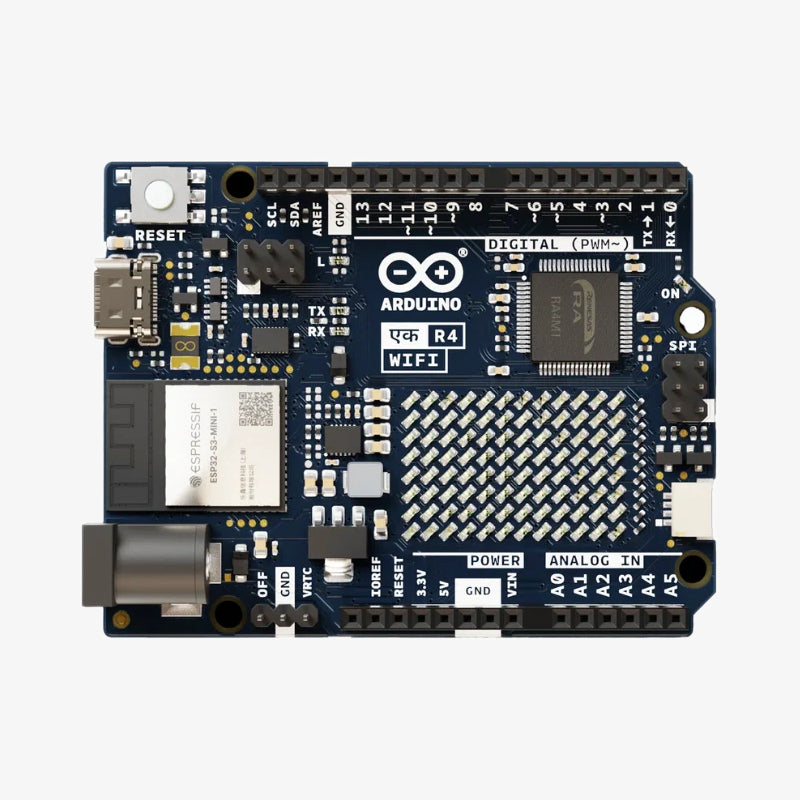

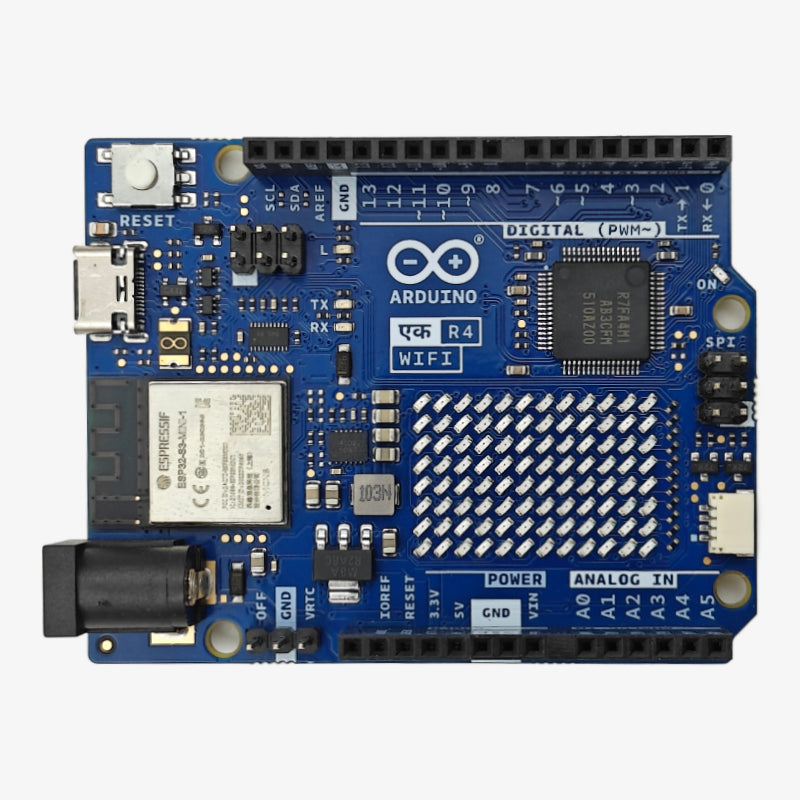

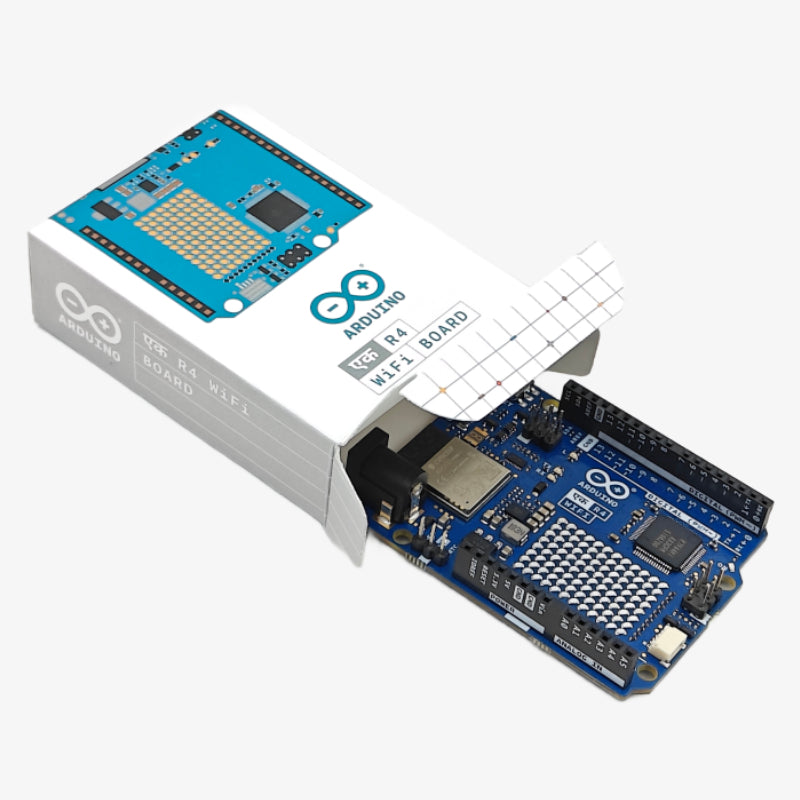

The Original Arduino UNO EK R4 WiFi is a powerful next-generation development board proudly made in India. Powered by the Renesas RA4M1 32-bit microcontroller and equipped with an ESP32-S3 module, it combines the simplicity of the classic UNO with modern capabilities like wireless connectivity, increased memory, and enhanced performance.
Designed for makers, students, and engineers, this board includes both Wi-Fi® and Bluetooth® connectivity, allowing for IoT project development right out of the box. It retains the UNO R3 form factor, ensuring compatibility with existing shields and accessories, while offering improved features like a USB-C port, onboard Qwiic connector, and additional onboard peripherals such as an RGB LED, a voltage regulator, and an OP AMP.
Features of Original Arduino UNO EK R4 WiFi – Made in India:
- Based on 32-bit Renesas RA4M1 Cortex®-M4 microcontroller (48MHz, 256kB Flash)
- Integrated ESP32-S3 module for Wi-Fi® and Bluetooth® connectivity
- Made in India under Arduino EK (एक) initiative
- UNO R3 shield-compatible form factor with enhanced performance
- USB-C connector for power and programming
- Onboard RGB LED, voltage regulator, Qwiic I2C connector, and OP AMP
- Increased number of GPIOs and more flexible power management
- Ideal for IoT, robotics, and real-world embedded projects
Specifications of Original Arduino UNO EK R4 WiFi:
- Main MCU: Renesas RA4M1 ARM Cortex-M4, 48 MHz
- Connectivity: ESP32-S3 for Wi-Fi® and Bluetooth® Low Energy
- Flash Memory: 256 kB (RA4M1) + 8MB (ESP32-S3)
- RAM: 32 kB SRAM
- Digital I/O Pins: 14 (6 PWM)
- Analog Inputs: 6
- USB Interface: USB-C
- Operating Voltage: 5V
- Input Voltage: 7V–12V (via VIN)
- Onboard peripherals: RGB LED, OP AMP, Qwiic connector, etc.
- Dimensions: Standard UNO size (68.6mm × 53.4mm)
Package Includes:
1 × Original Arduino UNO EK R4 WiFi – Made in India
