Official Arduino Portenta H7 Dual Core AI & IoT Development Board ABX00042

Brand: Arduino
SKU: DVB-QC6079
Availability: 5 In Stock
Rs. 10,494.00
Subtotal: Rs. 10,494.00
Description
Description
x

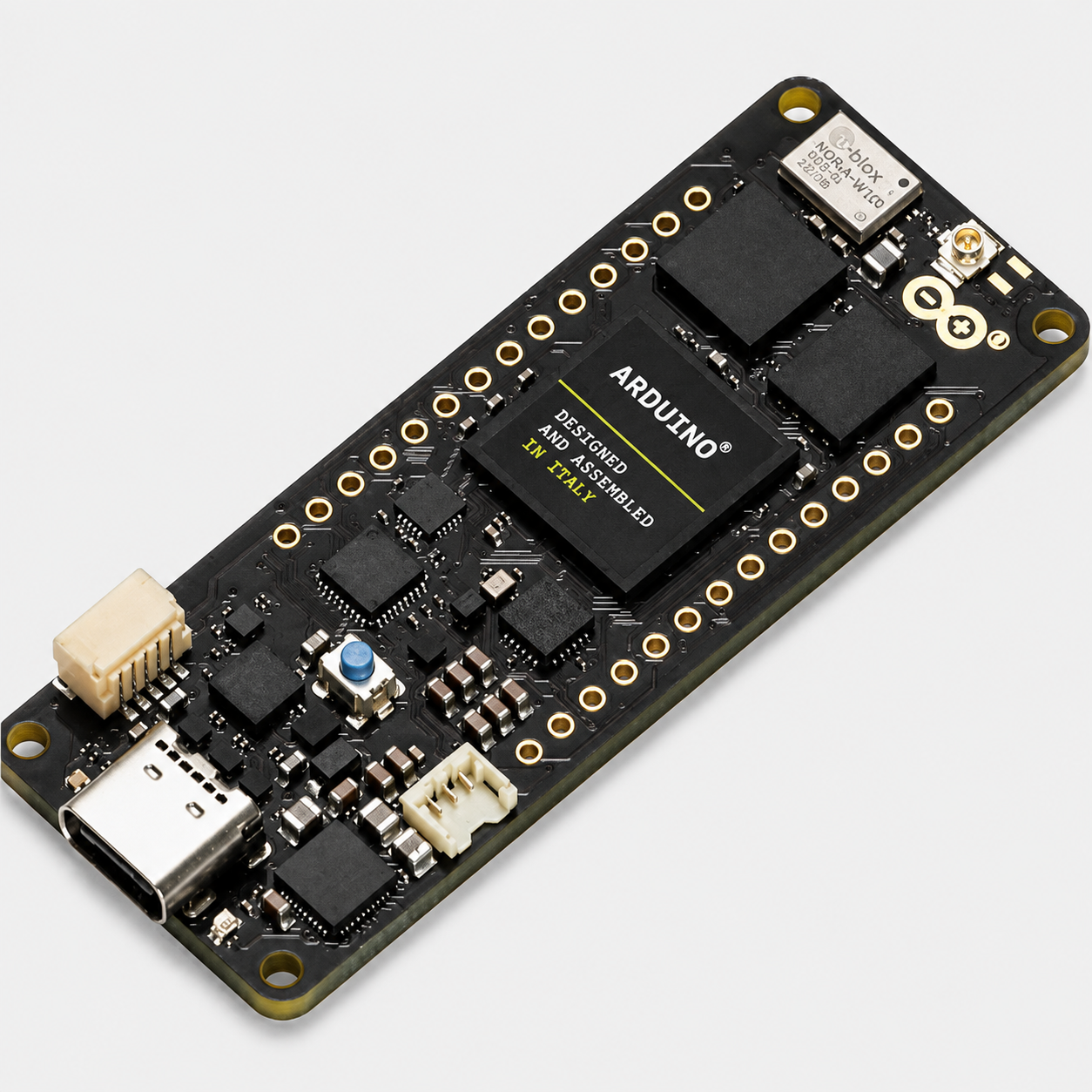

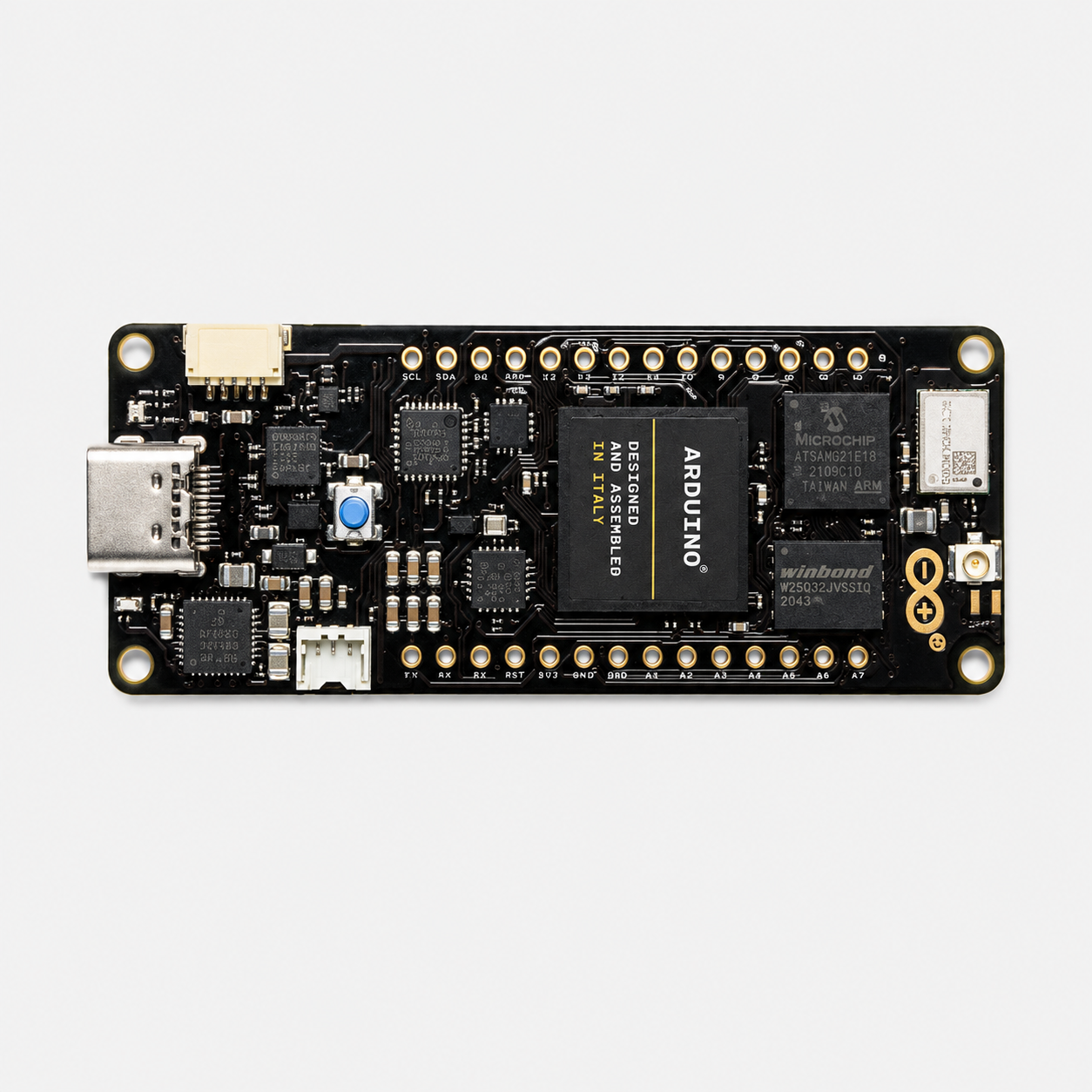

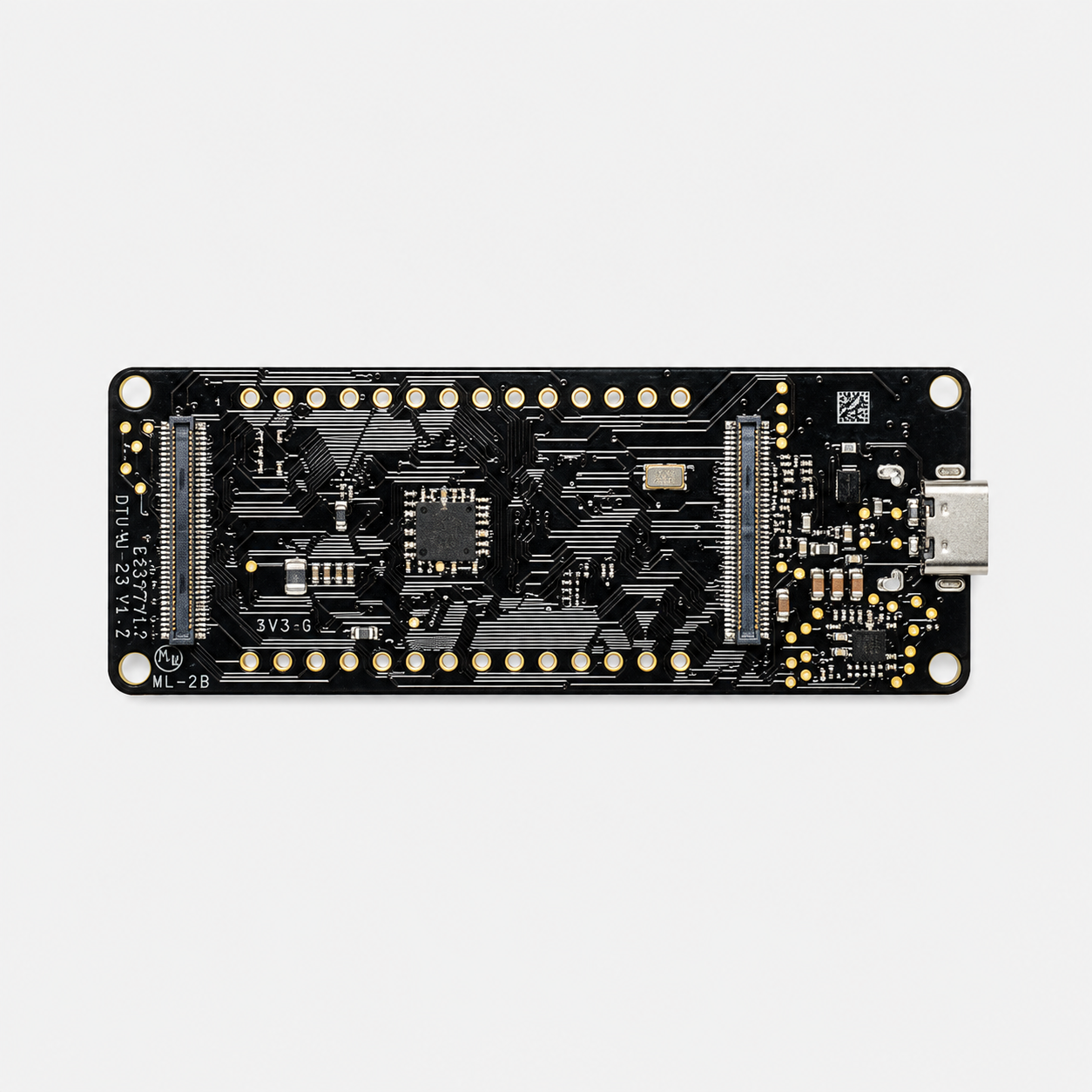

Official Arduino Portenta H7 Dual Core AI & IoT Development Board ABX00042 is a professional-grade development board powered by the dual-core STM32H747XI microcontroller. Combining a 480MHz Cortex-M7 core with a 240MHz Cortex-M4 core, it is designed for AI at the edge, industrial automation, robotics, machine vision, IoT, and high-performance embedded applications. With integrated Wi-Fi, Bluetooth®, USB-C, secure element, and extensive connectivity options, the Portenta H7 delivers exceptional computing power in a compact form factor.

Official Arduino Portenta H7 Dual Core Development Board ABX00042 Datasheet

Features:

  1. Dual-core STM32H747XI processor with Cortex-M7 and Cortex-M4 cores.
  2. Runs Arduino, Mbed OS, MicroPython, JavaScript, and TensorFlow Lite.
  3. Integrated Wi-Fi and Bluetooth® connectivity.
  4. Built-in USB Type-C with Host, Device, OTG, and DisplayPort support.
  5. Dedicated Chrom-ART graphics accelerator for GUI applications.
  6. Large external SDRAM and QSPI Flash memory.
  7. Industrial operating temperature range.
  8. Integrated secure element for hardware-based security.
  9. Compatible with Arduino IDE, PlatformIO, and Arduino Cloud.
  10. Ideal for AI, robotics, industrial automation, IoT, computer vision, and edge computing.

Specifications:

Parameter Value
Product Type AI & IoT Development Board
Model Arduino Portenta H7 (ABX00042)
Microcontroller STM32H747XI Dual-Core MCU
CPU Cores ARM Cortex-M7 @ 480MHz + Cortex-M4 @ 240MHz
Operating Voltage 3.3V
Input Voltage 5V (USB-C / VIN)
External SDRAM 8MB
External Flash Memory 16MB QSPI NOR Flash
Internal Memory 2MB Flash, 1MB RAM
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth® Classic & BLE
Secure Element NXP SE050C2
USB Interface USB Type-C (USB 2.0 HS, OTG, DisplayPort)
Ethernet 10/100 Ethernet PHY (via High-Density Connector)
GPIO Connectivity MKR Headers + Dual 80-Pin High-Density Connectors
Communication Interfaces UART, SPI, I²C, CAN, USB, Ethernet, SDIO, MIPI DSI
Graphics Chrom-ART Graphics Accelerator with JPEG Encoder/Decoder
Camera Interface 8-bit Camera Interface (Up to 80MHz)
ADC 3 × 16-bit ADC (Up to 36 Channels)
DAC 2 × 12-bit DAC
Battery Support Single-Cell 3.7V Li-Po with Onboard Charging
Operating Temperature -40°C to +85°C
Board Dimensions 66.04 × 25.40mm
Compatible Software Arduino IDE, Arduino Cloud, Mbed OS, PlatformIO, MicroPython, TensorFlow Lite
Applications AI at the Edge, Industrial Automation, Robotics, Machine Vision, IoT, PLCs, Data Acquisition, Embedded Systems, High-Performance Computing


Explore all Arduino Boards ->

Package Includes:

1 × Official Arduino Portenta H7 Dual Core AI & IoT Development Board ABX00042
