Official Arduino Nicla Vision ABX00051

Brand: Arduino
SKU: DVB-QC6080
Availability: 5 In Stock
Rs. 7,890.00
Subtotal: Rs. 7,890.00
Description
Description
x

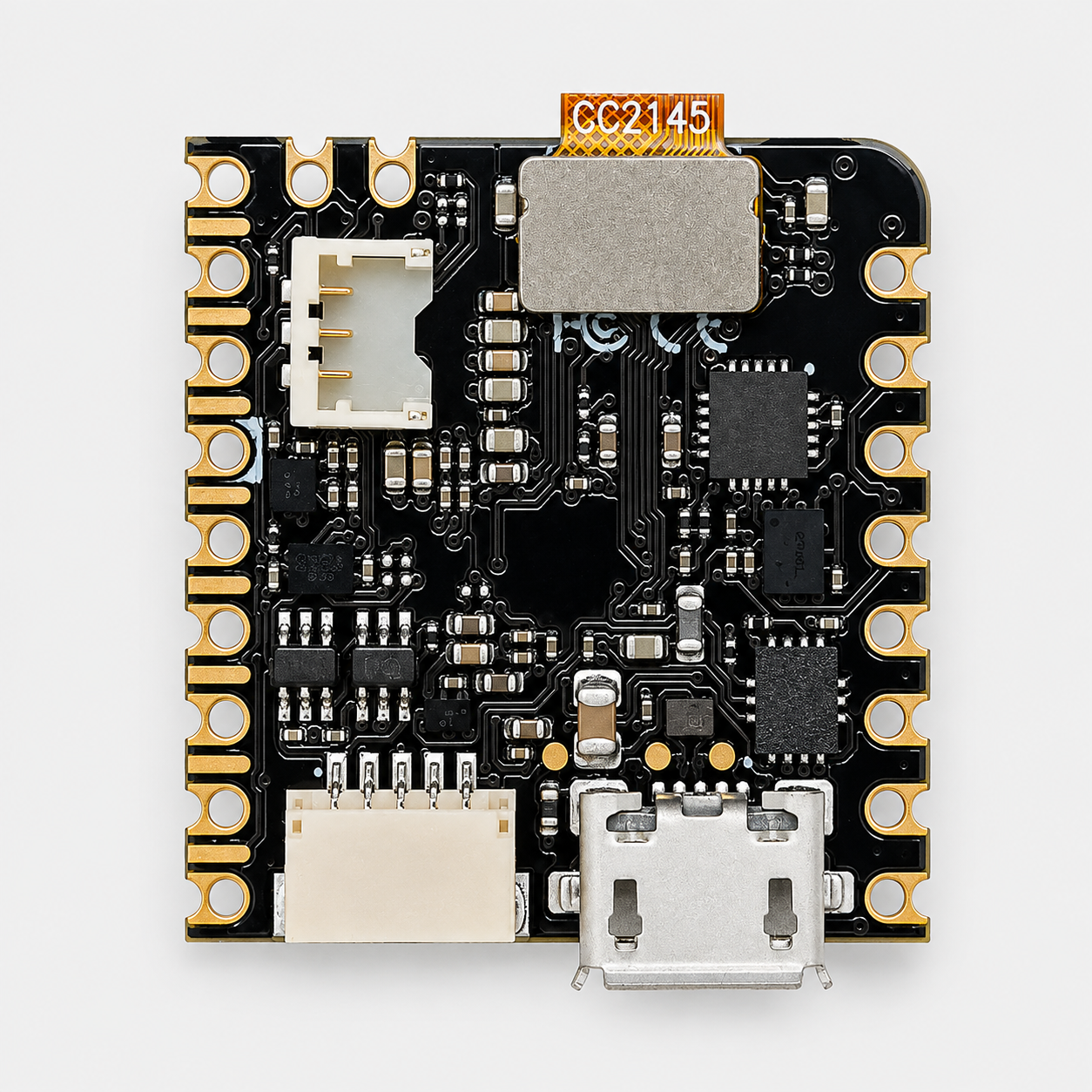

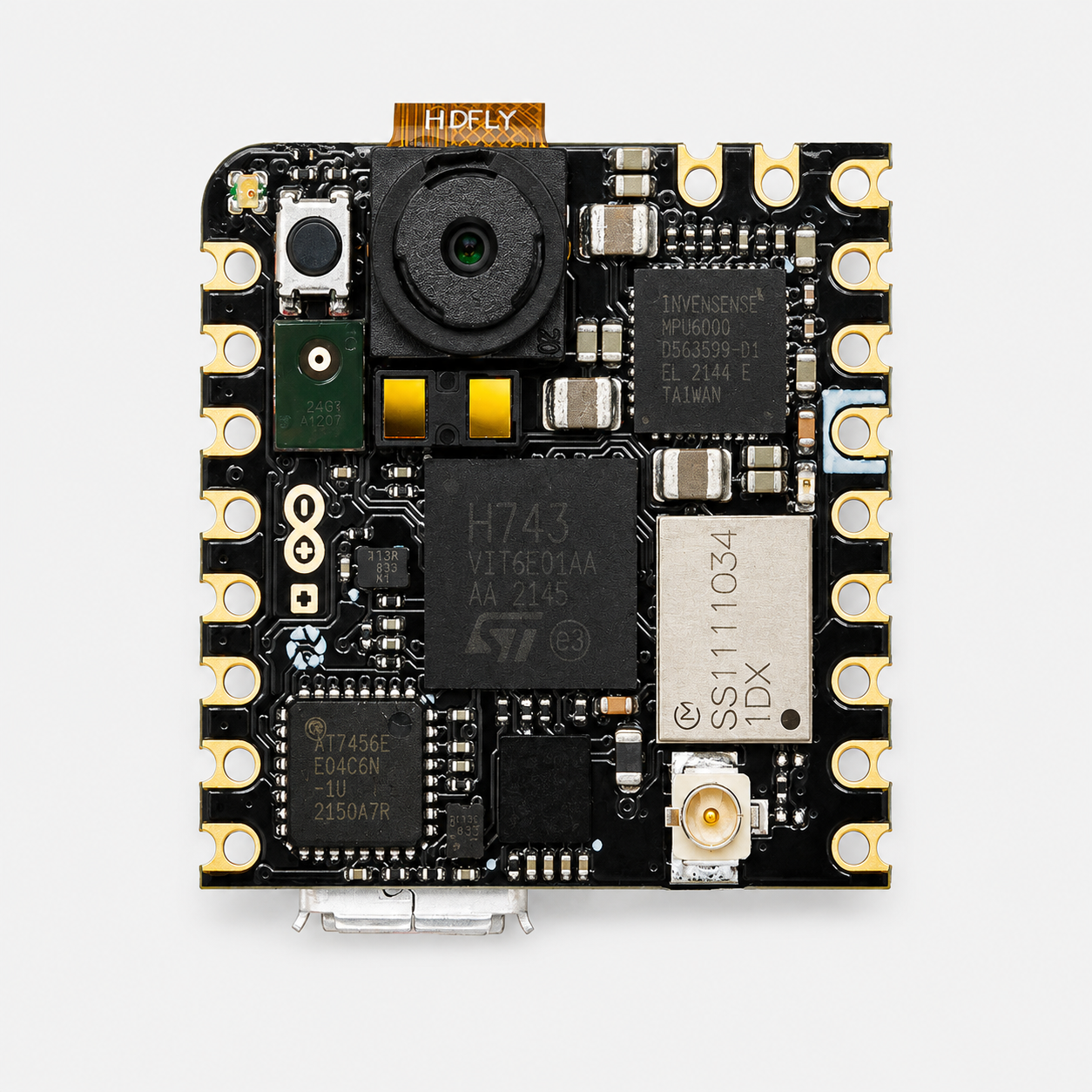

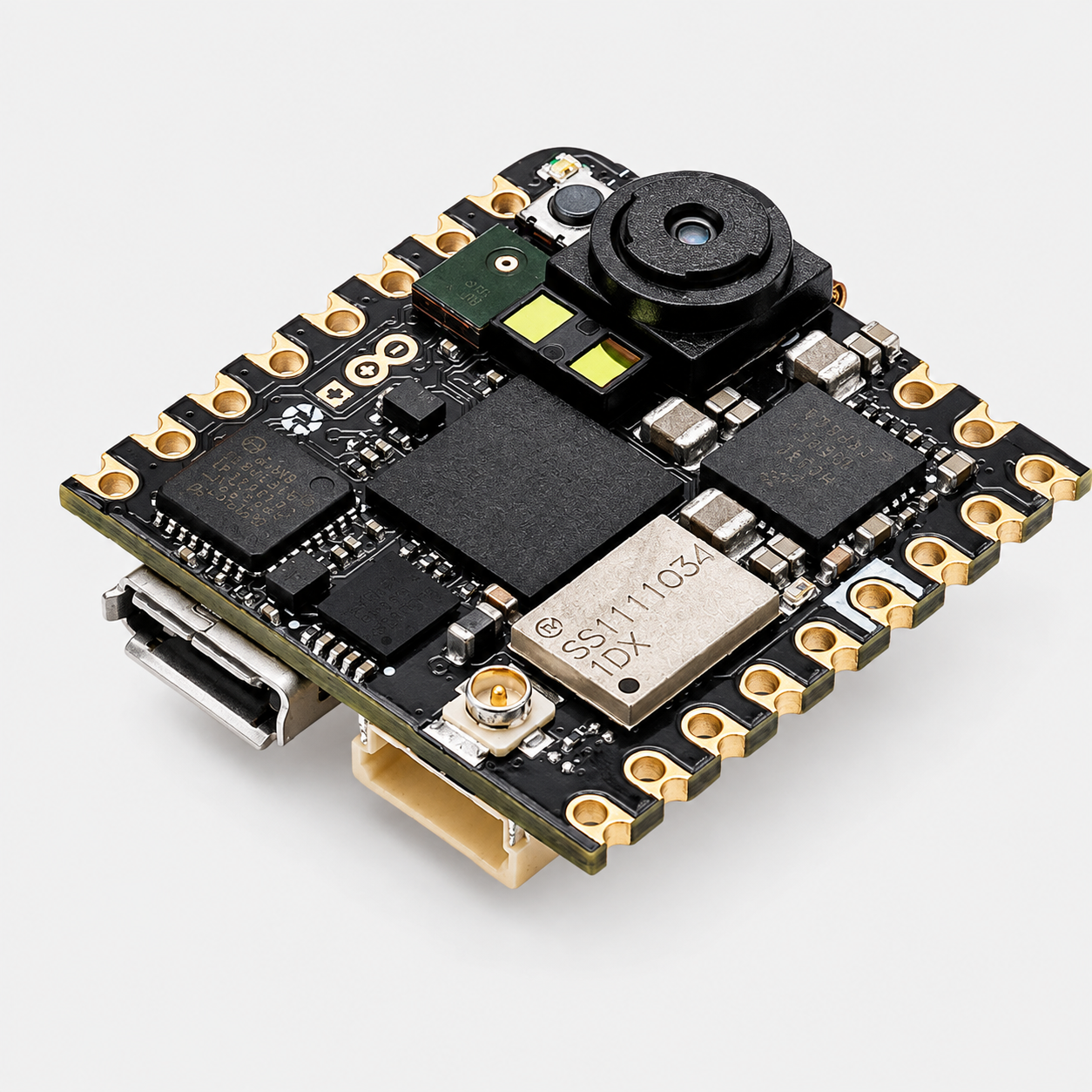

Official Arduino Nicla Vision ABX00051 is a compact, professional-grade AI vision development board designed for edge machine learning, computer vision, and IoT applications. Powered by the dual-core STM32H747 processor, it combines a 2MP color camera, 6-axis IMU, microphone, Time-of-Flight distance sensor, Wi-Fi®, Bluetooth® Low Energy, and onboard security in an ultra-compact 22.86 × 22.86mm form factor. It is ideal for TinyML, robotics, predictive maintenance, smart agriculture, industrial automation, and embedded vision projects.

Pinout Official Arduino Nicla Vision ABX00051

Features:

  1. Dual-core STM32H747 processor for high-performance AI applications.
  2. Integrated 2MP color camera for machine vision and image processing.
  3. Supports TinyML and Edge AI inference.
  4. Built-in 6-axis IMU, microphone, and ToF distance sensor.
  5. Wi-Fi® and Bluetooth® Low Energy connectivity.
  6. Compatible with Arduino IDE, OpenMV, MicroPython, and Arduino Cloud.
  7. Integrated secure element for hardware-based security.
  8. Ultra-compact 22.86 × 22.86mm form factor.
  9. Supports battery-powered standalone operation.
  10. Ideal for computer vision, robotics, IoT, smart agriculture, and industrial automation.

Specifications:

Parameter Value
Product Type AI Vision Development Board
Model Arduino Nicla Vision ABX00051
Microcontroller STM32H747AII6 Dual-Core
CPU Cores ARM Cortex-M7 @ 480MHz + Cortex-M4 @ 240MHz
Camera 2MP Color Camera
Memory 2MB Flash, 1MB RAM
External Storage 16MB QSPI Flash
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth® Low Energy 4.2
Motion Sensor 6-Axis IMU (LSM6DSOX)
Distance Sensor VL53L1CBV0FY/1 Time-of-Flight Sensor
Microphone MP34DT05 Digital MEMS Microphone
Security NXP SE050C2 Secure Element
USB Interface High-Speed USB 2.0 (480Mbps)
Battery Support 3.7V Li-Po with Onboard Charger & Fuel Gauge
Communication Interfaces UART, SPI, I²C (ESLOV), GPIO, ADC
I/O Logic Voltage Programmable 1.8V – 3.3V
Board Dimensions 22.86 × 22.86mm
Operating Temperature -20°C to +70°C
Software Support Arduino IDE, OpenMV, MicroPython, Arduino Cloud, TensorFlow Lite
Applications Edge AI, TinyML, Machine Vision, Object Recognition, Robotics, Predictive Maintenance, Smart Agriculture, Industrial IoT, Asset Tracking


Explore all Arduino Boards ->

Package Includes:

1 × Official Arduino Nicla Vision ABX00051
