NMC battery Protection Module 1S 5Amps NMC battery Protection Module 1S 5Amps

QC0839

18 In stock

Rs. 65.00
-
+
Rs. 65.00
(inc. GST)
[Delivery: 2 to 5 days]

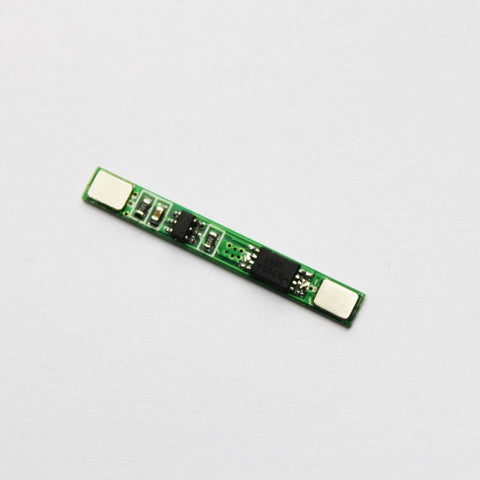

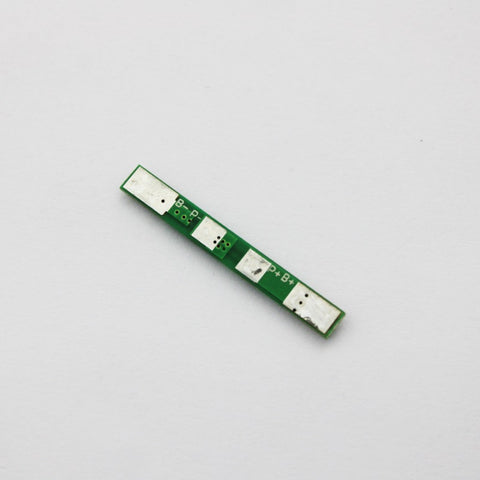

 This is a 1S protection module for the NMC (Lithium Manganese Cobalt Oxide) batteries. This board has the following protective functions from: over-charge, over-discharge, over-current, over-temperature and short-circuit. It is designed to protect lithium-ion/polymer battery for one-cell lithium-ion/polymer battery powered systems, such as cellular phones.

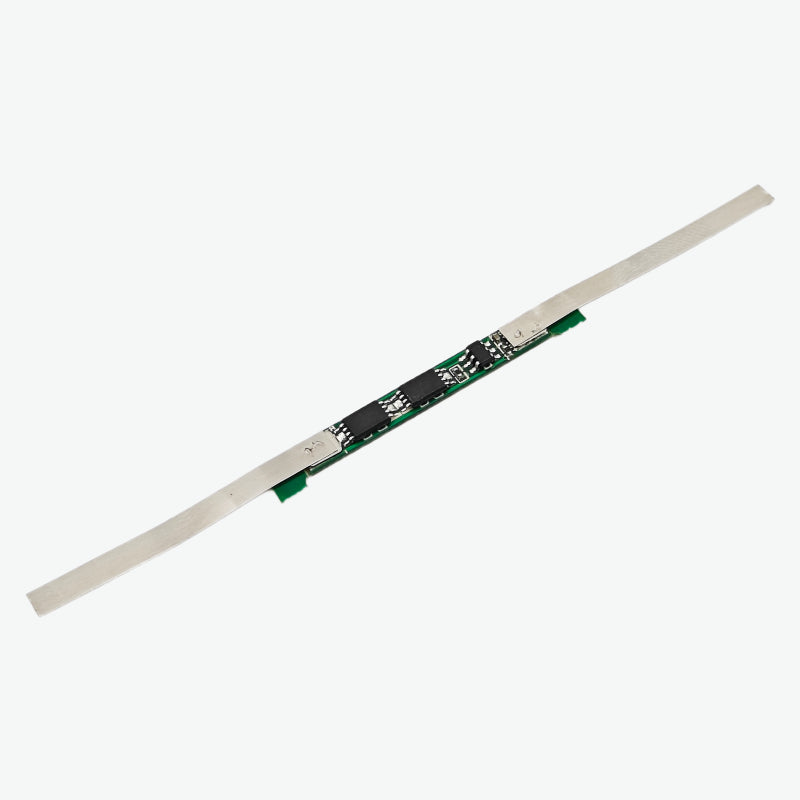

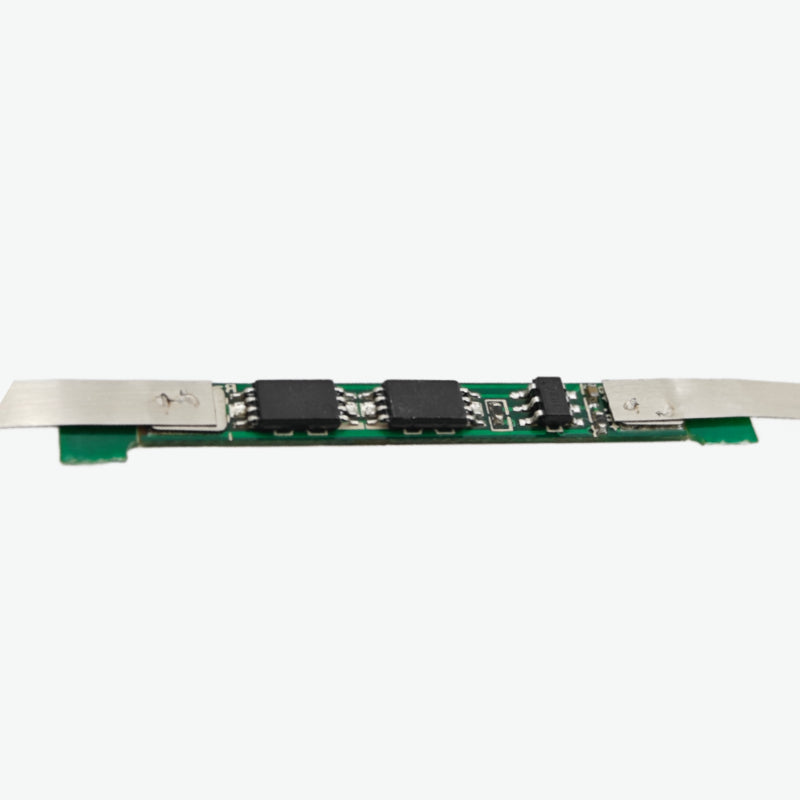

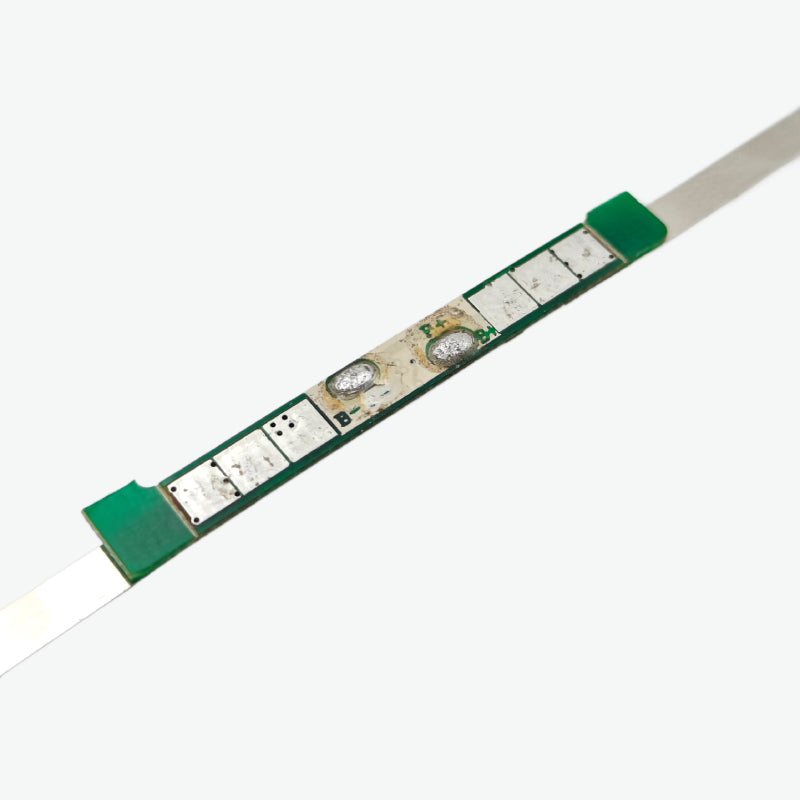

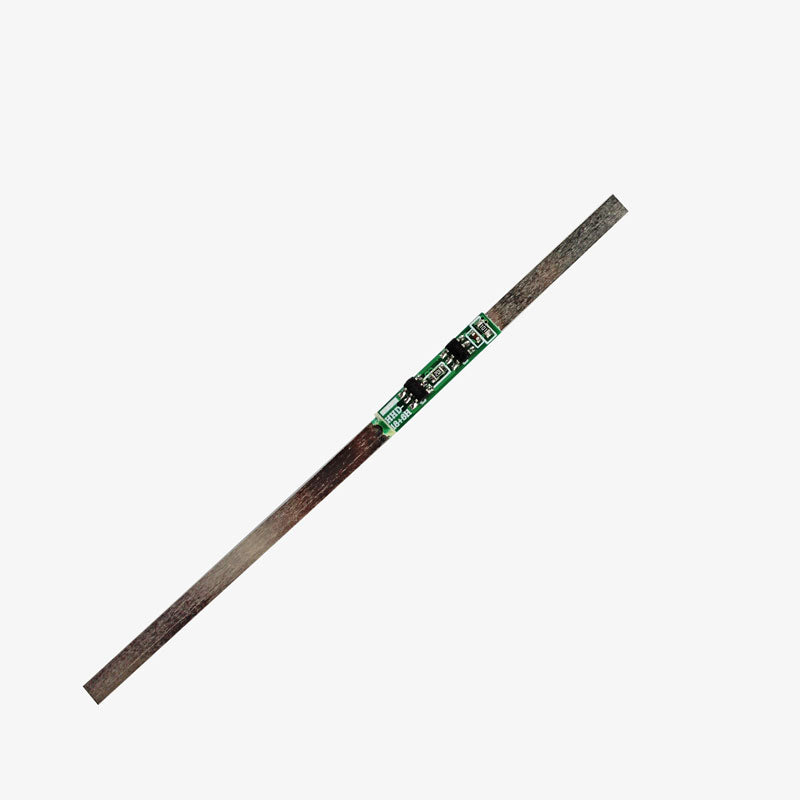

This BMS (Battery Management System) charge-discharge controller module comes with pre-soldered nickel strip ready to use for a single NMC cell. The maximum allowable current is 5A. If the maximum permissible value of the supply voltage is exceeded, the charge controller activates the “protection” mode.



Product Description of NMC battery Protection Module 1S 5Amps

1s-5A



Features of NMC battery Protection Module 1S 5Amps

  • Pre-soldered Nickel Strip ready to mount on battery
  • Small size designed for a four-cell battery pack
  • Can be applied to various 3.7V lithium core
  • Easy and convenient connection circuit
  • Protection against over-charge and over-discharge
  • IC components: DW01 + 8205A
  • Size: approx.35.2 (L) x 7.3 (W) x 1.7 mm (H)
  • Low standby current consumption


Technical Specifications of NMC battery Protection Module 1S 5Amps

NMC battery Protection Module
