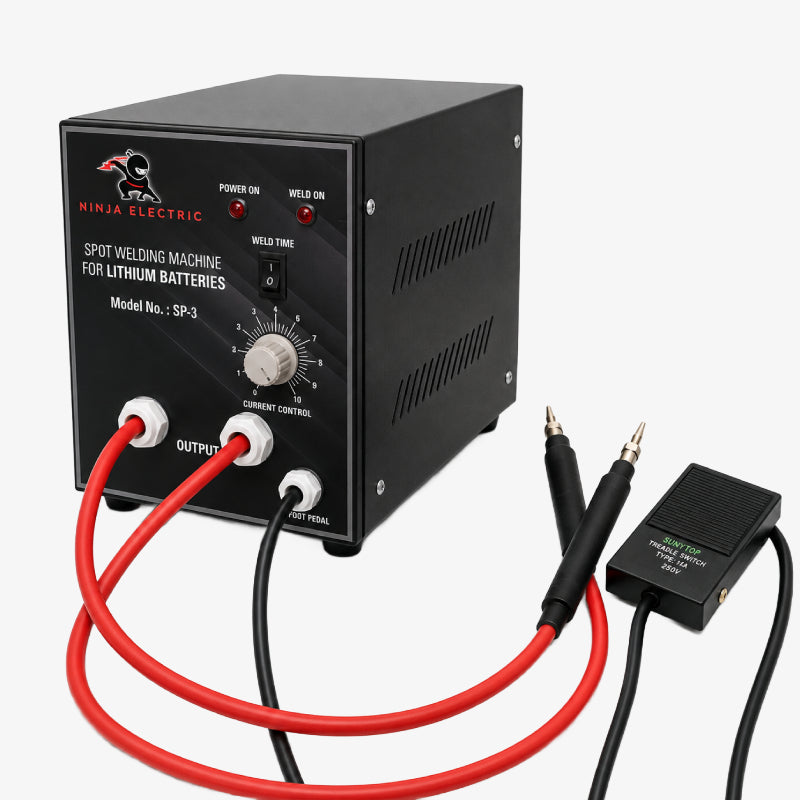

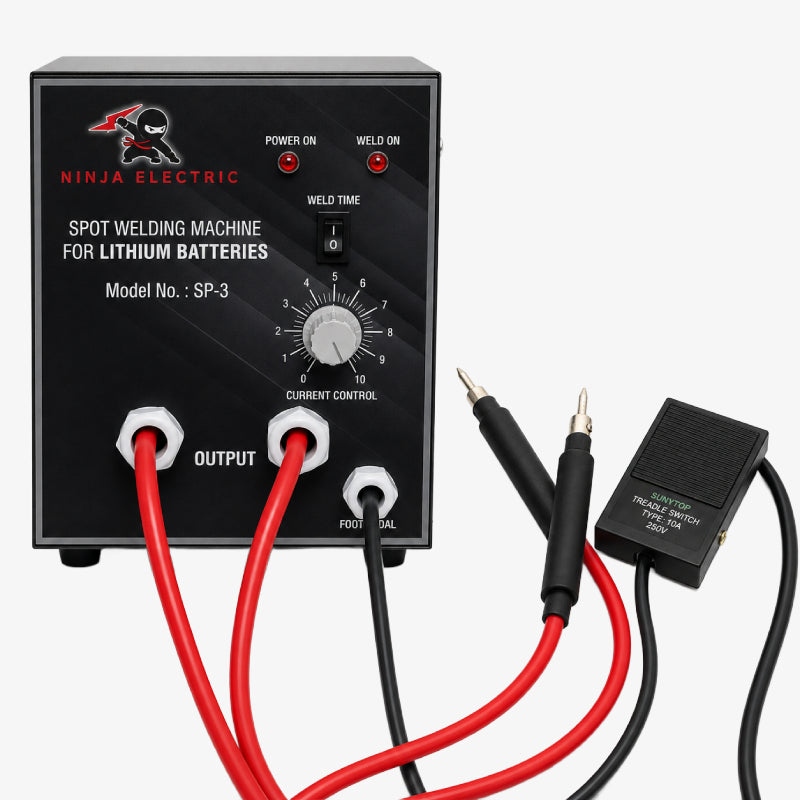

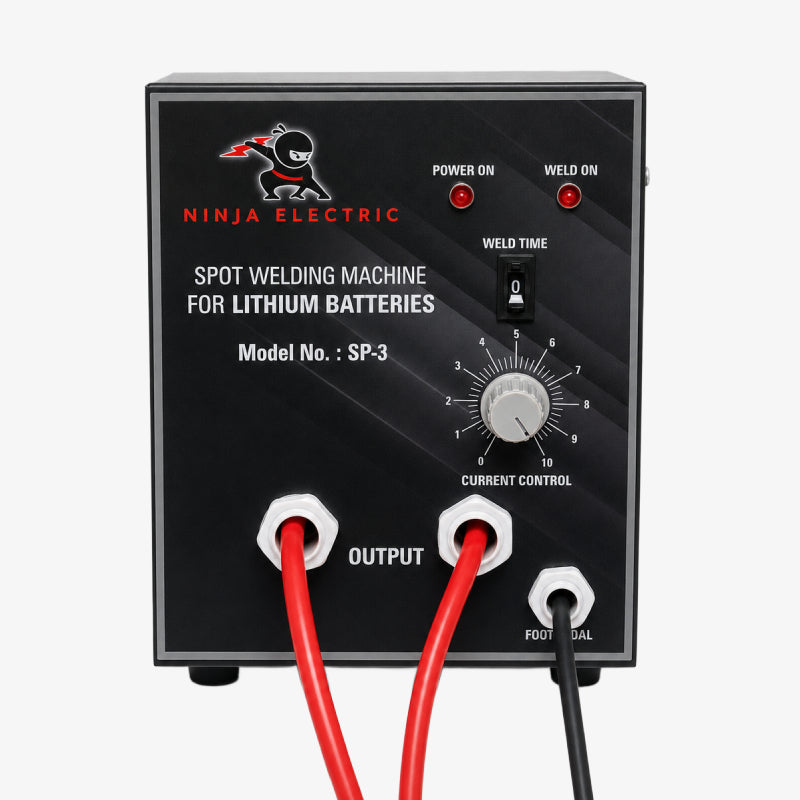

3KVA SP-3 Lithium Cell Spot Welding Machine for Battery Pack - Includes Double Pen and Pedal

3KVA SP-3 Lithium Cell Spot Welding is a portable battery spot welding machine designed for assembling and repairing lithium-ion battery packs by welding nickel strips directly to battery cells. It features adjustable welding current and pulse timing, digital controls, dual welding pens, and a foot pedal for hands-free operation. The machine supports nickel strips from 0.10mm to 0.20mm and is suitable for common cylindrical battery formats including 18650, 21700, 26650, and 32700 cells.

Features:

1. Portable spot welding machine designed for lithium battery pack assembly.
2. Suitable for battery pack building, repair, and maintenance.
3. Dual welding pen design for convenient manual spot welding.
4. Foot pedal for hands-free welding operation.
5. Adjustable welding current for different battery and nickel-strip requirements.
6. Adjustable welding pulse timer from 1ms to 100ms.
7. Digital display for convenient monitoring and adjustment.
8. High-current transformer-based welding output.
9. Supports pure nickel and nickel-plated strips.
10. Supports nickel strip thicknesses from 0.10mm to 0.20mm.
11. Suitable for 18650, 21700, 26650, and 32700 battery cells.
12. Rugged metal enclosure for workshop use.
13. Compact portable design.
14. Manual hand-operated welding system.
15. Suitable for DIY and professional battery pack assembly.
16. Made in India.

Specifications:

Also Check These Out:

Spot Welding Machine

Double Head Spot Welding Copper Needle Electrode Tip for Spot Welding Machine

DIY Spot Welding Machine for Lithium Battery Pack

Integrated Handheld Spot Welding Pen Automatic Trigger Built-in Switch Welding

DIY Copper Spot Welding Pen with PCB Board for 18650 / 26650 Battery

Package Includes:

1 × Ninja Electric SP-3 Lithium Cell Spot Welding Machine

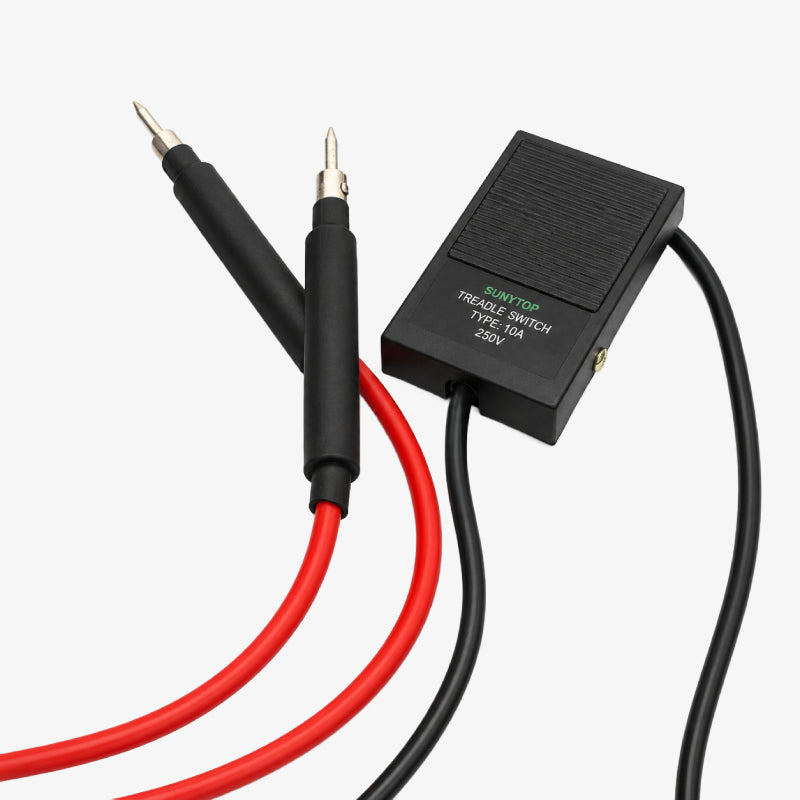

2 × Welding Pens
1 × Foot Pedal
1 × Welding Pen Cable Set
