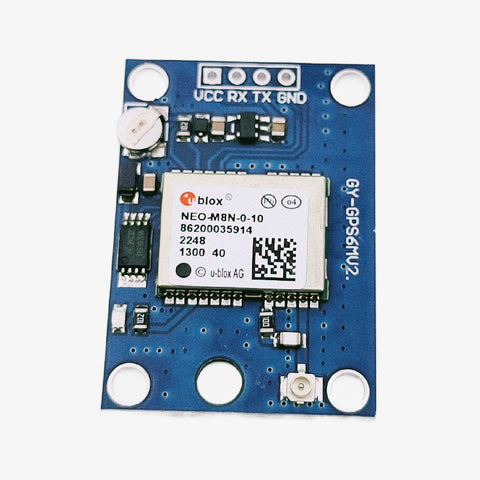

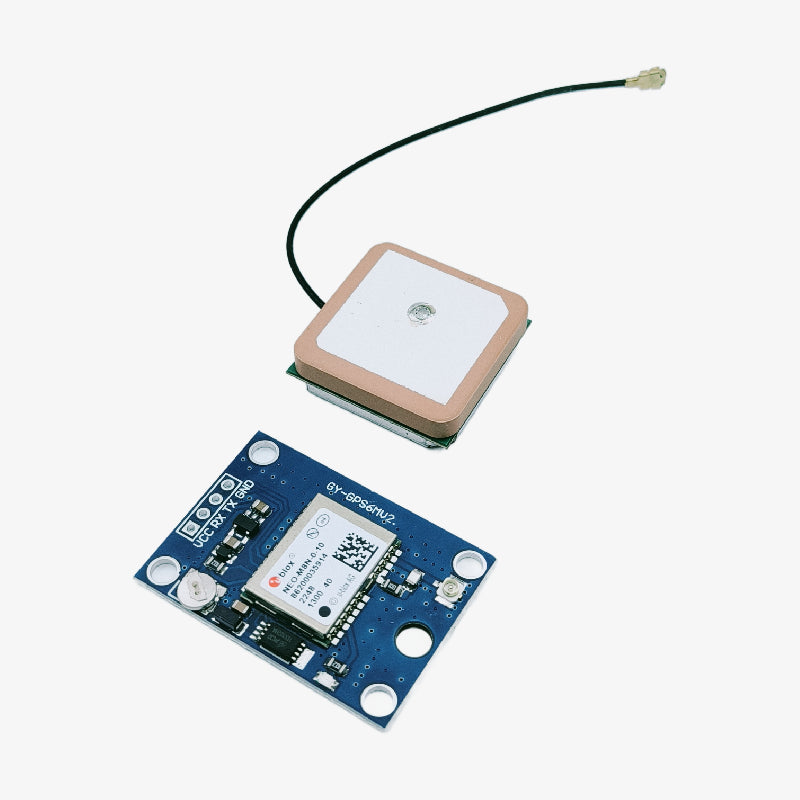

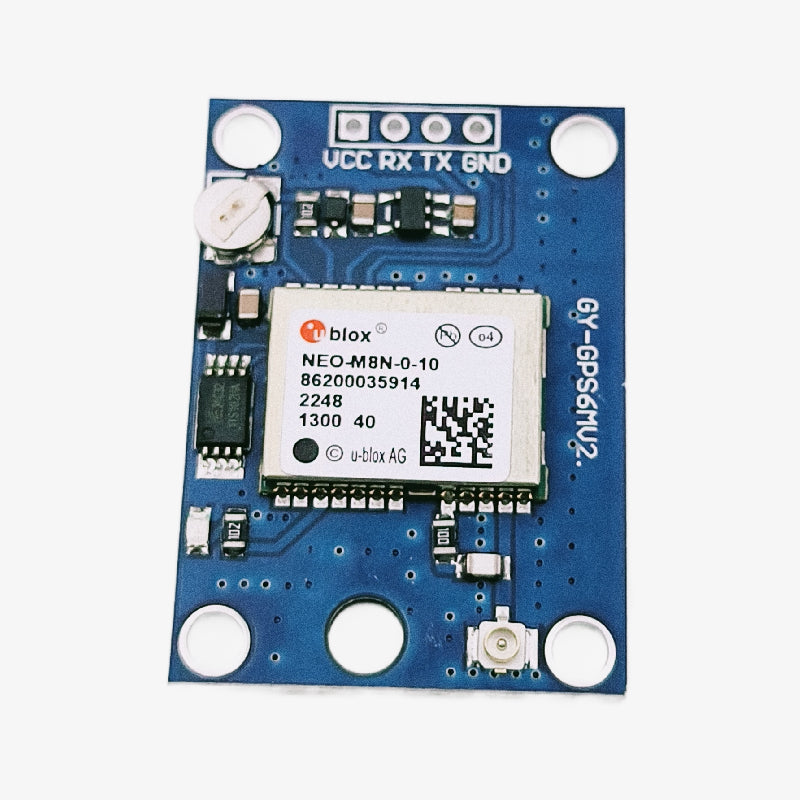

NEO-M8N GPS Module with Ceramic Active Antenna

NEO-M8N GPS Module with Ceramic Active Antenna is a high-precision GNSS receiver module designed for accurate positioning and navigation applications. It is based on the u-blox M8N chipset, supporting multiple satellite systems for improved accuracy and fast signal acquisition. Equipped with a ceramic active antenna, it ensures strong signal reception even in challenging environments. This module is widely used in drones, robotics, vehicle tracking, and IoT applications requiring reliable GPS data.

Features:

1. Based on u-blox M8N high sensitivity GNSS chipset
2. Supports multiple satellite systems for improved accuracy

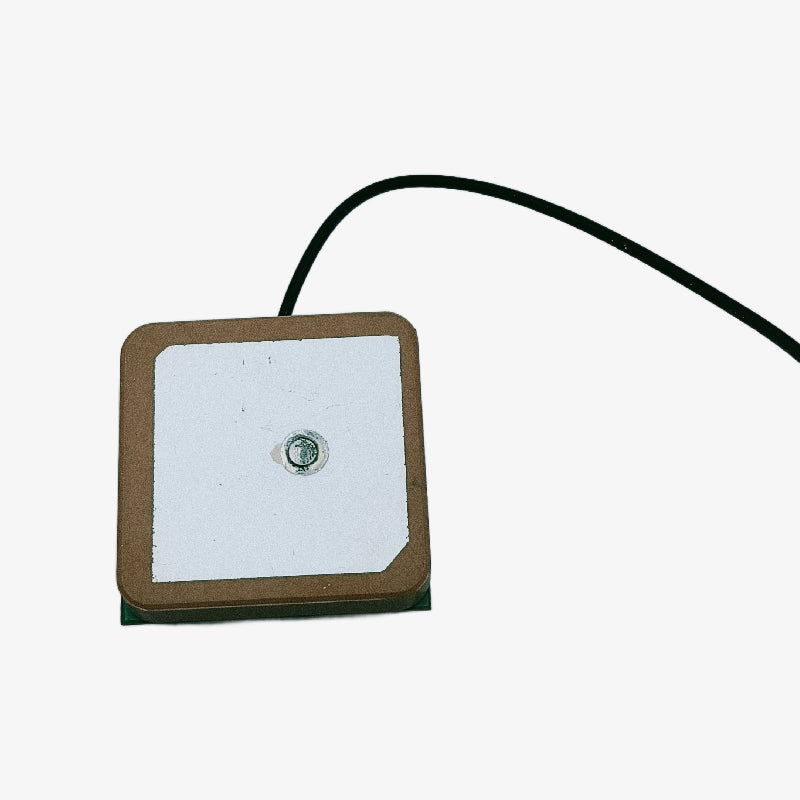

3. Ceramic active antenna for strong and stable signal reception
4. Fast positioning and quick signal acquisition
5. High update rate for real time tracking applications
6. Built in EEPROM for configuration storage
7. Compatible with Arduino, Pixhawk and other controllers

Specifications:

• Product Type: GPS Module
• Model: NEO-M8N
• Chipset: u-blox M8N
• GNSS Support: GPS GLONASS BeiDou Galileo
• Antenna Type: Ceramic Active Antenna
• Position Accuracy: Up to 2.5m
• Update Rate: Up to 10Hz
• Communication Interface: UART I2C SPI
• Operating Voltage: 3.3V to 5V
• Sensitivity: -167 dBm

Applications:

• Drone navigation and flight control systems
• Vehicle tracking and GPS logging
• Robotics and autonomous systems
• IoT location based applications
• Marine and outdoor navigation systems
• DIY electronics and GPS projects

Package Includes:

1 × NEO-M8N GPS Module with Ceramic Active Antenna
