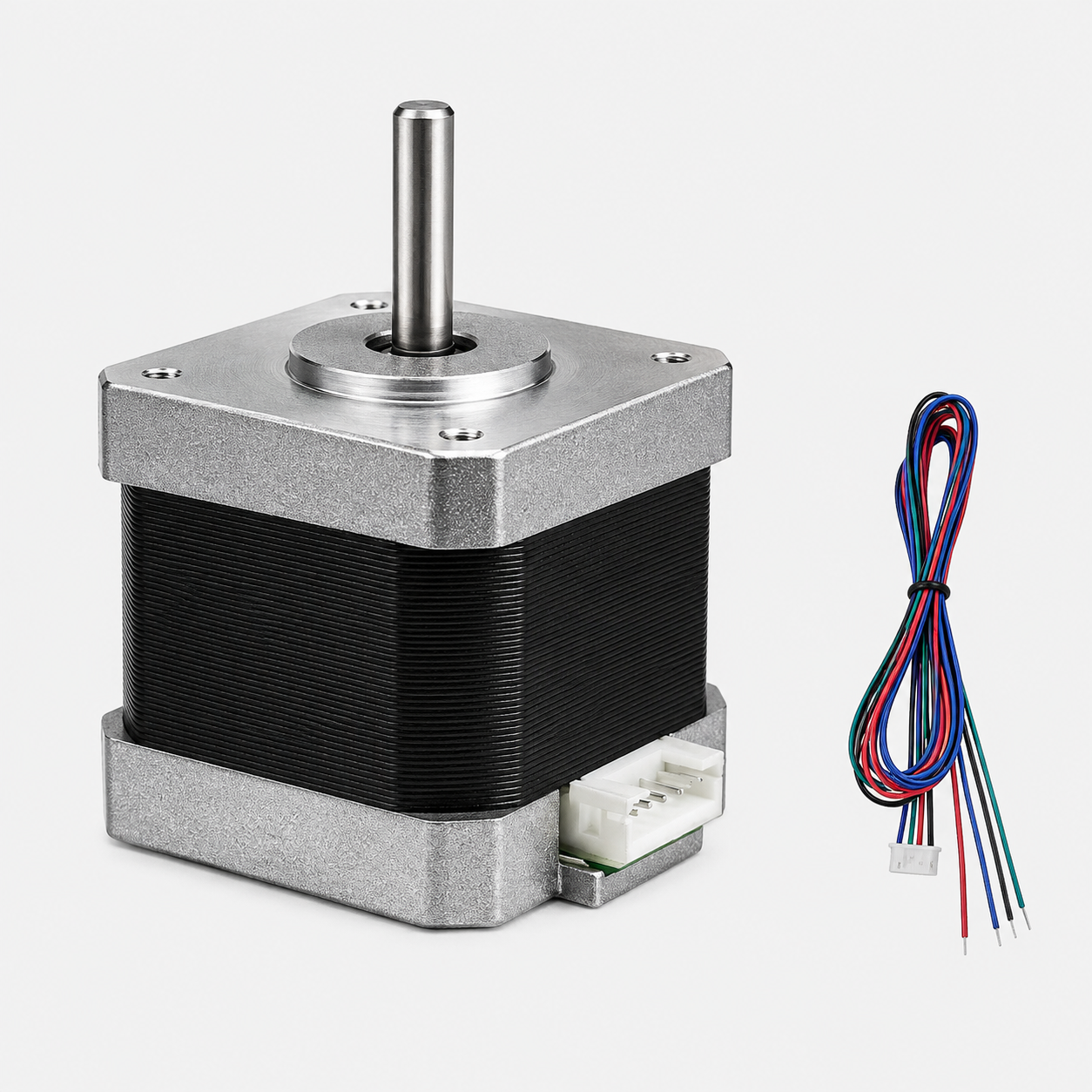

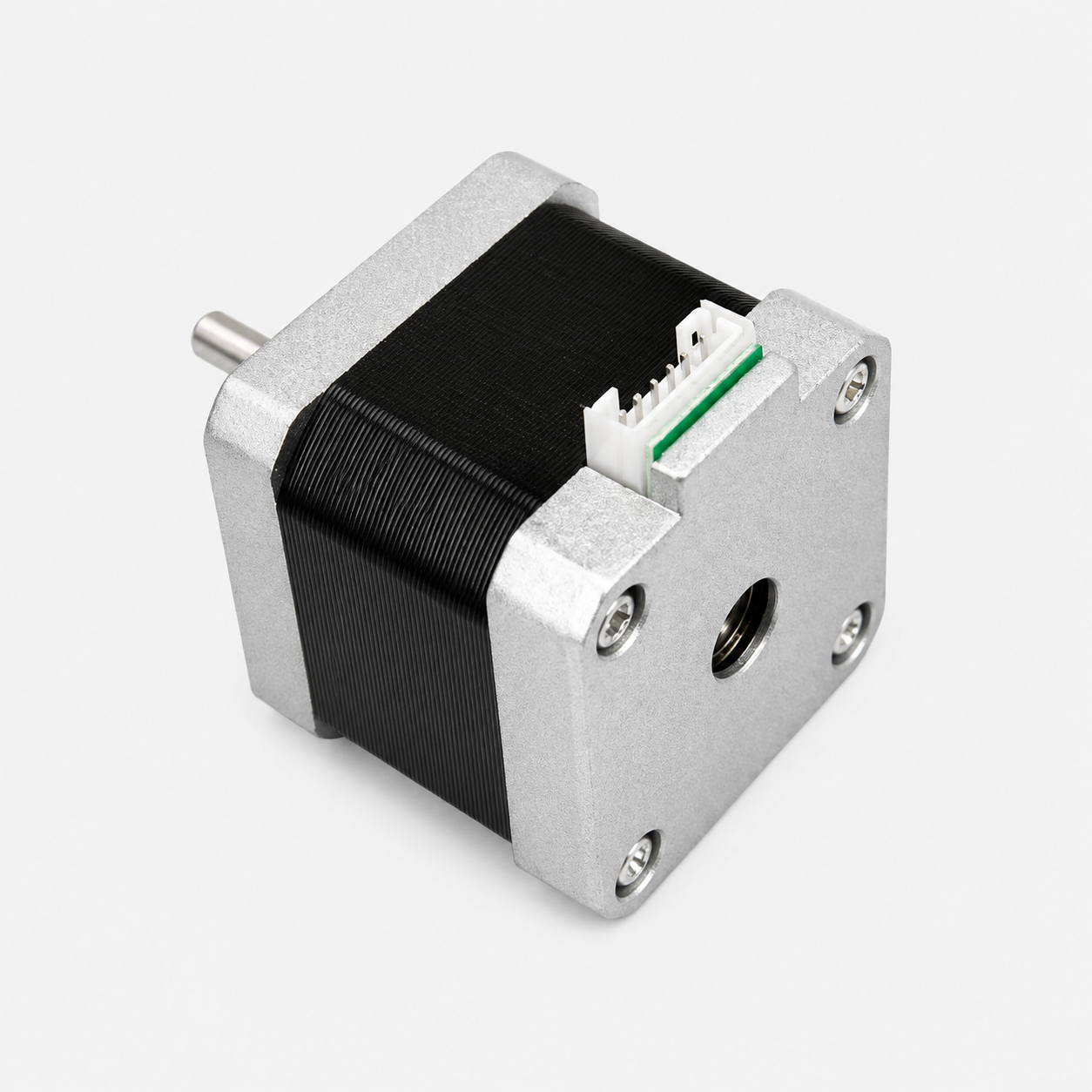

NEMA17 4.2kgcm Stepper Motor-D Type Shaft
SKU:
MTR-QC6071
Availability:
25
In Stock
-
- Rs. 605.00
- Unit price
- per
Subtotal:
Rs. 605.00
Description
xNEMA17 4.2kg.cm Stepper Motor - D Type Shaft is a high-performance 2-phase bipolar stepper motor designed for precision motion control applications. Featuring a NEMA 17 frame size, 1.8° step angle, and a D-type output shaft, it delivers smooth, accurate positioning with high holding torque. It is widely used in 3D printers, CNC machines, laser engravers, robotics, automation equipment, and DIY motion control projects.
Features:
- NEMA 17 standard frame size for universal compatibility.
- High holding torque of 4.2kg.cm for reliable performance.
- 1.8° step angle for precise positioning.
- D-type shaft for secure coupling with pulleys and gears.
- 2-phase bipolar hybrid stepper motor.
- Low vibration and smooth operation.
- High-quality bearings for long service life.
- Suitable for continuous-duty operation.
- Easy integration with popular stepper motor drivers.
- Ideal for 3D printers, CNC machines, robotics, and automation projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Hybrid Stepper Motor |
| Model | |
| Frame Size | NEMA 17 (42 × 42mm) |
| Step Angle | 1.8° ±5% |
| Number of Phases | 2 |
| Holding Torque | 4.2kg.cm (0.42N·m) |
| Rated Voltage | 4V DC |
| Rated Current | 1.2A/Phase |
| Phase Resistance | 3.3Ω ±10% |
| Phase Inductance | 3.2mH ±20% |
| Rotor Inertia | 54g·cm² |
| Shaft Type | D-Type Shaft |
| Shaft Diameter | 5mm |
| Shaft Length | 22mm |
| Motor Body Length | 40mm |
| Lead Wire Length | Approximately 300mm |
| Connector Type | 4-Pin JST |
| Insulation Class | Class B (130°C) |
| Insulation Resistance | 100MΩ Min. @ 500V DC |
| Dielectric Strength | 500V AC for 1 Minute |
| Operating Temperature | -20°C to +50°C |
| Weight | Approximately 280g |
| Compatible Drivers | A4988, DRV8825, TMC2208, TMC2209, TB6600, DM542 and other bipolar stepper drivers |
| Applications | 3D Printers, CNC Machines, Laser Engravers, Robotics, Camera Sliders, Plotters, Automation Equipment, DIY Motion Control |
Also Check These Out:
5010 750KV High Torque Brushless Motor for Drone
RS2205 2300KV Brushless High Speed DC Motor for Drone (CW)
RS2205 2300KV Brushless High Speed DC Motor for Drone (CCW)
RS2205 2700KV Brushless High Speed DC Motor for Drone (CCW)
Package Includes:
1 × NEMA17 4.2kg.cm Stepper Motor - D Type Shaft
