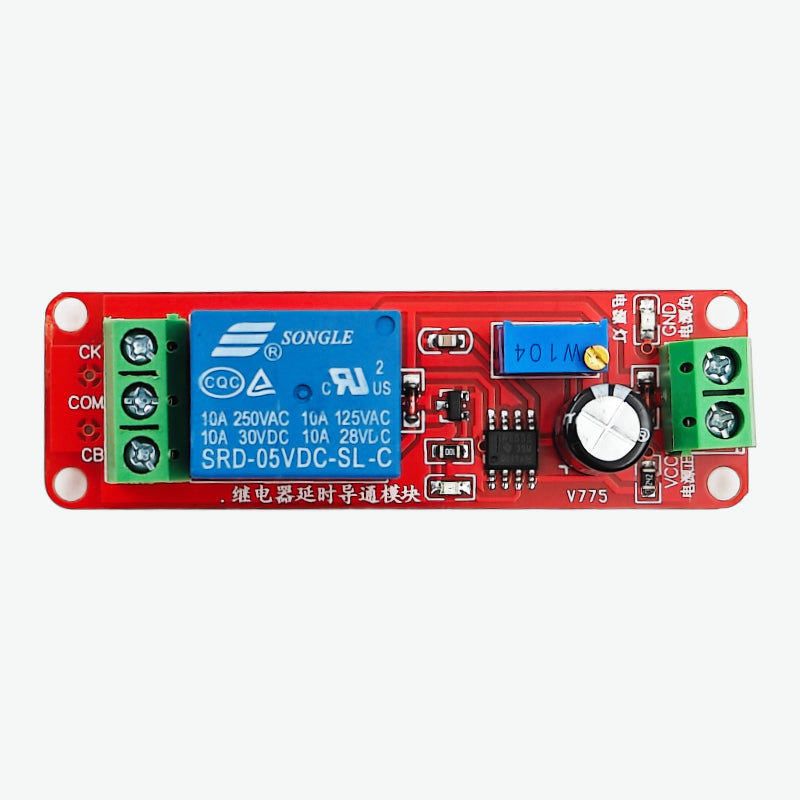

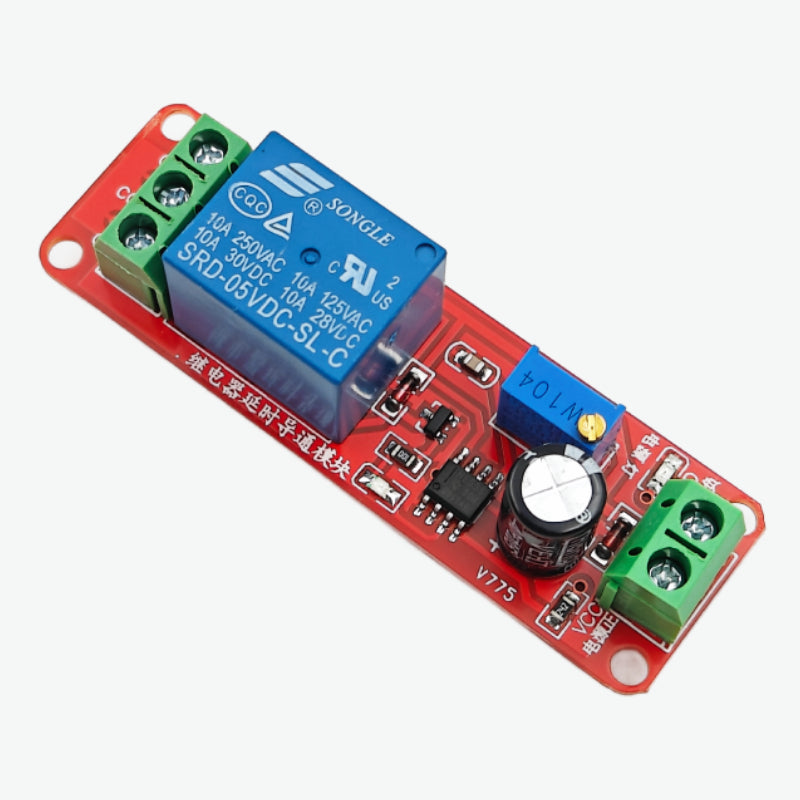

The NE555 Delay Timer Relay Module is a time delay switch module based on the NE555 timer IC. It allows users to control the ON delay of a connected load with adjustable timing from 0 to 10 seconds. This module is ideal for automation projects, DIY electronics, time delay functions, and simple control circuits.

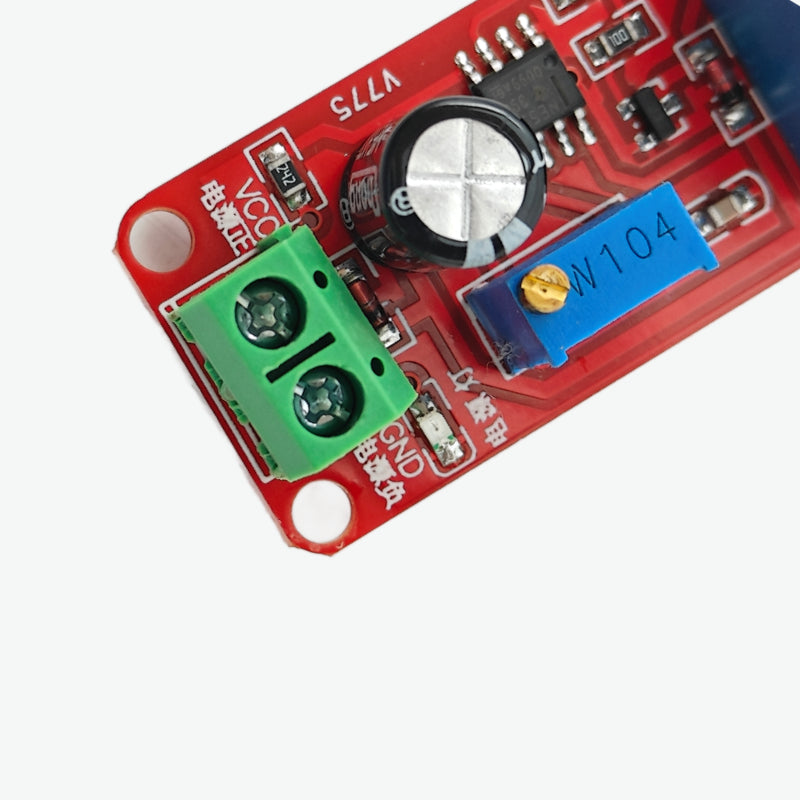

It works on a 5V DC supply and includes an onboard relay for switching AC or DC loads. The potentiometer allows easy adjustment of the delay time. Once triggered, the relay activates after the set delay period, making it a useful timing control device in various electronic applications.
Features of NE555 Delay Timer Relay Module:
- Adjustable delay time from 0 to 10 seconds
- Based on the reliable NE555 timer IC
- Supports both AC and DC load switching through onboard relay
- Simple trigger-to-delay operation with high stability
- LED indicator for power and relay status
- Easy wiring with screw terminals

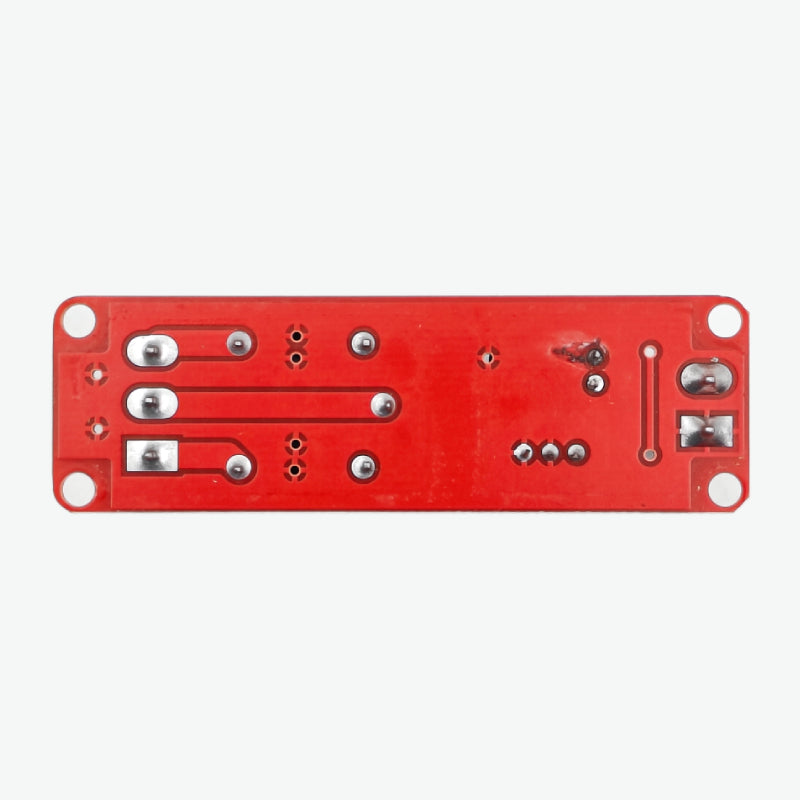

- Compact PCB layout for integration into DIY and automation systems
Specifications of NE555 Delay Timer Module:
- Operating Voltage: 5V DC
- Delay Time Range: 0 – 10 seconds (adjustable via potentiometer)

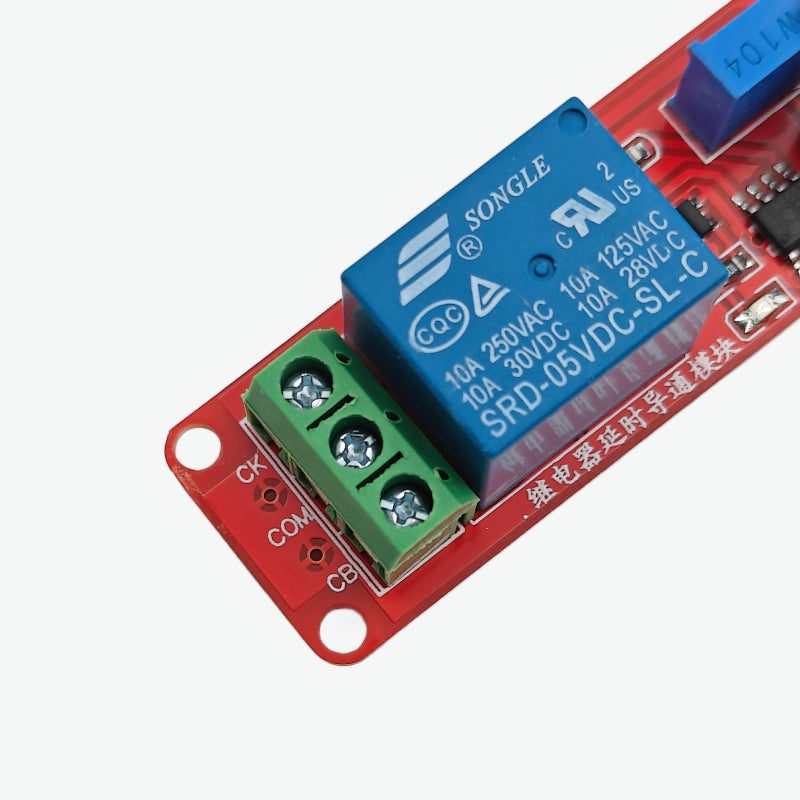

- Relay Output: 1-Channel SPDT
- Relay Load Capacity: 10A @ 250V AC / 10A @ 28V DC
- Trigger Voltage: <1V (low-level trigger)
- Indicator LEDs: Power and relay status indicators
Package Includes:
1 × NE555 Delay Timer Switch Adjustable 0–10s 5V Relay Module
