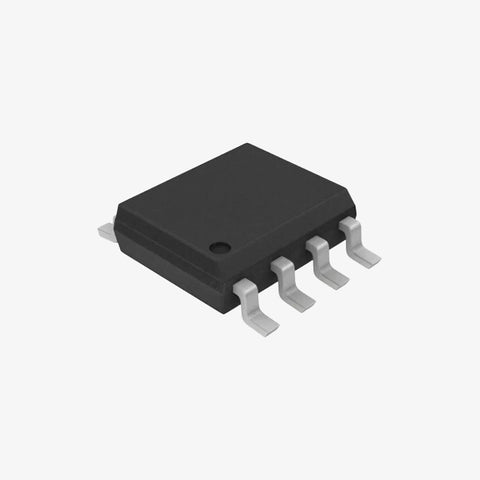

The NE5532D is a high-performance, low-noise dual operational amplifier IC designed for applications requiring exceptional audio quality and low distortion. It is housed in a compact SOIC-8 surface-mount package, making it suitable for modern, high-density circuit designs. This op-amp is highly reliable and versatile, ensuring accurate signal amplification for demanding applications.
Features
-
Low Noise Performance: Delivers superior low-noise characteristics with a typical noise density of 5 nV/√Hz, ideal for high-fidelity audio circuits.
-
High Slew Rate: Provides a typical slew rate of 9 V/μs for fast transient response and low distortion.
-
Low Total Harmonic Distortion (THD): Ensures accurate signal reproduction with minimal distortion.
-
Wide Operating Voltage Range: Operates from ±3V to ±15V, supporting both single and dual supply configurations.
-
High Output Drive Capability: Drives low impedance loads, suitable for a wide range of audio and signal processing applications.
-
Unity-Gain Stable: Ensures reliable operation across various gain configurations.
-
Compact SOIC-8 Package: Optimized for surface-mount applications to save PCB space.
NE5532D OpAmp Specifications
-
Number of Channels: Dual (2)
-
Input Offset Voltage: Typically 0.5 mV
-
Bandwidth: 10 MHz (typical)
-
Supply Current: 8 mA (maximum)
-
Output Voltage Swing: ±13V (typical at ±15V supply)
-
Temperature Range: -40°C to +85°C
Pinout and Configuration
|
Pin Name |
Pin No |
Description |
|
1IN+ |
3 |
Noninverting Input |
|
1IN- |
2 |
Inverting Input |
|
OUT1 |
1 |
Output |
|
2IN+ |
5 |
Noninverting Input |
|
2IN- |
6 |
Inverting Input |
|
2OUT |
7 |
Output |
|
VCC+ |
8 |
Positive Supply |
|
VCC- |
4 |
Negative Supply |
Applications
-
High-fidelity audio preamplifiers and mixers
-
Signal conditioning circuits
-
Active filters and oscillators
-
Industrial instrumentation
-
Medical and scientific equipment
Package Includes:
1 x NE5532D Dual Low Noise OpAmp IC - SOIC-8 SMD Package
