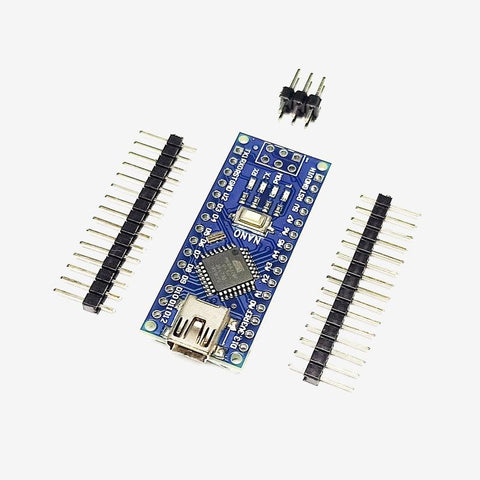

Nano Clone Board Compatible with Arduino

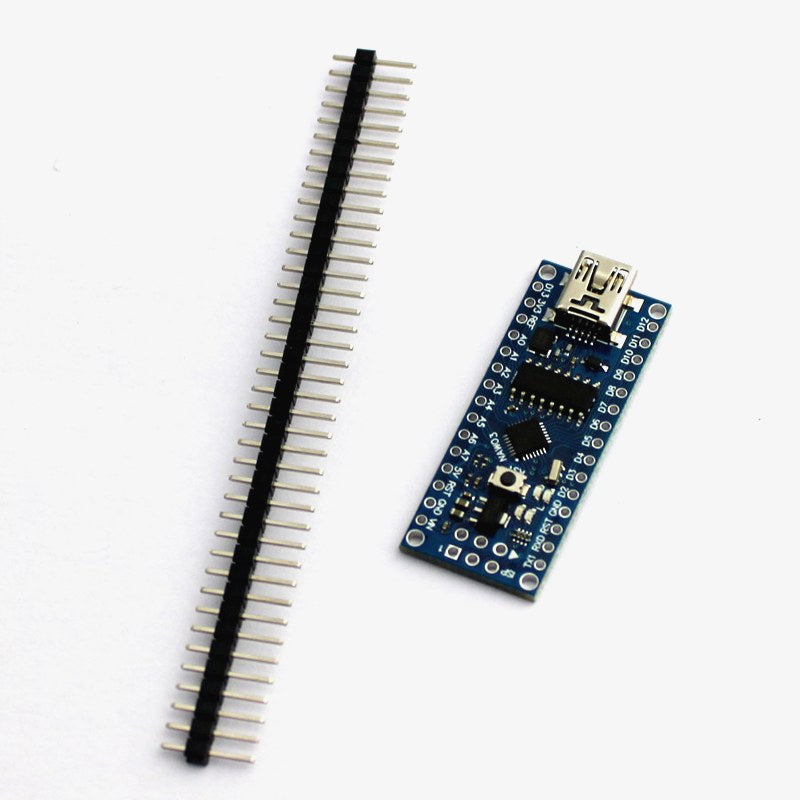

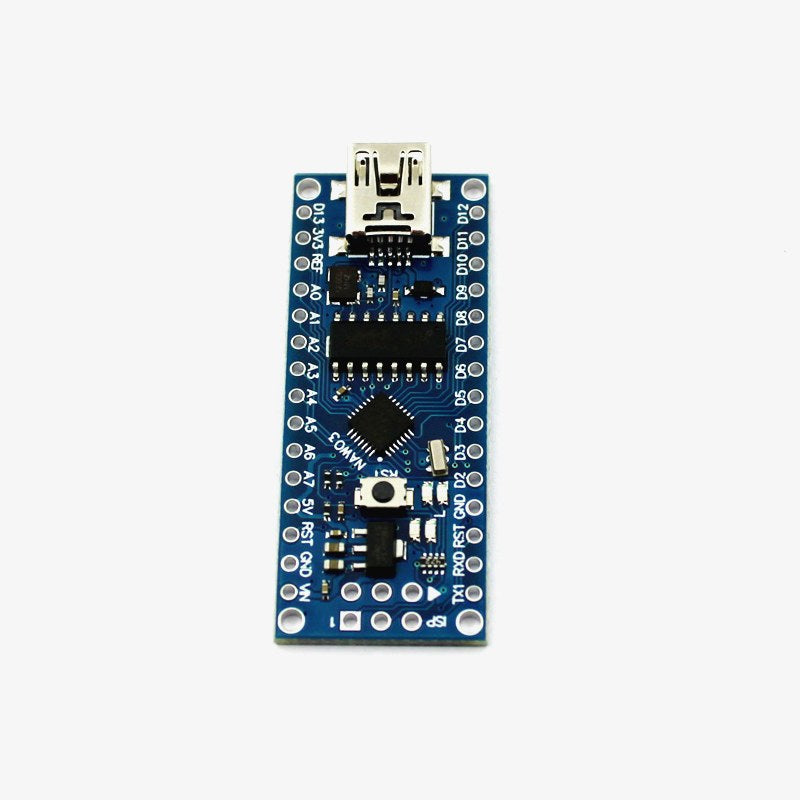

Nano R3 CH340 Chip Development Board - Compatible with Arduino (Without Cable)
Nano R3 CH340 Chip Development Board - Compatible with Arduino (Without Cable)
Nano R3 CH340 Chip Development Board - Compatible with Arduino (Without Cable)
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

Nano R3 CH340 Chip Development Board - Compatible with Arduino (Without Cable)

QC2041
272 In stock
Rs. 254.00 Rs. 179.00 (Exc. GST)
Rs. 179.00

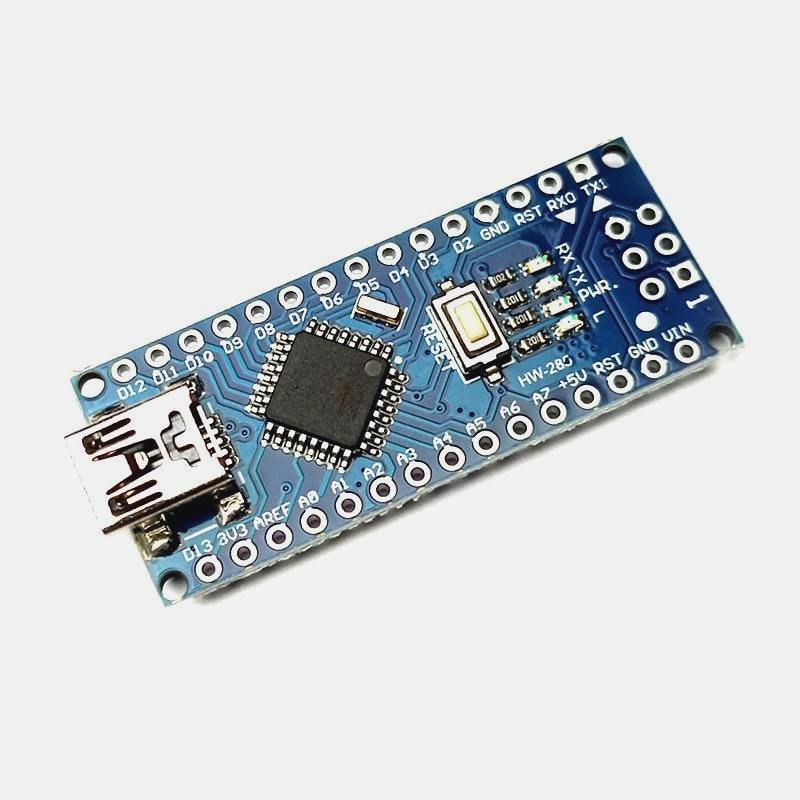

Nano is a small, breadboard-friendly development board based on an ATmega 328P SMD package microcontroller and offers the same connectivity and specs of Arduino Uno in a small package. DC Power Jack is not available on this board so power can only be supplied by a Mini B USB port present on it or 6-20V unregulated external power supply from Pin 30 (Vin). Due to its small size its very popular among IoT based projects which need to be small and user friendly, in Robotics, in Automation, Instrumentation and Control systems


Specifications:

  • It has 22 I/O pins in total in which 14 are Digital (6 are PWM output) and 8 are Analog pins.
  • Operating Voltage (Logic Level): 5V.
  • Supports Serial, I2C, SPI Communication Protocols.
  • Flash memory: 32KB in which 2KB is used by Bootloader
  • Clock speed: 16MHz
  • DC Current per I/O Pin: 40 mA
  • SRAM : 2KB, EEPROM: 1KB
  • DC Current per I/O pin: 40mA


Product Description

Arduino Nano Simplified Pinout

To connect and program this development board you need to have Arduino IDE installed in your computer and the Mini USB Programming Cable. After installing the IDE you just need to go to TOOLS> BOARDS> Arduino Nano and you are ready to upload the programs with the help of Mini USB B cable. Its programming is not different from Arduino UNO.
