VL53L1X Time-of-Flight (ToF) Distance Sensor Module

The VL53L1X Time-of-Flight (ToF) Distance Sensor Module is a high-performance laser-ranging sensor from STMicroelectronics, offering extended measurement ranges and improved accuracy over its predecessor, the VL53L0X. With a maximum range of up to 4 meters and programmable distance modes, it delivers precise millimeter-level measurements ideal for robotics, drones, industrial automation, and smart IoT devices. Equipped with I2C communication and 5V/3.3V compatibility, the VL53L1X integrates easily with Arduino, Raspberry Pi, and other microcontrollers. Its wide field of view and customizable region-of-interest (ROI) make it suitable for both long-range detection and short-range precision sensing.

Features of VL53L1X Time-of-Flight (ToF) Distance Sensor Module:

1. Based on STMicroelectronics VL53L1X IC
2. Extended measurement range up to 4 meters
3. Programmable ROI (Region of Interest) and distance modes (short, medium, long)
4. I2C interface for easy integration with microcontrollers
5. Resistant to ambient light interference for accurate readings
6. Low power consumption, ideal for portable projects

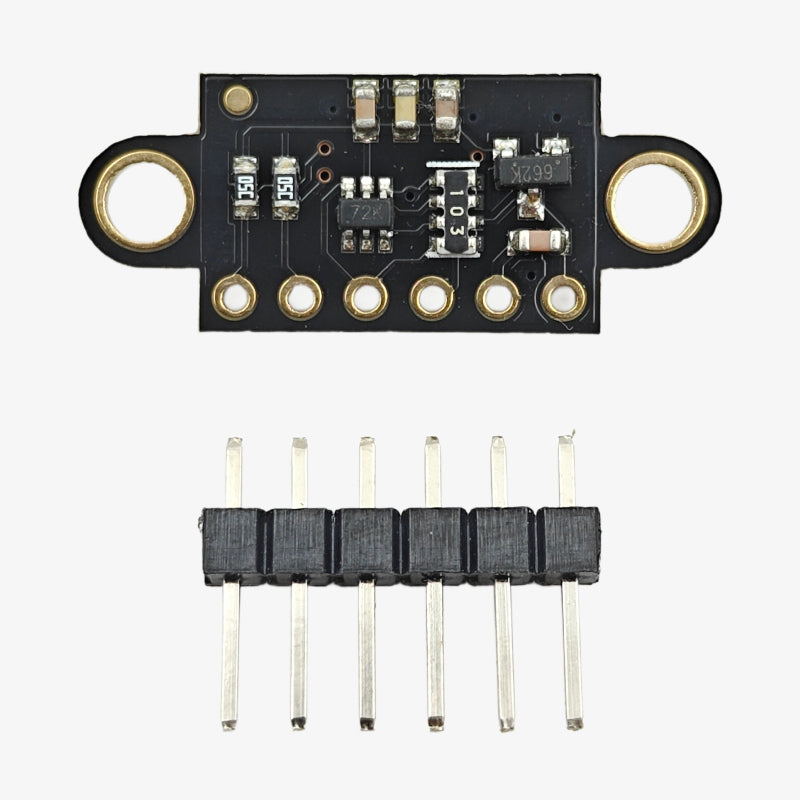

7. Compact PCB design with mounting holes for embedded use

Specifications of VL53L1X Time-of-Flight (ToF) Distance Sensor Module:

• Model: VL53L1X ToF Distance Sensor Module
• Sensor IC: VL53L1X (STMicroelectronics)
• Operating Voltage: 2.6V – 5V (3.3V/5V logic compatible)
• Communication Interface: I²C (SCL, SDA)
• Measuring Range: 40mm – 4000mm (4m)
• Field of View (FoV): ~27° (programmable)

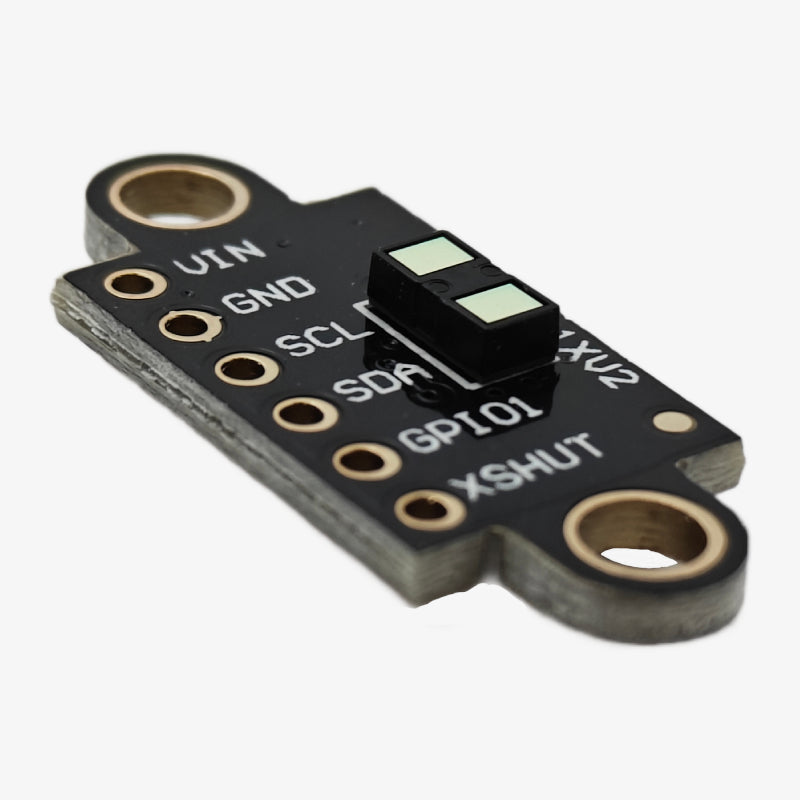

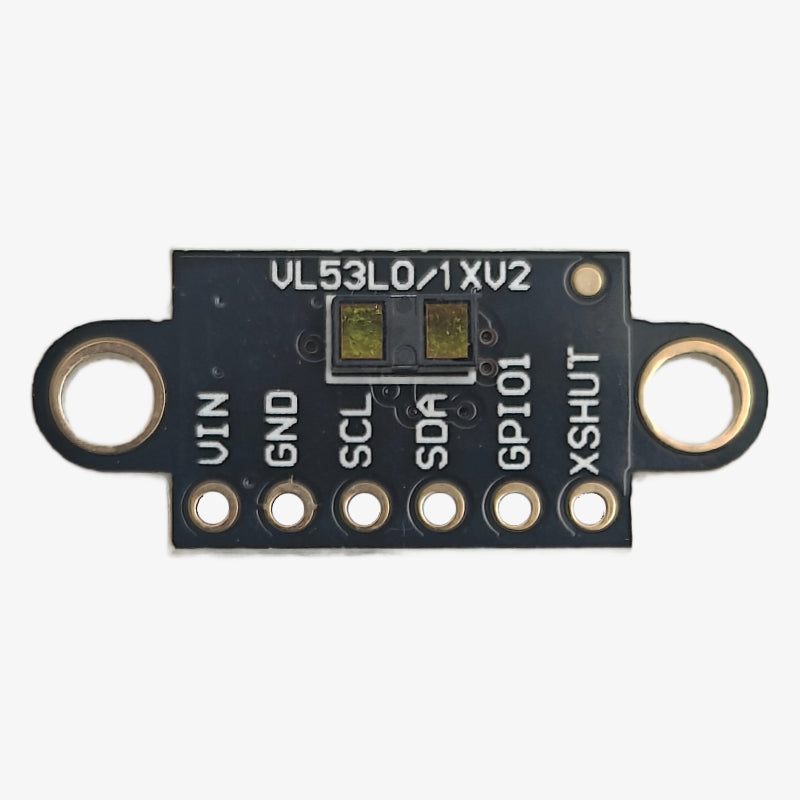

• Pins: VIN, GND, SCL, SDA, GPIO1, XSHUT
• Dimensions (L × W): Approx. 20 × 10 mm
• Weight: Approx. 2 g

Package Includes:

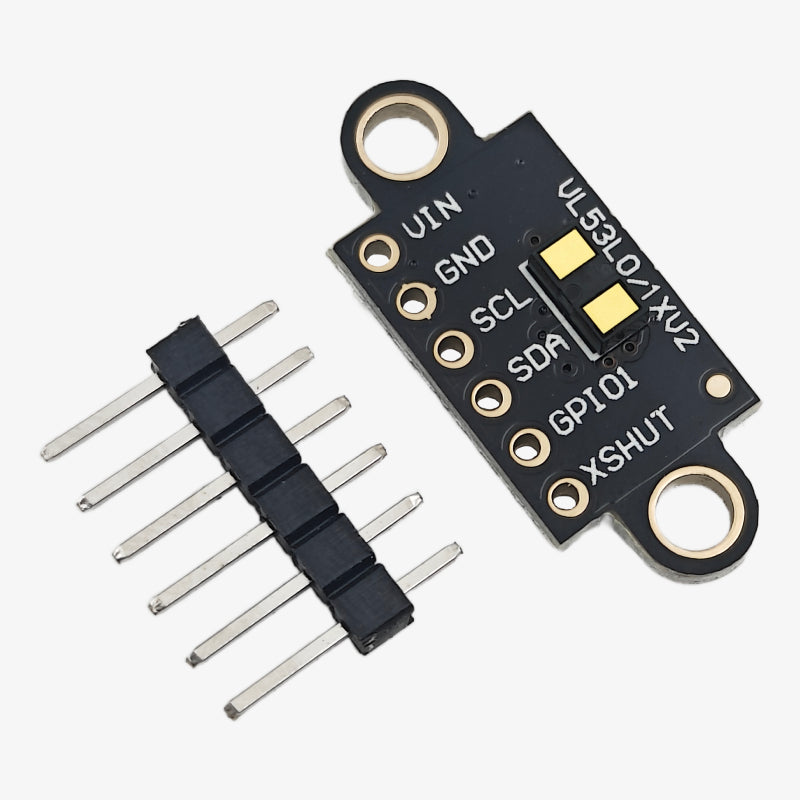

1 × VL53L1X Time-of-Flight (ToF) Distance Sensor Module
