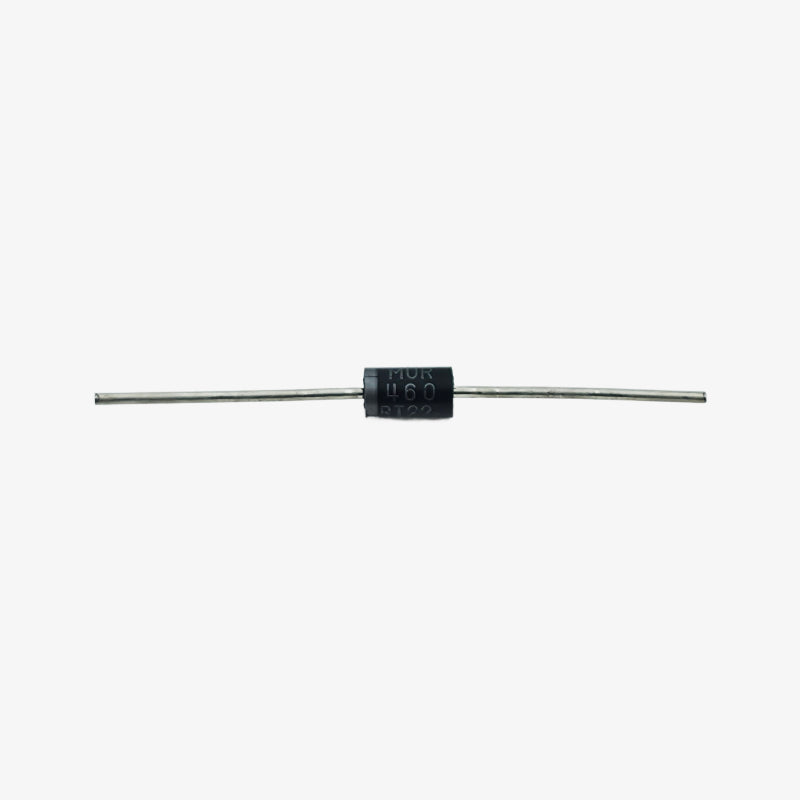

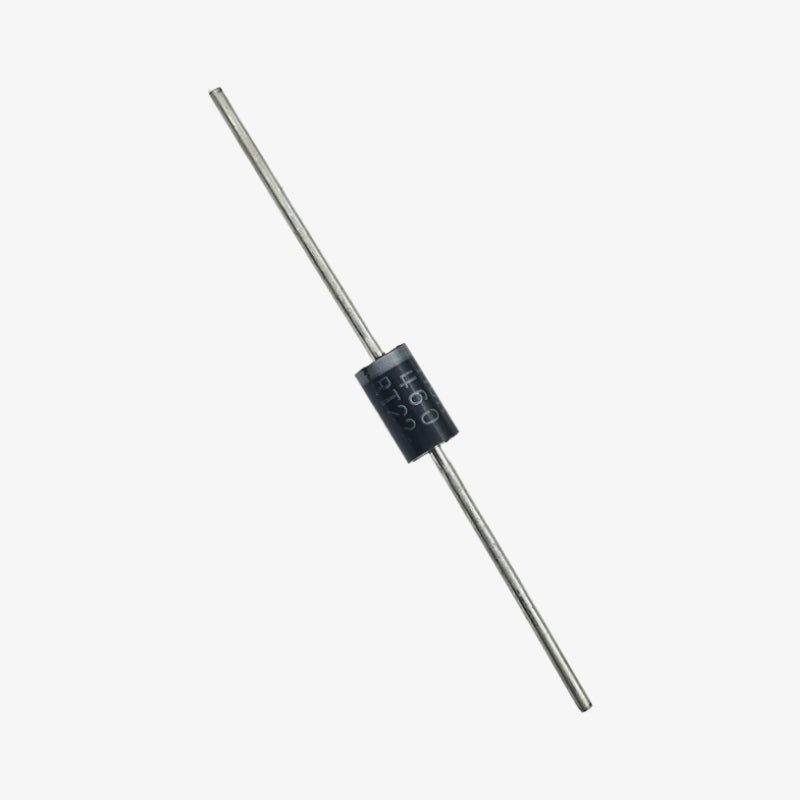

MUR460 Ultra Fast Rectifier Diode 4A
SKU:
CMP-QC3730
Availability:
1223
In Stock
- Rs. 11.00
- Rs. 11.00
- Unit price
- per
Subtotal:
Rs. 11.00
Description
xThe MUR460 Ultra Fast Rectifier Diode 4A is designed for high-speed AC to DC rectification with strong surge capability and low leakage performance. Its diffused junction and fast recovery characteristics make it ideal for power supplies, high-frequency inverters, and industrial rectification circuits.
Features:
- Hermetically sealed construction for durability
- Super fast reverse recovery for high-frequency applications
- High surge current capability for demanding loads
- Low leakage current with axial lead DO-201AD package
- Cathode marked for easy polarity identification
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 600 V
- Maximum Average Forward Rectified Current (IF(AV)): 4.0 A
- Peak Forward Surge Current (IFSM): 125 A
- Forward Voltage (VF) at 4 A: 1.30 V
- Peak Reverse Current (IR) at 25°C: 5 µA
- Peak Reverse Current (IR) at 125°C: 50 µA
- Reverse Recovery Time (trr): 50 ns
- Thermal Resistance Junction to Ambient (RθJA): 28 °C/W
- Thermal Resistance Junction to Lead (RθJL): 10 °C/W
- Operating Junction Temperature Range (TJ): -55°C to +150°C
- Storage Temperature Range (TSTG): -55°C to +150°C
Package Includes:
1 × MUR460 Ultra Fast Rectifier Diode 4A
