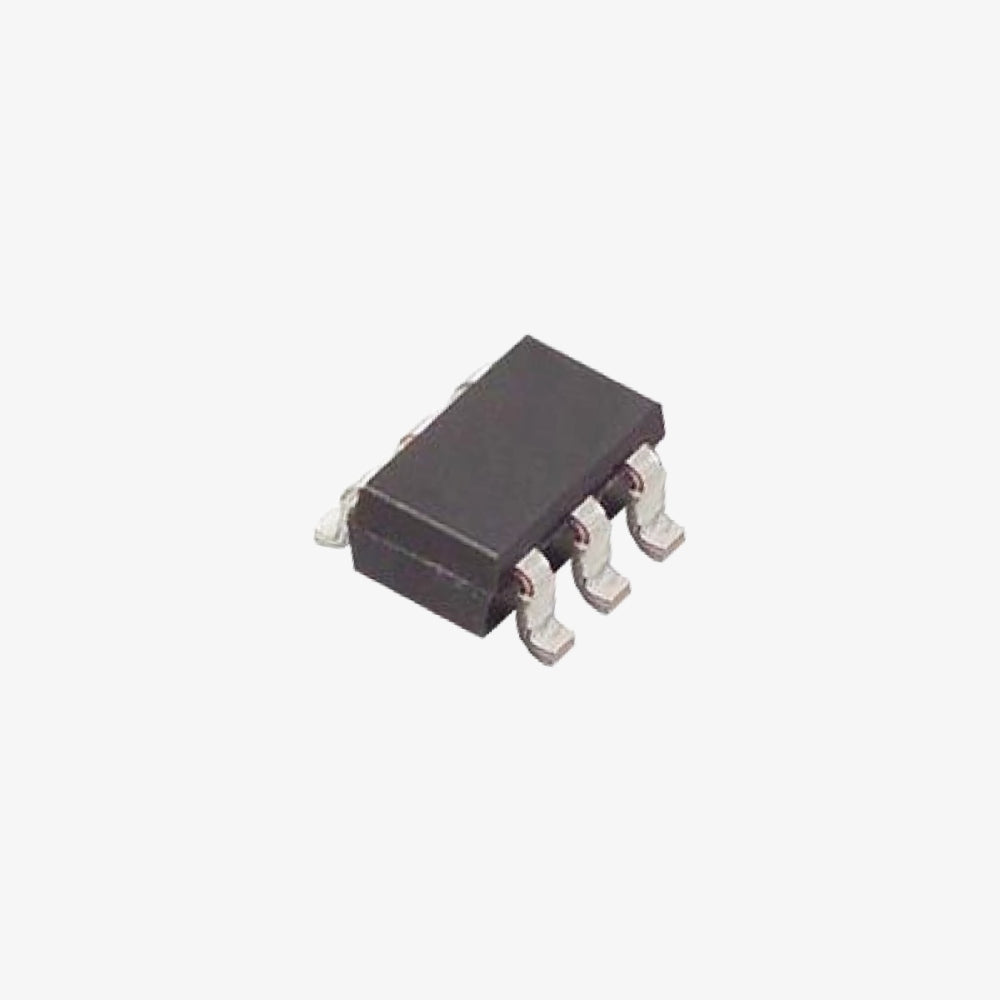

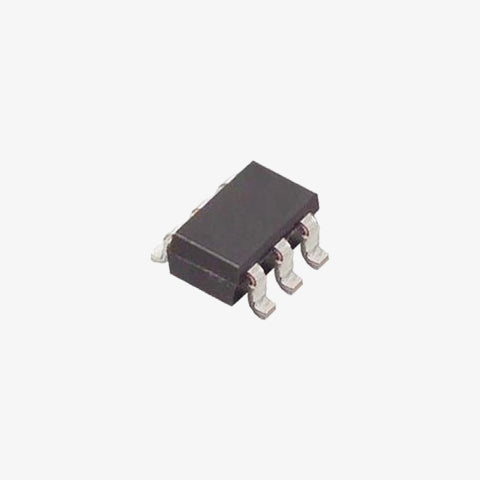

MT3608 High Efficiency Step Up Converter IC - SOT23-6 SMD Package

The MT3608 is a high-efficiency step-up (boost) converter IC designed to provide a stable output voltage from a lower input voltage. It is ideal for applications requiring a reliable and compact power solution. The MT3608 is housed in a SOT-23 SMD package, offering space-saving and efficient power conversion in a small footprint.

MT3608 Boost Converter Specifications:

• IC Type: Step-Up (Boost) Converter
• Package Type: SOT-23-6 SMD
• Package Size: 6 Pins
• Input Voltage Range: 2 V to 24 V
• Output Voltage: Adjustable up to 28 V
• Maximum Output Current: 2 A
• Efficiency: Up to 96%
• Operating Temperature Range: -40°C to +85°C

MT3608 SMD IC Pin Configuration:

1. VIN: Input voltage
2. SW: Switch node
3. GND: Ground
4. COMP: Compensation network
5. FB: Feedback for output voltage adjustment
6. OUT: Output voltage

Features:

• High efficiency with up to 96% conversion rate
• Adjustable output voltage up to 28 V
• Wide input voltage range of 2 V to 24 V
• Built-in overcurrent and thermal protection
• Compact SOT-23 package for space-efficient designs

Applications:

• Battery-powered devices
• Portable electronics
• Power supply for low-voltage circuits
• LED driving applications
• Energy harvesting systems

Package Includes:

1 x MT3608 High Efficiency Step Up Converter IC - SOT23-6 SMD Package

Note: Product images are for illustrative purposes only and may differ from the actual product.
