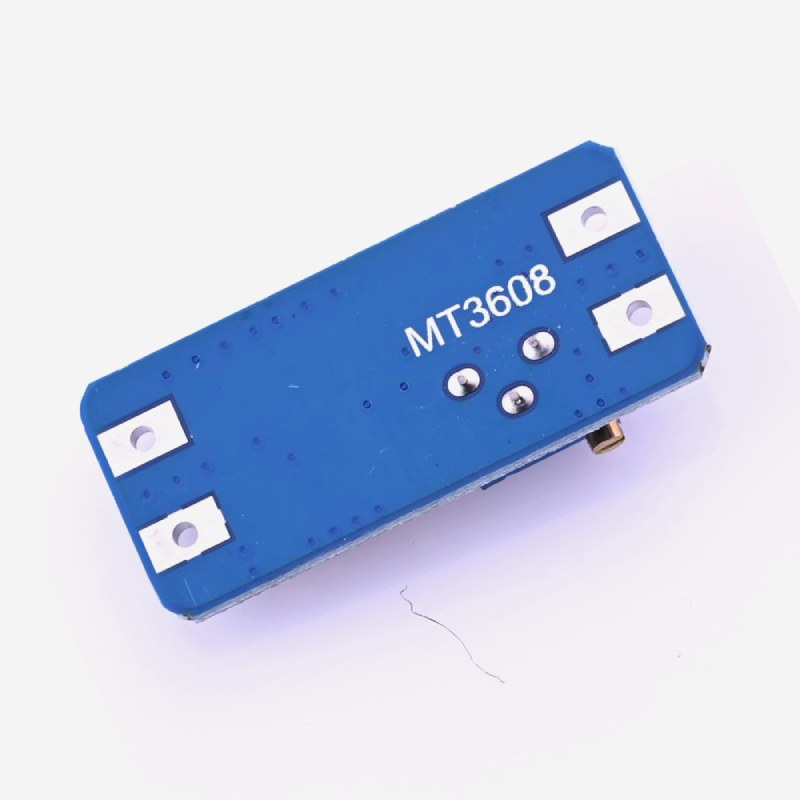

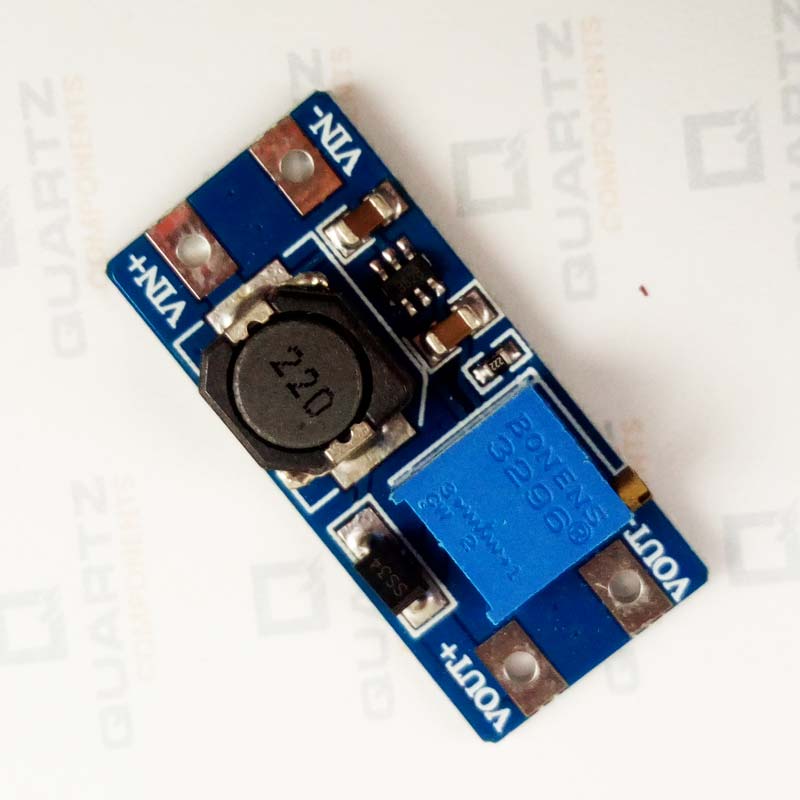

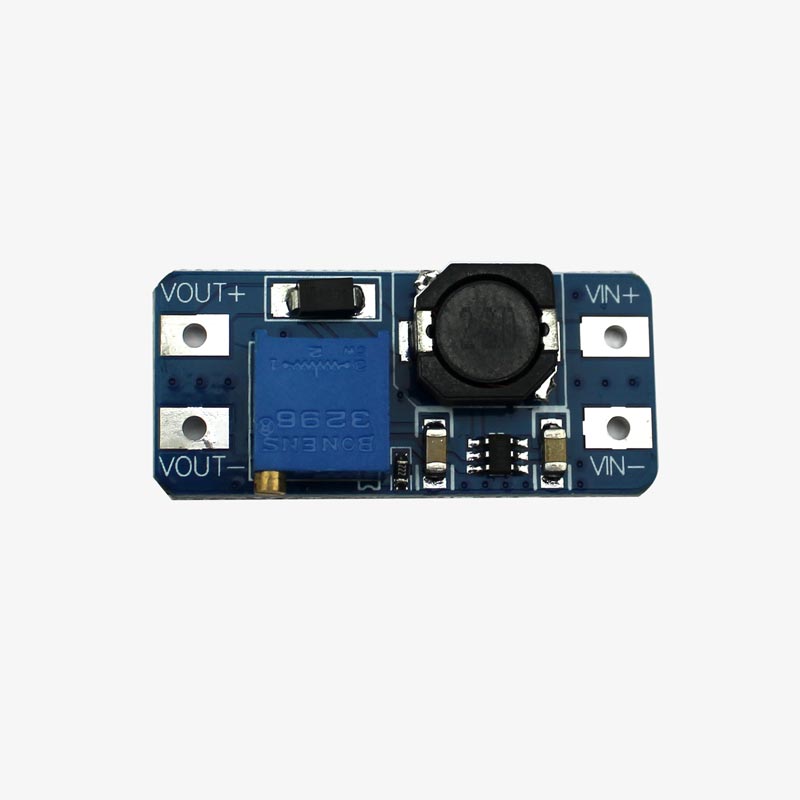

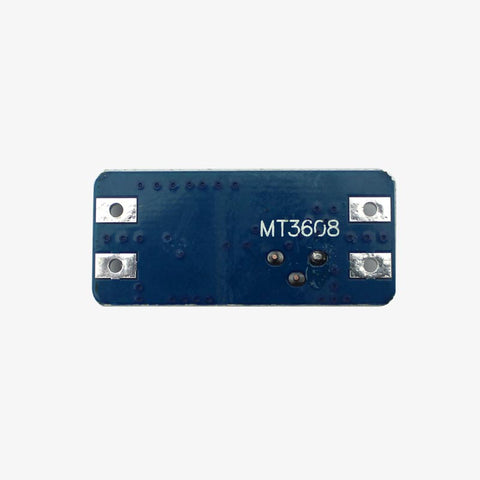

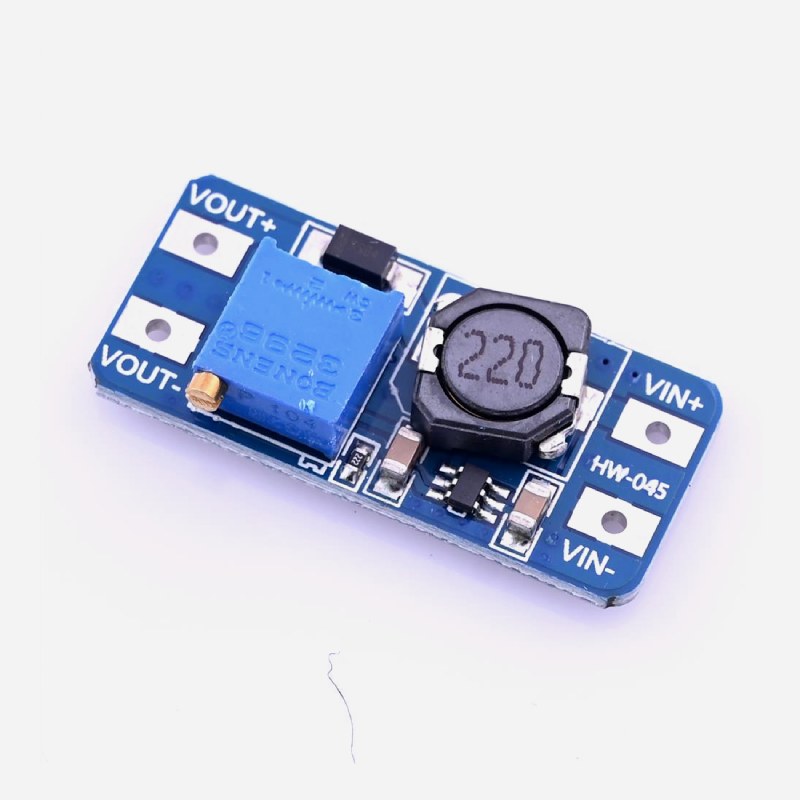

MT3608 2A DC-DC Step Up (Boost) Power Module MT3608 2A DC-DC Step Up (Boost) Power Module

QC0470

2 In stock

Rs. 76.00
-
+
Rs. 76.00
(inc. GST)

Voltage levels in AC can be changed much easier than in case of DC and with much more efficiency, it was one of the deciding factors in war of Currents between Edison and Tesla. Well its not the case now you can change the voltage levels in DC with efficiency as high as 93% with this MT3608 DC-DC boost converter. The module takes low voltage DC input at higher current and outputs the higher DC voltage with less current. It can provide output ranging from 5V-26V at maximum output current of 2A and at most settings 1A output continuous current is available at most of the voltage levels. It can be used in small DC motors where High voltage is required and you must power them with the battery, changing logic levels, in consumer electronic products etc.

Specifications

  • Input Voltage Range: 3VDC to 24VDC
  • Efficiency upto 93%
  • Output Voltage Range: 5VDC to 26 VDC
  • Inexpensive and provide high current
  • Simple to adjust the output Voltage
  • Maximum Output current 2A

Product Description

MT3608 2A Max DC-DC Step Up Power Module

To incorporate this module in your system you need to connect the input DC wires to respective input terminals on the board and take the output from the Output terminals. If you need to change the output voltage, you can do that by using the variable resistor knob given on the board.

Package Contents

1×MT3608 2A DC-DC Step Up Power Module

Voltage levels in AC can be changed much easier than in case of DC and with much more efficiency, it was one of the deciding factors in war of Currents between Edison and Tesla. Well its not the case now you can change the voltage levels in DC with efficiency as high as 93% with this MT3608 DC-DC boost converter. The module takes low voltage DC input at higher current and outputs the higher DC voltage with less current. It can provide output ranging from 5V-26V at maximum output current of 2A and at most settings 1A output continuous current is available at most of the voltage levels. It can be used in small DC motors where High voltage is required and you must power them with the battery, changing logic levels, in consumer electronic products etc.

Specifications

  • Input Voltage Range: 3VDC to 24VDC
  • Efficiency upto 93%
  • Output Voltage Range: 5VDC to 26 VDC
  • Inexpensive and provide high current
  • Simple to adjust the output Voltage
  • Maximum Output current 2A

Product Description

MT3608 2A Max DC-DC Step Up Power Module

To incorporate this module in your system you need to connect the input DC wires to respective input terminals on the board and take the output from the Output terminals. If you need to change the output voltage, you can do that by using the variable resistor knob given on the board.

Package Contents

1×MT3608 2A DC-DC Step Up Power Module
