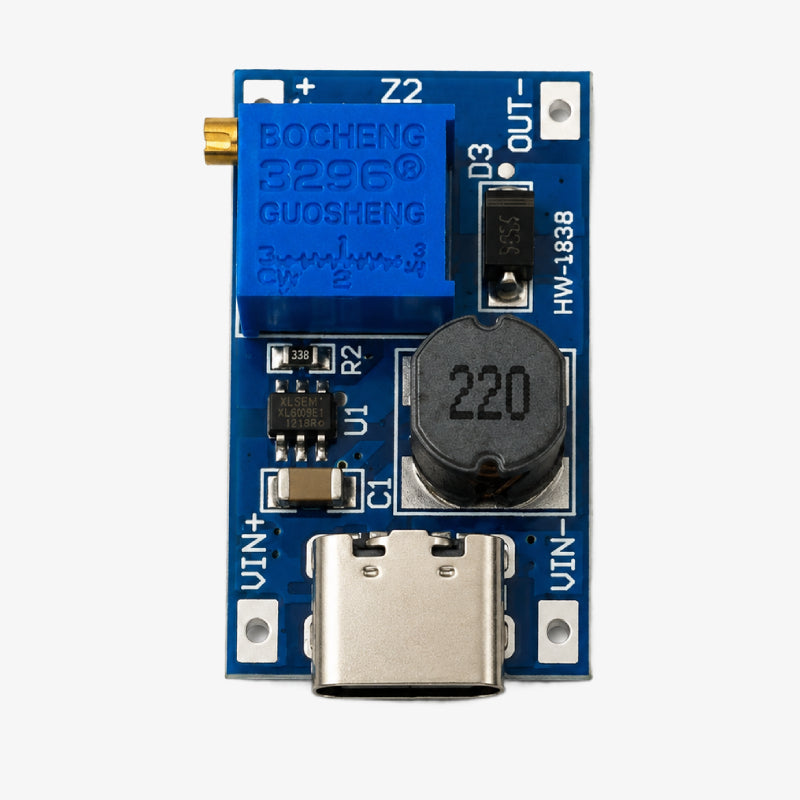

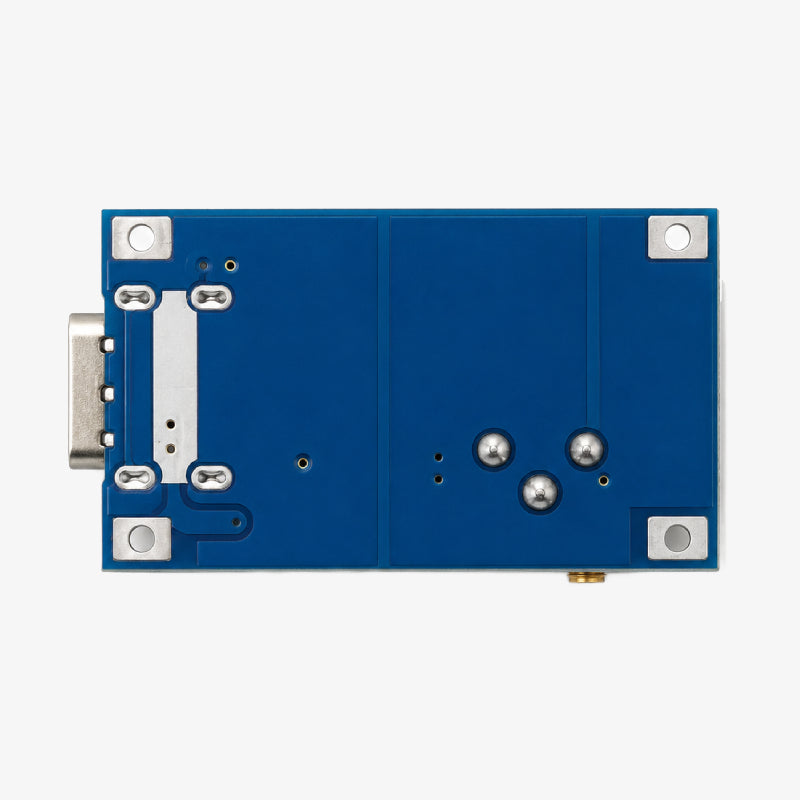

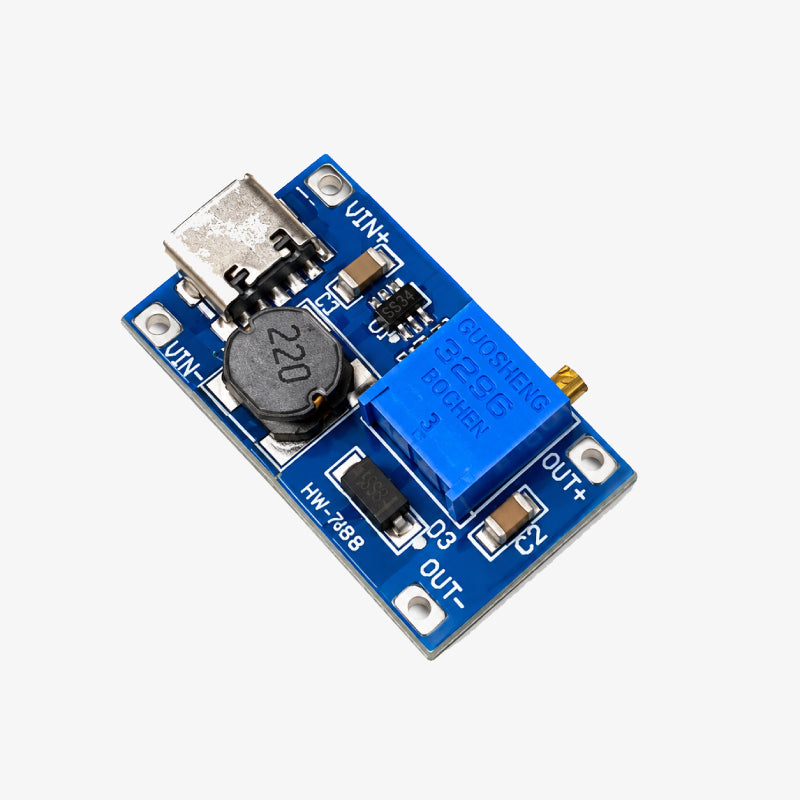

Type-C MT3608 2A DC-DC Step Up Boost Converter Module
SKU:
MOD-QC6191
Availability:
466
In Stock
-
- Rs. 35.00
- Unit price
- per
Subtotal:
Rs. 35.00
Description
xMT3608 2A DC-DC Step-Up Boost Converter Module is a compact adjustable DC-DC boost converter module designed to increase a lower DC input voltage to a higher regulated output voltage. Based on the MT3608 high-efficiency boost converter, it accepts a 2 V to 24 V DC input and provides an adjustable output of approximately 5 V to 28 V, with up to 2 A peak output capability depending on input/output voltage conditions. It is suitable for Arduino and microcontroller projects, battery-powered electronics, robotics, IoT devices, and general-purpose power conversion.
Features:
- Adjustable DC-DC step-up boost conversion.
- 2 V to 24 V DC input voltage range.
- Adjustable output voltage up to approximately 28 V.
- Up to 2 A peak output capability.
- High conversion efficiency, up to approximately 93%.
- 1.2 MHz switching frequency.
- On-board potentiometer for output voltage adjustment.
- Compact PCB design.
- Suitable for battery-powered and embedded electronics.
- Useful for Arduino, ESP32, robotics, IoT, and DIY power-supply applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | DC-DC Step-Up / Boost Converter Module |
| Converter IC | MT3608 |
| Input Voltage | 2 V to 24 V DC |
| Output Voltage | Adjustable, up to 28 V |
| Output Current | Up to 2 A Peak |
| Switching Frequency | 1.2 MHz |
| Typical Efficiency | Up to 93% |
| Output Adjustment | On-board Potentiometer |
| Topology | Boost / Step-Up |
| Input Type | DC |
| Output Type | Regulated DC |
| Module Dimensions | Approx. 36 × 17 × 14 mm |
| Mounting Type | PCB |
Pin Configuration:
| Pin | Name | Description |
|---|---|---|
| 1 | VIN+ | Positive DC Input |
| 2 | VIN− | Negative DC Input / Ground |
| 3 | VOUT+ | Positive DC Output |
| 4 | VOUT− | Negative DC Output / Ground |
Also Check These Out:
Type-C 3S 12.6V Multi-Cell Step-Up Boost Lithium Battery Charger Module
Type-C 4S 16.8V Multi-Cell Step-Up Boost Lithium Battery Charger Module
LM2577S Adjustable DC-DC Boost Power Module
Package Includes:
1 × MT3608 2A DC-DC Step-Up Boost Converter Module
