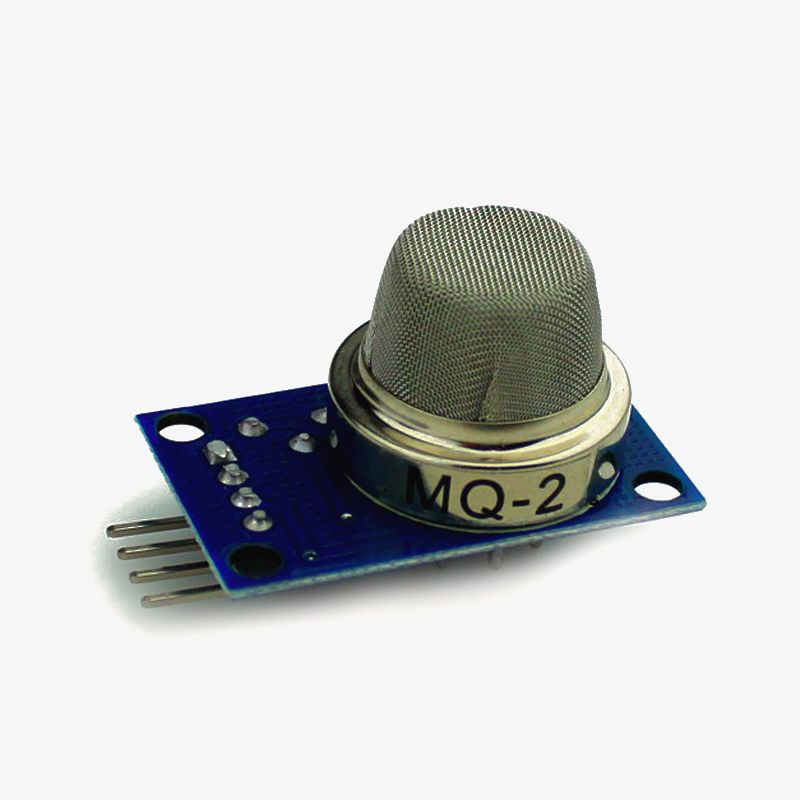

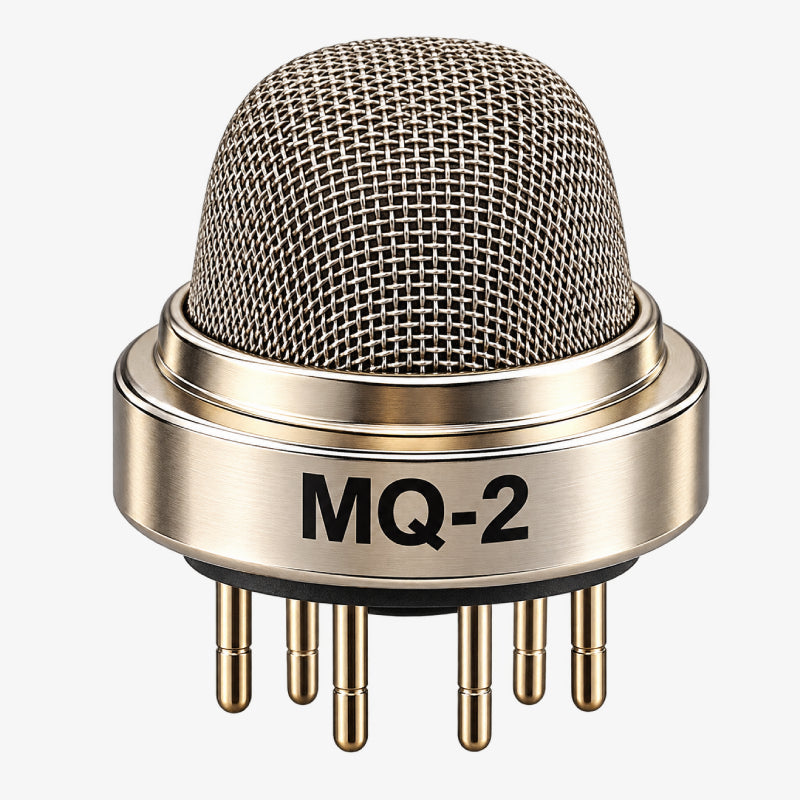

MQ-2 Smoke LPG Butane Hydrogen Gas Sensor
SKU:
MOD-QC1226
Availability:
476
In Stock
-
Rs. 92.00- Rs. 82.00
- Unit price
- per
Subtotal:
Rs. 82.00
Description
xMQ-2 Smoke LPG Butane Hydrogen Gas Sensor Module is a semiconductor gas sensor module designed to detect combustible gases and smoke. It uses an SnO₂ sensing element and provides both analog and digital outputs, making it suitable for connection to Arduino, microcontroller, and other development platforms. The MQ-2 is sensitive to LPG, propane, butane, methane, hydrogen, alcohol, and smoke, with the sensor's strongest documented detection ranges covering LPG/propane, butane, methane, hydrogen, and alcohol.
MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Datasheet
Features:
- MQ-2 semiconductor gas sensing element
- SnO₂-based gas sensing material
- Detects LPG and propane
- Detects butane
- Detects methane
- Detects hydrogen
- Detects smoke
- Provides analog output
- Provides digital threshold output on module versions
- Adjustable digital detection threshold
- 5V heater operation
- Suitable for Arduino and microcontroller projects
- Suitable for gas leakage detection systems
- Suitable for smoke and fire detection projects
- Suitable for industrial and domestic combustible-gas detection
Specifications:
| Specification | Value |
|---|---|
| Product Type | Gas Sensor Module |
| Sensor Model | MQ-2 |
| Sensor Type | Semiconductor |
| Sensing Material | SnO₂ |
| Target Gases | LPG, Propane, Butane, Methane, Hydrogen, Alcohol, Smoke |
| Detection Range – LPG/Propane | 200–5000ppm |
| Detection Range – Butane | 300–5000ppm |
| Detection Range – Methane | 5000–20000ppm |
| Detection Range – Hydrogen | 300–5000ppm |
| Detection Range – Alcohol | 100–2000ppm |
| Heater Voltage | 5V ± 0.1V AC/DC |
| Heater Resistance | 33Ω ± 5% |
| Heater Consumption | <800mW |
| Operating Temperature | -20°C to +50°C |
| Load Resistance | Adjustable |
Pin Configuration:
| Pin | Name | Function |
|---|---|---|
| 1 | VCC | Positive Supply |
| 2 | GND | Ground |
| 3 | AOUT | Analog Gas Sensor Output |
| 4 | DOUT | Digital Threshold Output |
| 5 | breakout | Heater |
| 6 | breakout | Sensing Electrode |
Also Check These Products:-
B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector
Analog TDS Water Quality Meter V1.0 Sensor for Arduino
Elecrow Crowtail Capacitive Moisture Sensor V2.0 for Arduino & IoT
FSR402 Force Sensing Resistors 14.7mm Round Pressure Sensor 0.5 Inch
Package Includes:
1 × MQ-2 Smoke LPG Butane Hydrogen Gas Sensor Module
