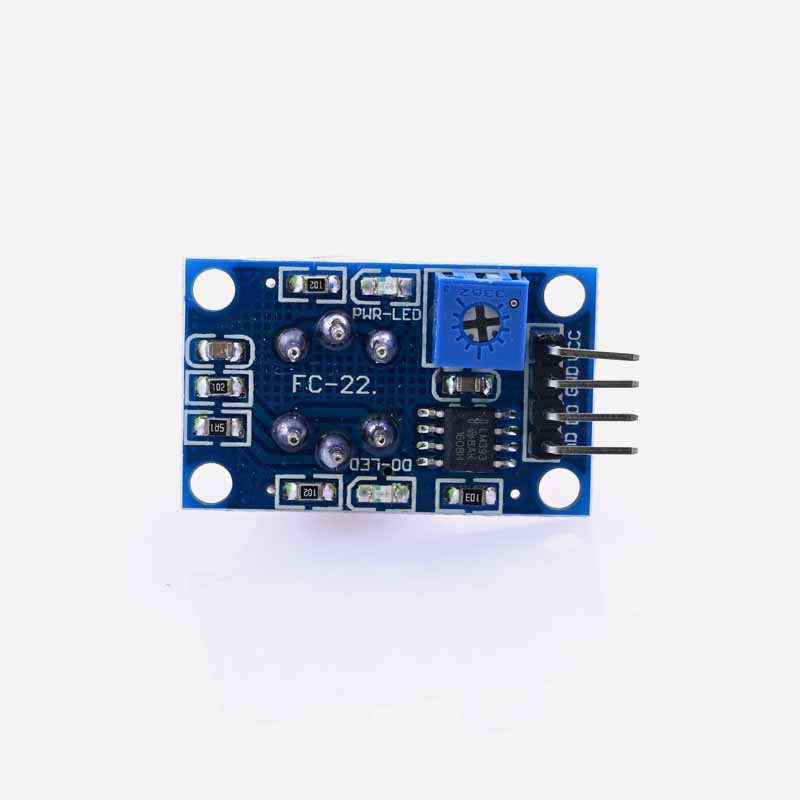

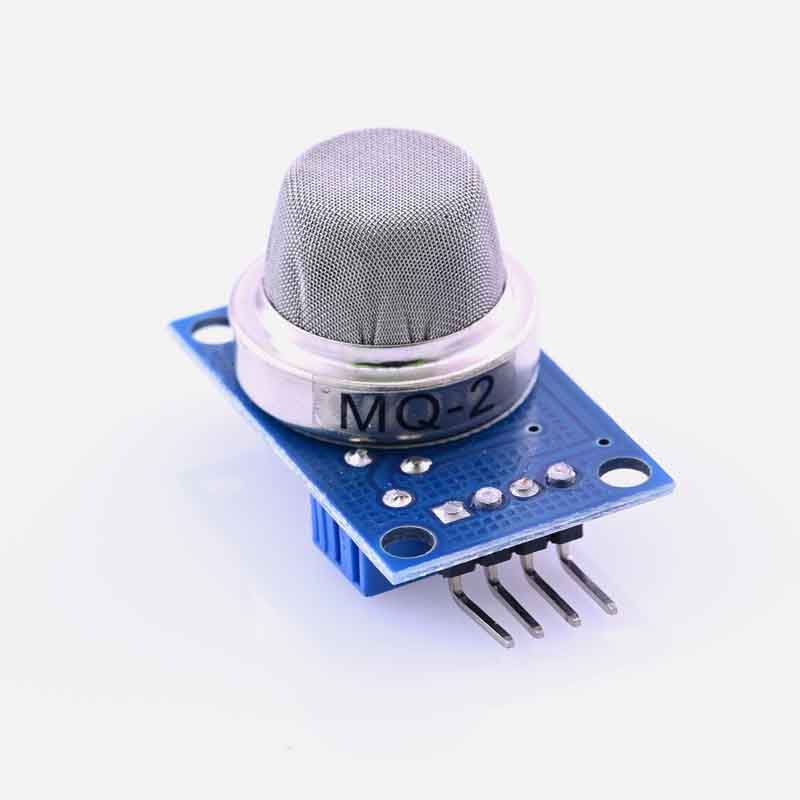

MQ2 Gas Sensor Module MQ2 Gas Sensor Module

QC0271

9 In stock

Rs. 124.00
-
+
Rs. 124.00
(inc. GST)

MQ2 Gas sensor is a Metal Oxide Semiconductor (MOS) type Gas Sensor mainly used to detect gases like Methane, Butane, LPG, Smoke, etc. It is also known as Chemiresistors as the gas detection is based on the change of resistance of the sensing material when the Gas comes in to contact.

MQ2 Gas sensor works on 5V DC and uses around 800mW. It can detect LPG, Smoke, Alcohol, Propane, Hydrogen, Methane and Carbon Monoxide concentrations in a range of 200 to 10000 ppm.

MQ2 Gas Sensor Features & Specs

  • Operating Voltage is +5V
  • Analog output voltage: 0V to 5V
  • Digital Output Voltage: 0V or 5V (TTL Logic)
  • Preheat duration 20 seconds
  • Can be used as a Digital or analog sensor
  • The Sensitivity of Digital pin can be varied using the potentiometer

MQ2 Gas Sensor Module Pinout Configuration

Pin No

Pin Name

Description

1

Vcc

This pin powers the module, typically the operating voltage is +5V

2

Ground

Used to connect the module to system ground

3

Digital Out

You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer

4

Analog Out

This pin outputs 0-5V analog voltage based on the intensity of the gas

MQ2 Gas sensor is a Metal Oxide Semiconductor (MOS) type Gas Sensor mainly used to detect gases like Methane, Butane, LPG, Smoke, etc. It is also known as Chemiresistors as the gas detection is based on the change of resistance of the sensing material when the Gas comes in to contact.

MQ2 Gas sensor works on 5V DC and uses around 800mW. It can detect LPG, Smoke, Alcohol, Propane, Hydrogen, Methane and Carbon Monoxide concentrations in a range of 200 to 10000 ppm.

MQ2 Gas Sensor Features & Specs

  • Operating Voltage is +5V
  • Analog output voltage: 0V to 5V
  • Digital Output Voltage: 0V or 5V (TTL Logic)
  • Preheat duration 20 seconds
  • Can be used as a Digital or analog sensor
  • The Sensitivity of Digital pin can be varied using the potentiometer

MQ2 Gas Sensor Module Pinout Configuration

Pin No

Pin Name

Description

1

Vcc

This pin powers the module, typically the operating voltage is +5V

2

Ground

Used to connect the module to system ground

3

Digital Out

You can also use this sensor to get digital output from this pin, by setting a threshold value using the potentiometer

4

Analog Out

This pin outputs 0-5V analog voltage based on the intensity of the gas
