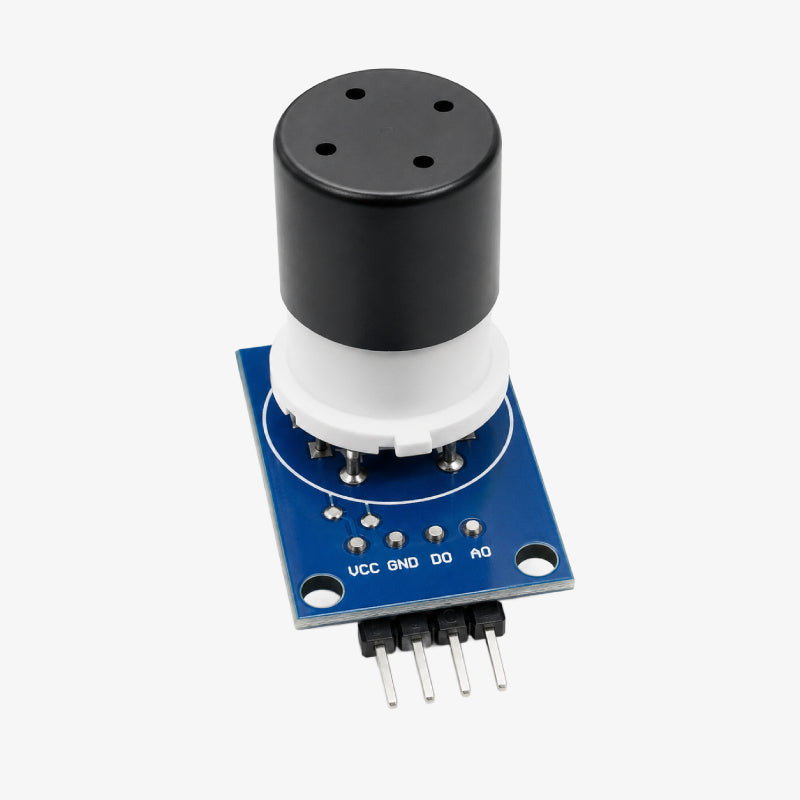

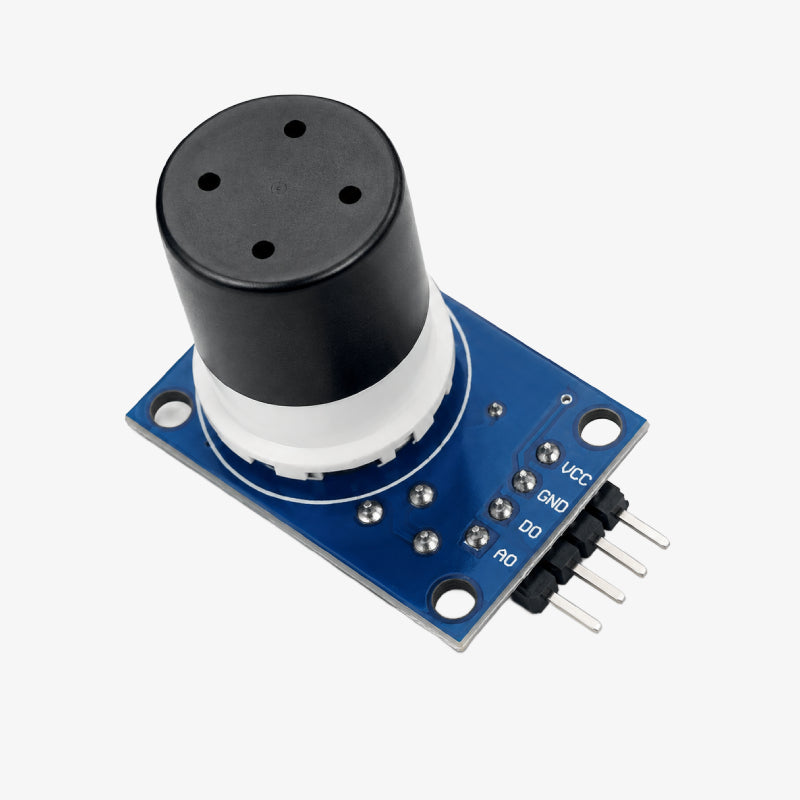

MQ-131 Ozone Gas Detection Sensor Module
SKU:
MOD-QC6202
Availability:
1
In Stock
-
- Rs. 1,468.00
- Unit price
- per
Subtotal:
Rs. 1,468.00
Description
xMQ-131 Ozone Gas Detection Sensor Module is a semiconductor gas sensor module designed to detect ozone (O₃) concentration in the air. It uses a tin dioxide (SnO₂) sensing element whose conductivity changes in the presence of ozone, allowing the module to detect changes in ozone concentration. The module provides an analog output and an adjustable digital output, making it suitable for Arduino, Raspberry Pi, air-quality monitoring, ozone generator monitoring, environmental sensing, and DIY gas-detection projects.
MQ-131 Ozone Gas Detection Sensor Module Datasheet
Features:
- Designed for ozone (O₃) gas detection.
- Uses a tin dioxide (SnO₂) semiconductor sensing element.
- High sensitivity to ozone gas.
- Available in low-concentration and high-concentration MQ-131 variants.
- Analog output for monitoring ozone concentration.
- Digital output with adjustable detection threshold.

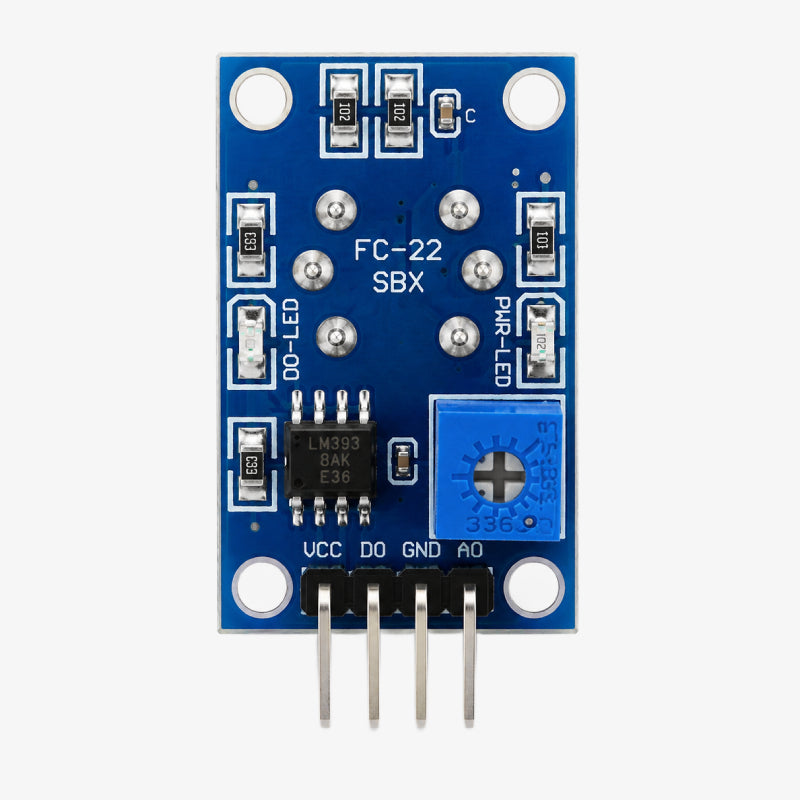

- Onboard potentiometer for digital output sensitivity adjustment.
- 5V DC operating voltage for typical module configurations.
- Fast response to changes in ozone concentration.
- Requires sensor preheating for stable measurements.
- Suitable for Arduino, Raspberry Pi, ESP32, and other microcontroller projects.
- Useful for air-quality and environmental monitoring.
- Suitable for monitoring ozone generators and ozone-producing equipment.
- Compact PCB module design.
- Suitable for DIY, laboratory, and educational gas-sensing applications.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Ozone Gas Detection Sensor Module |
| Model | MQ-131 |
| Sensor Type | Semiconductor Gas Sensor |
| Target Gas | Ozone (O₃) |
| Sensitive Material | Tin Dioxide (SnO₂) |
| Low-Concentration Detection Range | 10ppb–1000ppb O₃ |
| High-Concentration Detection Range | 10ppm–1000ppm O₃ |
| Module Supply Voltage | 5V DC |
| Sensor Circuit Voltage | 5.0V ± 0.1V DC |
| Heater Voltage | 5.0V ± 0.1V AC/DC |
| Heater Resistance | Approx. 30–34Ω |
| Heater Consumption | ≤800–950mW |
| Output Type | Analog + Digital |
| Analog Output | Variable Voltage |
| Digital Output | TTL Level |
| Digital Threshold | Adjustable |
| Load Resistance | Adjustable |
| Low-Concentration Sensitivity | Rs(200ppb O₃) / Rs(in air) ≥2 |
| High-Concentration Sensitivity | Rs(200ppm O₃) / Rs(in air) ≥2 |
| Standard Test Temperature | 20°C ± 2°C |
| Standard Test Humidity | 55% ± 5% RH |
| Required Oxygen Concentration | ≥18% |
| Recommended Oxygen Concentration | 21% |
| Preheating Time | More than 48 Hours |
| Sensor Life | Approx. 5 Years* |
| Operating Temperature | Approx. -10°C to 50°C* |
| Operating Humidity | Up to 95% RH* |
| Interface | Analog / Digital |
| Mounting Type | PCB |
| Compatible Platforms | Arduino, Raspberry Pi, ESP32 & Microcontrollers |
| Application | Ozone Detection & Air-Quality Monitoring |
Also Check These Out:
B3950 10K NTC Thermistor Temperature Sensor 5*25mm with XH2.54 Connector
Analog TDS Water Quality Meter V1.0 Sensor for Arduino
Elecrow Crowtail Capacitive Moisture Sensor V2.0 for Arduino & IoT
FSR402 Force Sensing Resistors 14.7mm Round Pressure Sensor 0.5 Inch
Package Includes:
1 × MQ-131 Ozone Gas Detection Sensor Module
