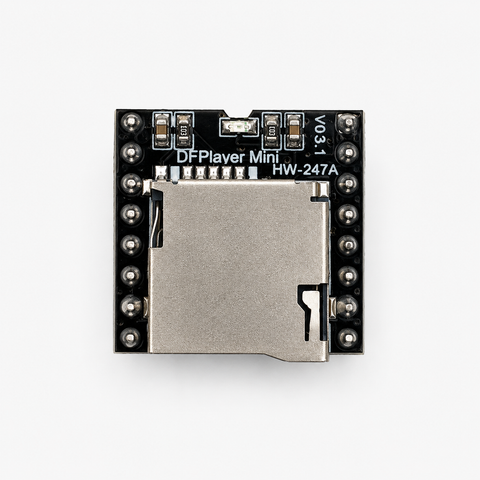

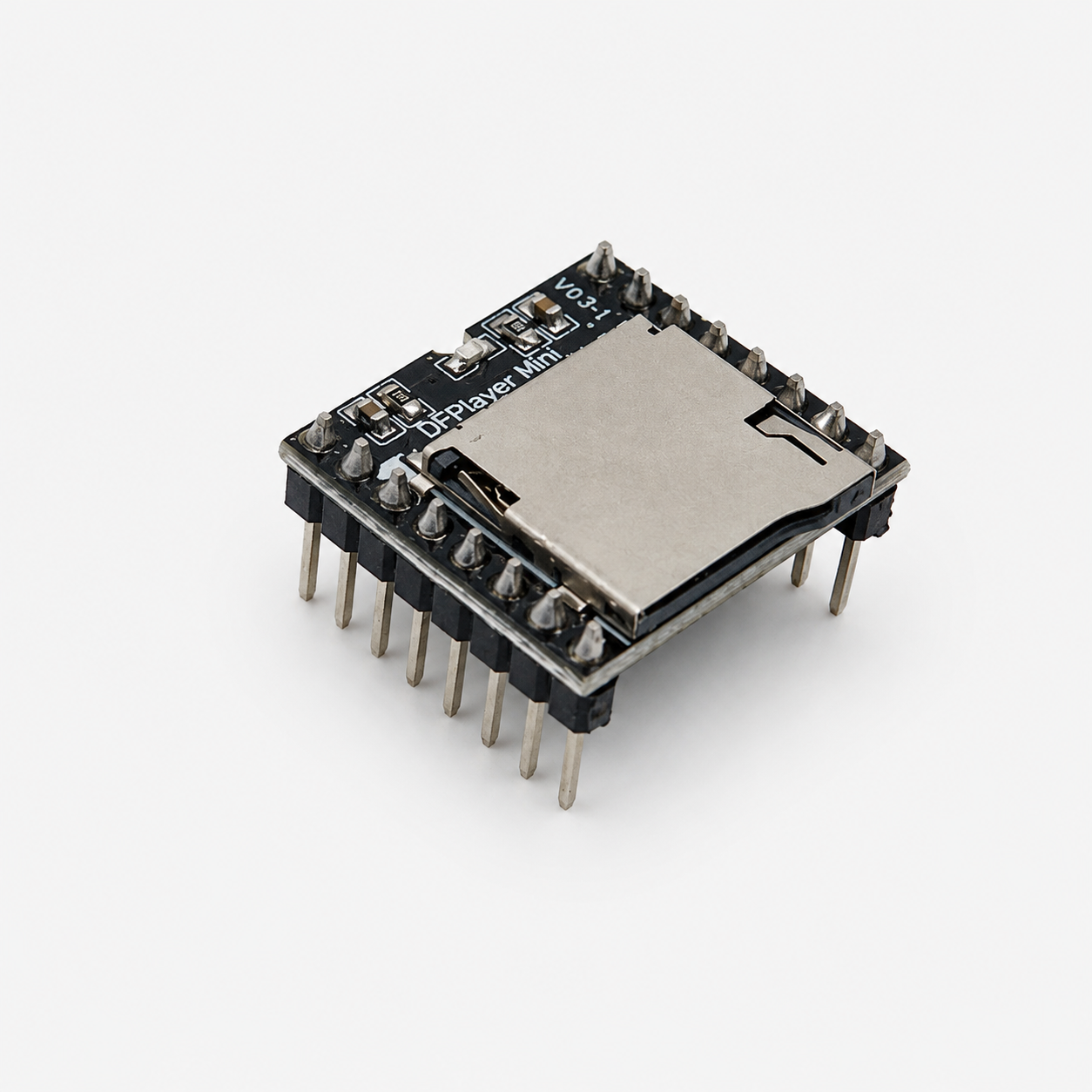

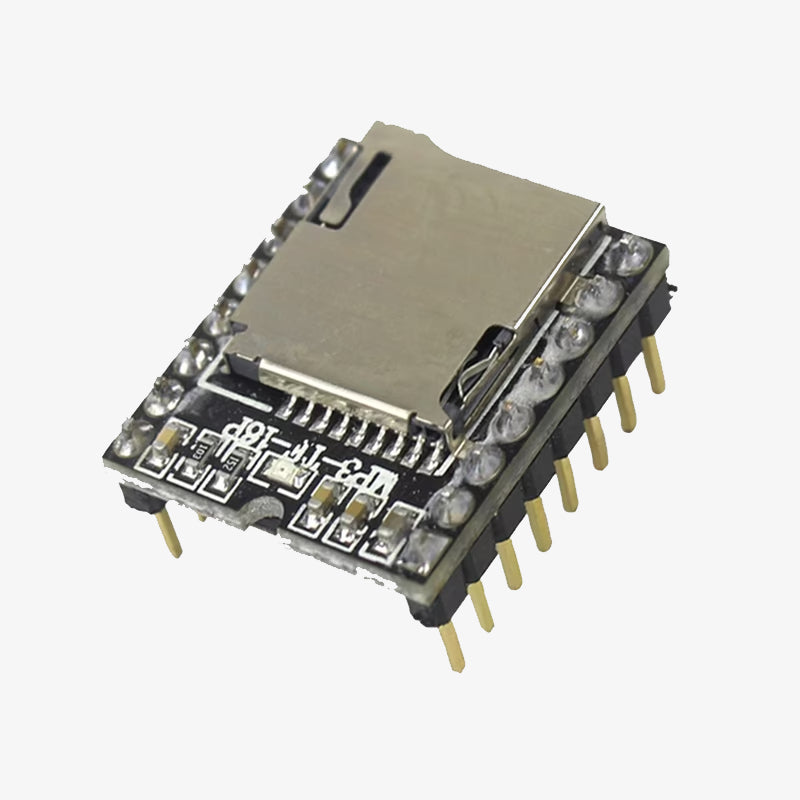

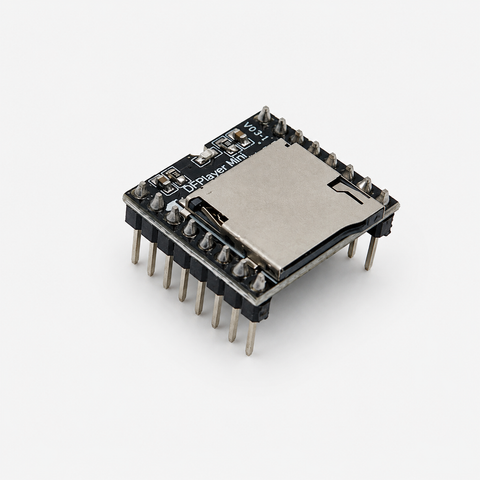

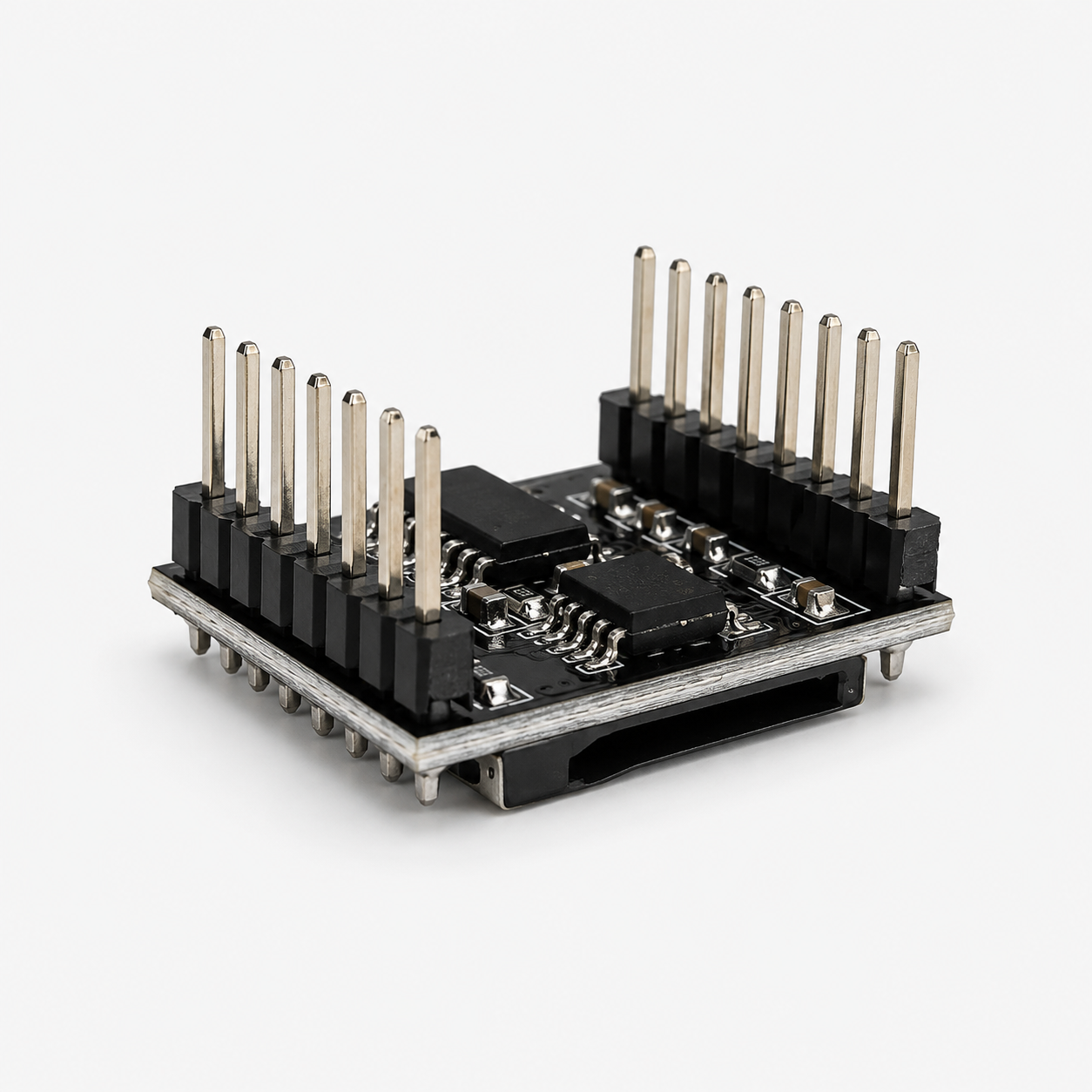

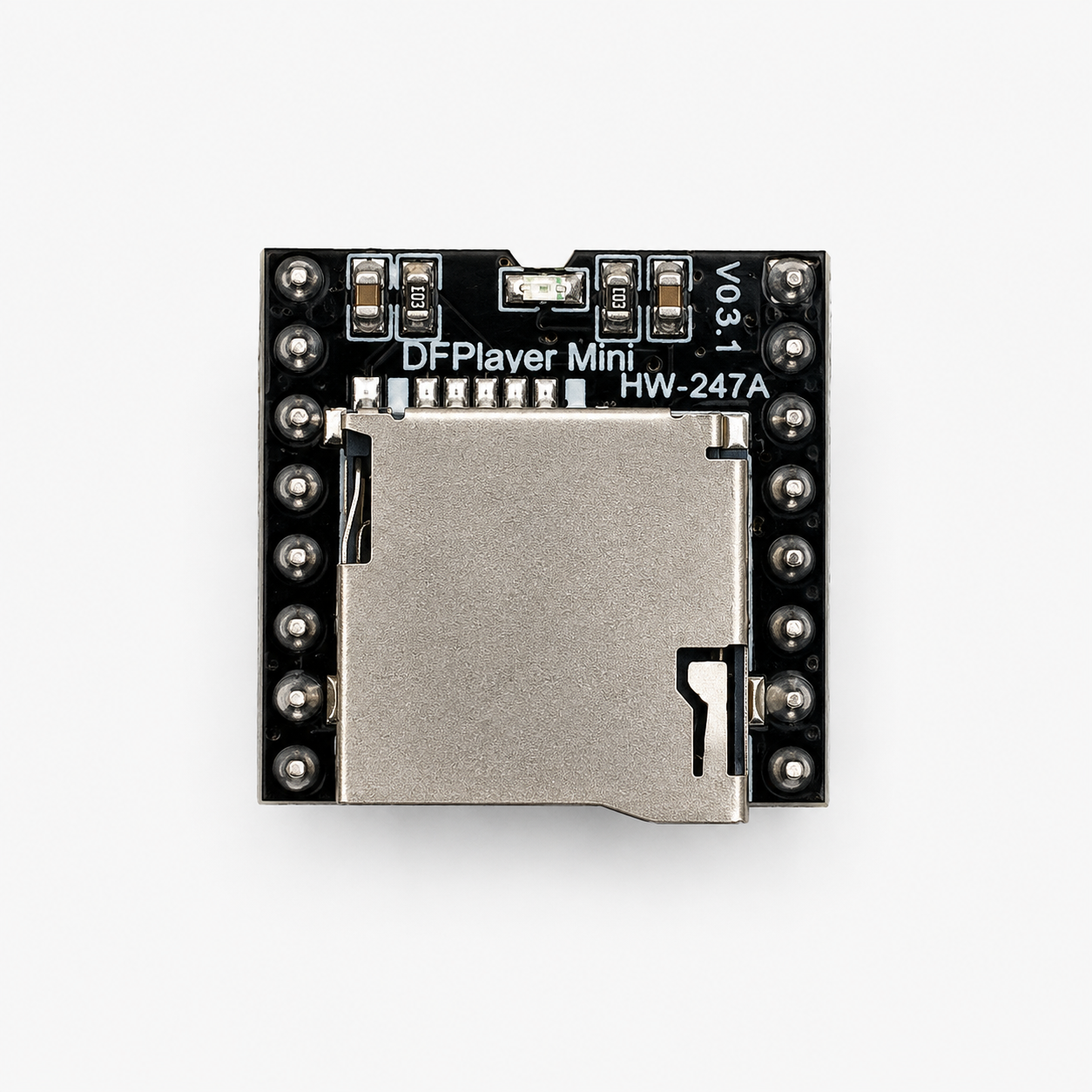

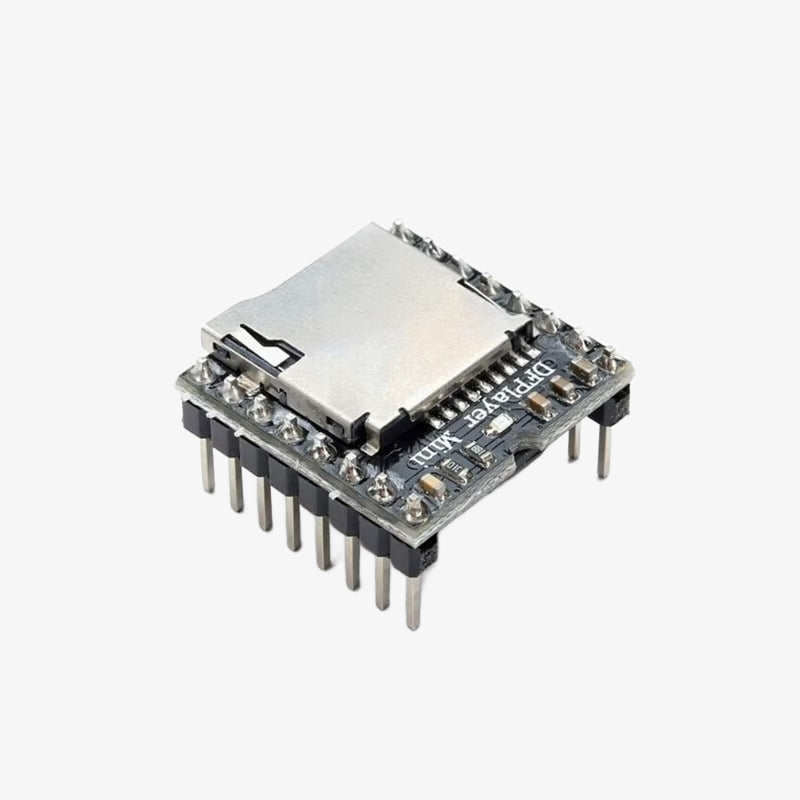

MP3-TF-16P MP3 SD Card Module with Serial Port is designed for embedded audio playback applications with support for TF cards, USB drives, and serial communication control. Ideal for voice prompts, DIY audio projects, smart devices, and automation systems.
| Parameter | Value |
|---|---|
| Model | MP3-TF-16P |
| Product Type | MP3 Audio Module |
| Operating Voltage | 3.2V – 5V |
| DAC Resolution | 24-bit |
| Signal-to-Noise Ratio | 85 dB |
| Supported Sampling Rates | 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 KHz |
| Dynamic Range | 90 dB |
| Storage Support | TF Card / USB Disk |
| Maximum TF Card Support | 32GB |
| File System Support | FAT16 / FAT32 |
| Control Modes | IO / Serial / AD Key |
| Operating Temperature | -40°C to +70°C |
| Humidity Range | 5% – 95% |
| Length | 21 mm |
| Width | 21 mm |
| Weight | 5 g |
Also Check These Out:-
DY-SV 5W Voice Module WAV MP3 Audio Playback Board with Serial Control
VS1053 MP3 Recording Development Board Module for Arduino Uno
TF Card U Disk MP3 Format Decoder Board Module Audio Player
1 x MP3-TF-16P SD Card Module with Serial Port
