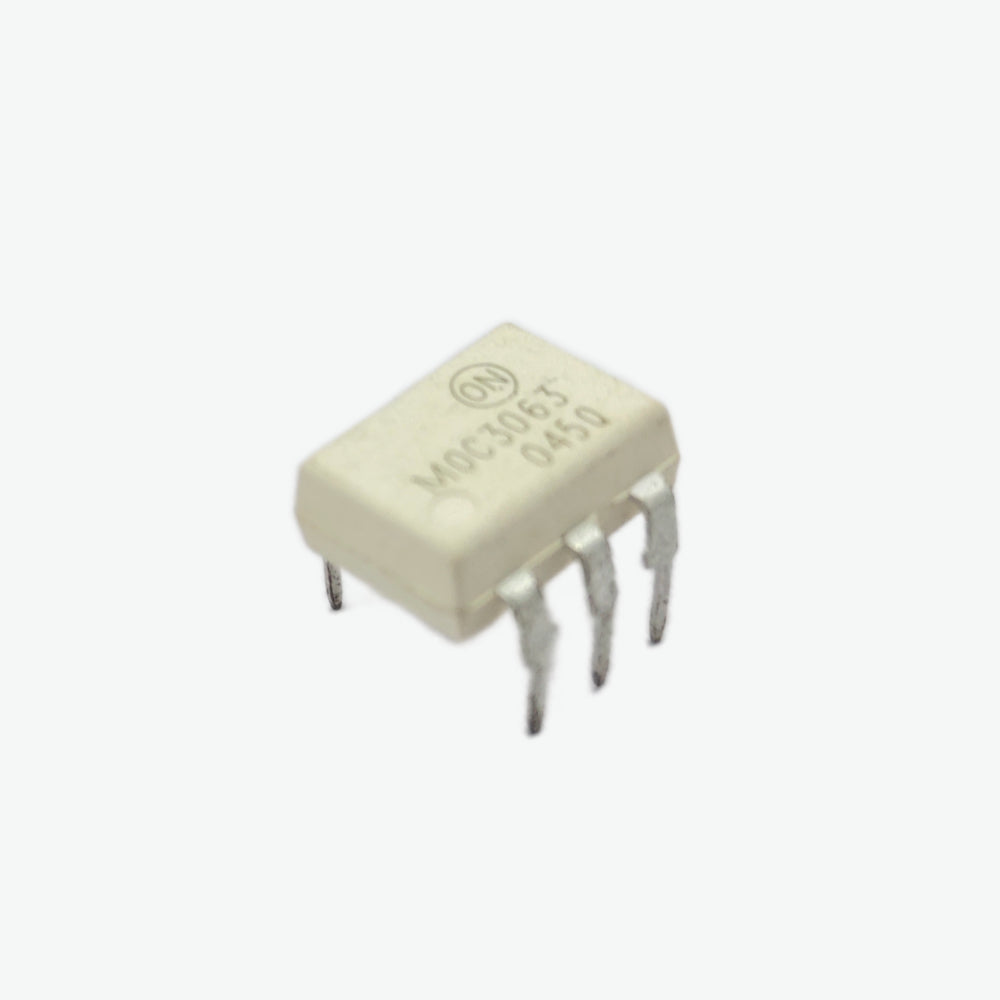

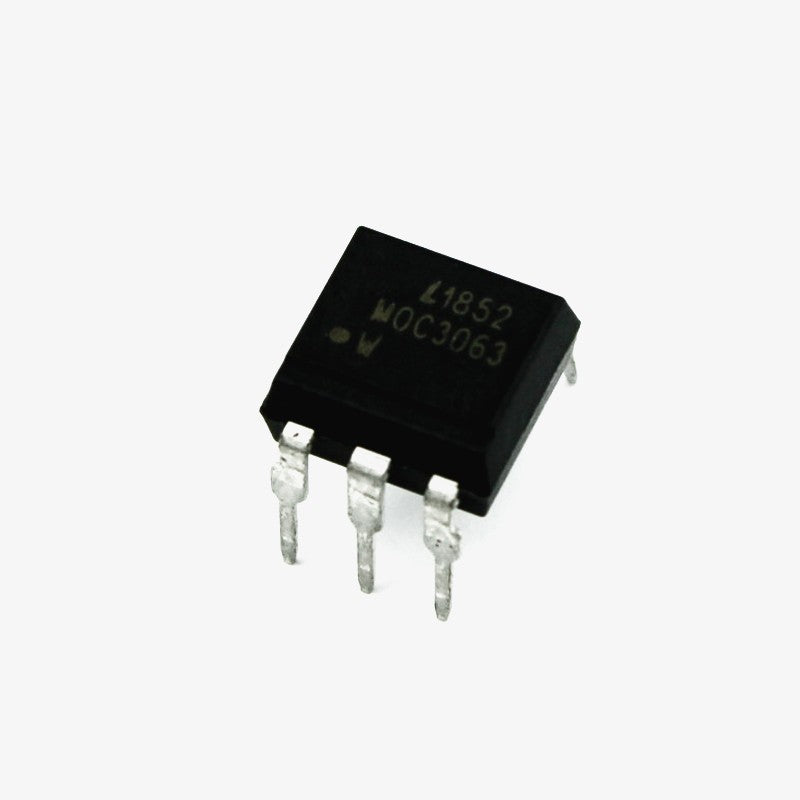

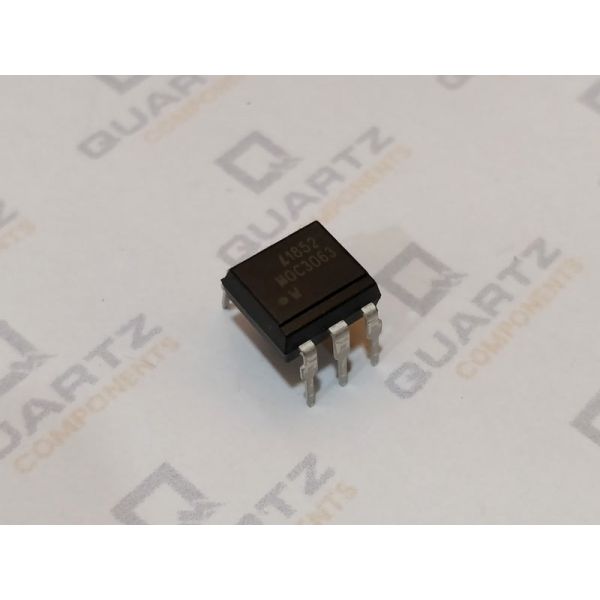

MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC

QC0097

54 In stock

Rs. 28.00
-
+
Rs. 28.00
(inc. GST)
[Delivery: 2 to 5 days]

The MOC3063 IC is a 6-pin optocoupler that has an IR LED input coupled to a TRIAC output with a Zero-Crossing option. This IC is designed to drive and to provide AC isolation to logic systems and equipment powered from 115/240 VAC lines.


Product Description of MOC3063 Zero Cross Triac Optocoupler

MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC



Features of MOC3063 Zero Cross Triac Optocoupler

  • Simplifies logic control of 115/240 VAC power
  • Zero voltage crossing
  • Input IR Diode: Forward Current - 50mA; Reverse Voltage - 6V;  Power Dissipation-  120mW
  • Output Photo TRIAC: Off-State Output Terminal Voltage - 600V ; Forward Current (Peak) - 1A; Power Dissipation - 150mW
  • High Isolation Voltage (5.3kV RMS,7.5kVPK )
  • 5mA Trigger Current
  • Operating Temperature: -40°C to 100 °C



Additional Resources

Package Contents

1 x MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC

The MOC3063 IC is a 6-pin optocoupler that has an IR LED input coupled to a TRIAC output with a Zero-Crossing option. This IC is designed to drive and to provide AC isolation to logic systems and equipment powered from 115/240 VAC lines.


Product Description of MOC3063 Zero Cross Triac Optocoupler

MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC



Features of MOC3063 Zero Cross Triac Optocoupler

  • Simplifies logic control of 115/240 VAC power
  • Zero voltage crossing
  • Input IR Diode: Forward Current - 50mA; Reverse Voltage - 6V;  Power Dissipation-  120mW
  • Output Photo TRIAC: Off-State Output Terminal Voltage - 600V ; Forward Current (Peak) - 1A; Power Dissipation - 150mW
  • High Isolation Voltage (5.3kV RMS,7.5kVPK )
  • 5mA Trigger Current
  • Operating Temperature: -40°C to 100 °C



Additional Resources

Package Contents

1 x MOC3063 Zero Cross Triac Optocoupler/Opto-Isolator IC
