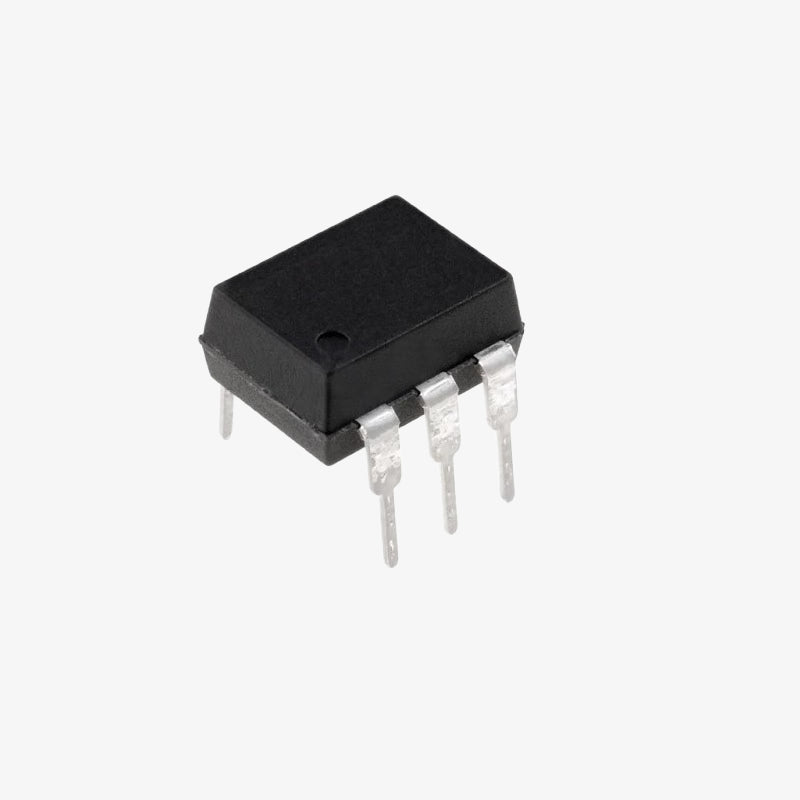

MOC3052 Optoisolator Triac Driver Optocoupler IC - DIP-6 Package

Brand: GENERIC
SKU: CMP-QC6274
Availability: 100 In Stock
Rs. 32.00
Subtotal: Rs. 32.00
Description
Description
x

MOC3052 Optoisolator Triac Driver Optocoupler IC - DIP-6 Package is a random-phase optoisolator featuring an infrared LED input optically coupled to a bilateral TRIAC output. Unlike zero-crossing optocouplers, it can trigger at any point of the AC waveform, making it suitable for phase-control circuits. It provides electrical isolation between low-voltage control electronics and AC load circuits and supports a 600V peak blocking voltage.

Features:

  1. MOC3052 random-phase TRIAC driver optocoupler
  2. Single-channel configuration
  3. Infrared LED input
  4. Bilateral TRIAC output
  5. Non-zero-crossing operation
  6. 600V peak blocking voltage
  7. 5000Vrms isolation voltage
  8. LED trigger current up to 10mA
  9. High static dv/dt capability
  10. Through-hole DIP-6 package
  11. Suitable for AC phase-control circuits
  12. RoHS-compliant versions available

Specifications:

Specification Value
Product Type TRIAC Driver Optocoupler
Part Number MOC3052
Number of Channels 1
Input Type Infrared LED
Output Type Photo-TRIAC
Trigger Type Random Phase
Zero-Crossing Circuit No
Peak Blocking Voltage 600V
Isolation Voltage 5000Vrms
LED Forward Voltage 1.2V typical
LED Forward Current 50mA maximum
LED Trigger Current 10mA maximum
Holding Current 400µA typical
Static dV/dt 1kV/µs minimum
Peak Repetitive Surge Current 1A
Operating Temperature -40°C to +100°C
Mounting Type Through Hole
Package DIP-6 / PDIP-6
Number of Pins 6
Package Width 7.62 mm

Pin Diagram:-

Also Check These Products:-

AN7112 Audio Power Amplifier IC

TDA2822M Amplifier IC

HT12D (RF Decoder) IC

Package Includes:

1 × MOC3052 Optoisolator Triac Driver Optocoupler IC - DIP-6 Package
